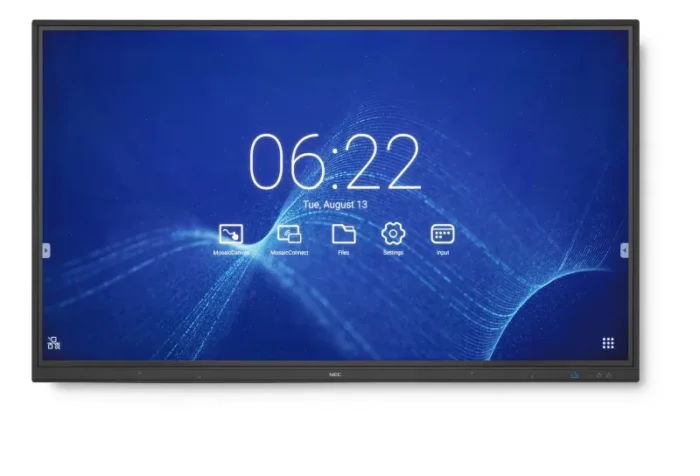

NEC CB651Q interactive whiteboard 165.1 cm (65″) 3840 x 2160 pixels Touchscreen Black
- Out-of-the-box collaboration – thanks to embedded computing with built-in annotation tools and wireless presentation capabilities
- Multi-Touch – true multi-touch support with up to 20 simultaneous touch points
- Protective Glass – premium toughened glass protects the security of the panel yet delivers a perfect touch experience with anti-glare coating to minimise reflections and fingerprints
- Simple operation – with easy front access to USB ports and controls for major functionalities
- Ease of Use – enhance the display with an optional “Windows based” Slot-in-PC using the integrated Ultra High Resolution OPS option slot, thereby simplifying installations and reducing the points of failure
- Cost Saving Device Management – save effort whilst managing all connected NEC devices from a centralised location by using the NaViSet Administrator 2 software tool
Enter a world of interactive white-boarding

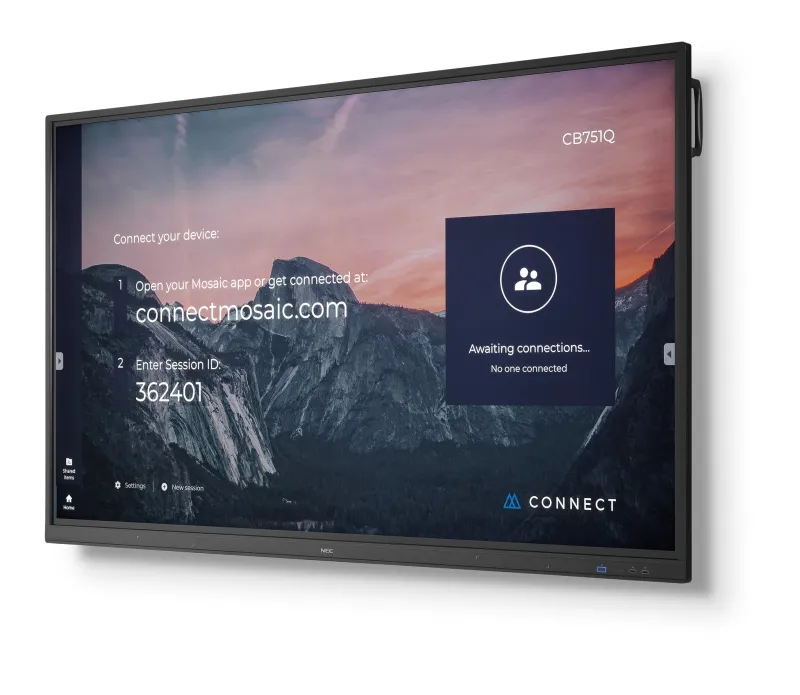

Upgrade your lectures and meetings with NEC’s all-in-one collaboration boards, in three different sizes, featuring UHD resolution and up to 20 touch points. Based on infrared touch technology the user experiences perfect usability with a rapid touch response. Business and educational sessions start-up instantly with built-in whiteboard and wireless screen sharing functionalities without any hidden costs. The embedded annotation tool lets you annotate over any content shown on the screen.
For more demanding applications, the OPS slot provides the opportunity to enhance the computing power. With sizes including 65’’, 75’’ and 86’’, the NEC CB Series offers the ideal solution for your meeting and class rooms.

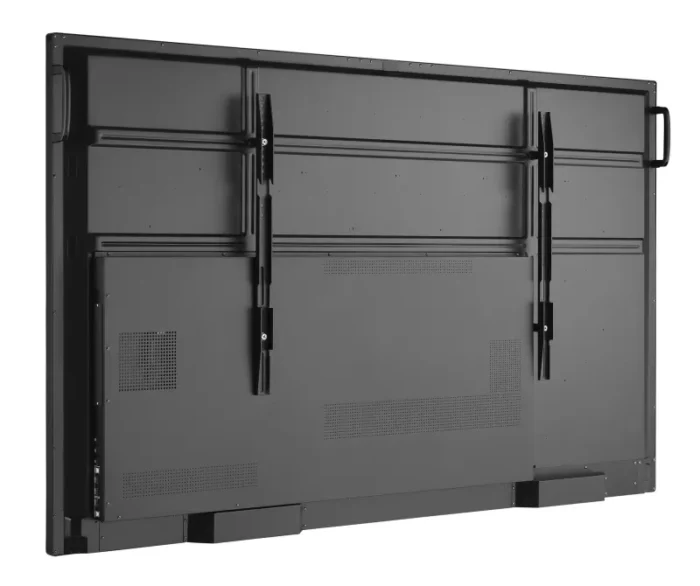

All NEC CB Series displays come with three magnetic pens and a wall-mount fitting for easy installation.
| Display | |
|---|---|
| Working area | 1428.5 x 803.5 mm |
| Horizontal scan range | 26 – 135 kHz |
| Vertical scan range | 23 – 86 Hz |
| Pixel pitch | 0.372 x 0.372 mm |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Number of simultaneous touchpoints | 20 |
| Touch technology | Multi-touch |
| Touchscreen | Yes |
| Response time | 9 ms |
| Contrast ratio (typical) | 1200:1 |
| LED backlighting type | Direct-LED |
| Panel type | IPS |
| HD type | 4K Ultra HD |
| Display resolution | 3840 x 2160 pixels |
| Display number of colours | 1.073 billion colours |
| Display brightness | 350 cd/m² |
| Display diagonal | 165.1 cm (65″) |
| Computer system | |
|---|---|
| RAM capacity | 2 GB |
| User memory | 16 GB |
| Audio | |
|---|---|
| Number of built-in speakers | 2 |
| Built-in speaker(s) | Yes |
| Network | |
|---|---|
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ports & interfaces | |
|---|---|
| Headphone connectivity | 3.5 mm |
| S/PDIF out port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 3 |
| USB connector type | USB Type-A, USB Type-B |
| USB 2.0 ports quantity | 8 |
| Ergonomics | |
|---|---|
| Certification | BSMI; CE; EAC; EMC Class B; FCC; PSB; RCM; REACH; SASO; UL/C-UL |
| Panel mounting interface | 600 x 400 mm |
| VESA mounting | Yes |
| Product colour | Black |
| Power | |
|---|---|
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 180 W |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 – 90% |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 39.2 kg |
| Height | 896.8 mm |
| Depth | 87.5 mm |
| Width | 1488.4 mm |
| Packaging content | |
|---|---|
| Remote control included | Yes |
| Cables included | AC, HDMI, USB, VGA |
| Manual | Yes |
| Sustainability | |
|---|---|
| Compliance certificates | RoHS |
