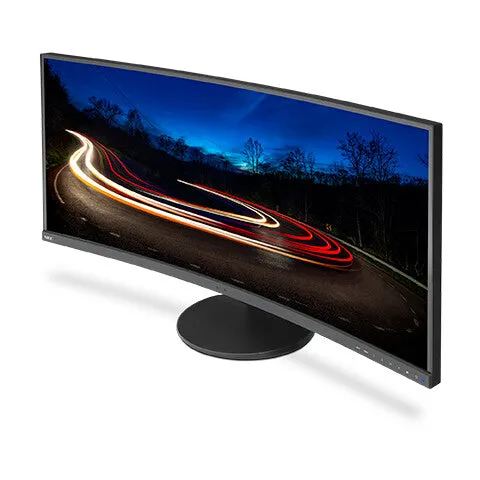

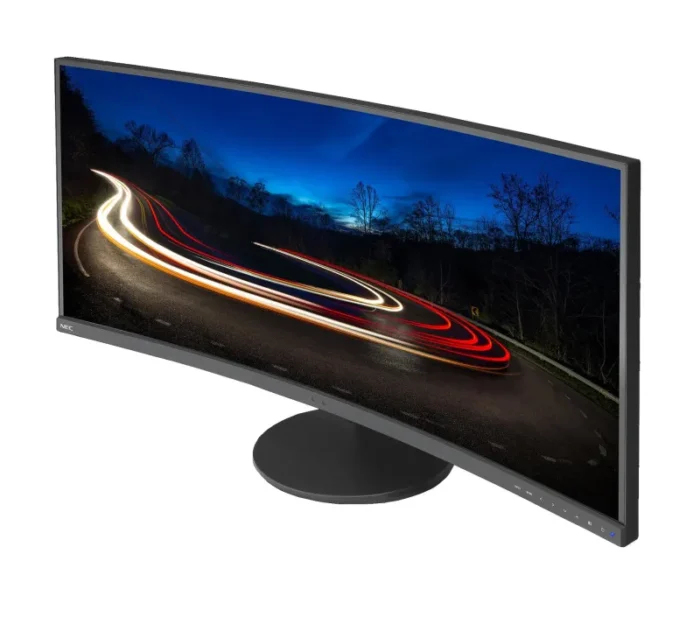

NEC SpectraView EX341R-BK computer monitor 86.4 cm (34″) 3440 x 1440 pixels 4K Ultra HD Black
- 86.4 cm (34″) SVA
- 4K Ultra HD 3440 x 1440 pixels
- 5 ms 290 cd/m² 3000:1
- 62 W
– The 34” NEC MultiSync EX341R is an 1800R curved SVA desktop monitor with 3-sided ultra-narrow bezels designed to provide a seamless, immersive workspace. This slim, ultrawide model features SVA panel technology with wide viewing angles (178° horizontal/vertical) ,ergonomic adjustability and 1.55mm bezels around three sides of the display. It features a touch controls for and on-screen display (OSD) indicators for easy adjustment of key settings and the included ControlSync technology allows users to control the settings for up to 25 MultiSync EA or EX Series displays in a multi-monitor configuration. Upon establishing one unit as the master, users are able to control many performance attributes of the multi-monitor setup in unison through the single monitor. Its comprehensive input panel includes HDMI 2.0, HDMI 1.4, and DisplayPort 1.2 for connecting to the latest display sources. The 4-port USB 3.0 hub also includes NEC’s unique DisplaySync Pro technology, which allows two computers to be controlled with one keyboard and mouse.
– 1800R curved SVA panel creates an immersive desktop experience
– LED backlight technology provides for industry-leading low power consumption and less hazardous materials
– Height-adjust, tilt and swivel capabilities add flexibility and comfort to your viewing preferences
– Full connectivity, including DisplayPort 1.2, HDMI 2.0 and 1.4 inputs
– Touch controls for the on screen display makes display adjustments simple
– Human and ambient light sensors automatically detect your work conditions to determine the proper display brightness, conserving power
– ECO Mode allows you to manually adjust the display’s brightness to your liking, saving power and reducing your energy costs
– NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations
– Compatible with SpectraViewII calibration software and the SVII-EA-KIT calibration kit.
| Display |
| Screen curvature |
180 cm |
| sRGB coverage (typical) |
99.5% |
| Colour gamut standard |
sRGB |
| DDC/CI |
Yes |
| Vertical scan range |
29.5 – 75 Hz |
| Horizontal scan range |
31.5 – 95 kHz |
| Pixel pitch |
0.23 x 0.23 mm |
| Display number of colours |
16.78 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (typical) |
3000:1 |
| Aspect ratio |
21:9 |
| Supported graphics resolutions |
3440 x 1440 |
| Screen curvature rating |
1800R |
| Screen shape |
Curved |
| Response time |
5 ms |
| Display brightness (typical) |
290 cd/m² |
| Backlight type |
W-LED |
| Panel type |
SVA |
| HD type |
4K Ultra HD |
| Touchscreen |
No |
| Display resolution |
3440 x 1440 pixels |
| Display diagonal |
86.4 cm (34″) |
| Performance |
| Game mode |
Yes |
| Multimedia |
| RMS rated power |
2 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
| Product colour |
Black |
| Ports & interfaces |
| HDCP |
Yes |
| DisplayPorts quantity |
2 |
| HDMI ports quantity |
2 |
| USB Type-A downstream ports quantity |
3 |
| Number of upstream ports |
2 |
| USB hub version |
3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub |
Yes |
| Ergonomics |
| Plug and Play |
Yes |
| On Screen Display (OSD) |
Yes |
| Tilt adjustment |
Yes |
| Swivelling |
Yes |
| Adjustable height (max) |
13 cm |
| Height adjustment |
Yes |
| Cable lock slot |
No |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
| Power consumption (PowerSave) |
0.26 W |
| Power consumption (typical) |
62 W |
| Operational conditions |
| Non-operating altitude |
0 – 12192 m |
| Operating altitude |
0 – 5000 m |
| Storage relative humidity (H-H) |
10 – 85% |
| Operating relative humidity (H-H) |
20 – 80% |
| Storage temperature (T-T) |
-10 – 60 °C |
| Operating temperature (T-T) |
5 – 35 °C |
| Weight & dimensions |
| Weight (without stand) |
7.6 kg |
| Height (without stand) |
364.1 mm |
| Depth (without stand) |
105.2 mm |
| Width (without stand) |
808.2 mm |
| Weight (with stand) |
10.7 kg |
| Height (with stand) |
419 mm |
| Depth (with stand) |
230 mm |
| Width (with stand) |
808.2 mm |
| Packaging content |
| Manual |
Yes |
| Cables included |
DisplayPort, USB |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| General |
| Product family |
SpectraView |
| Other features |
| Certification |
RoHS |
| Power management |
Yes |
| ECO mode |
Yes |
| Light sensor |
Yes |
| Display |
LED |
