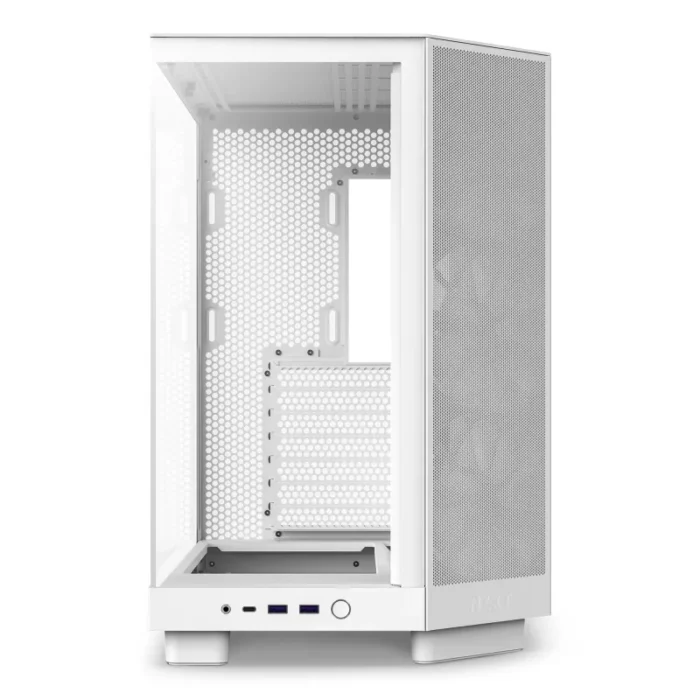

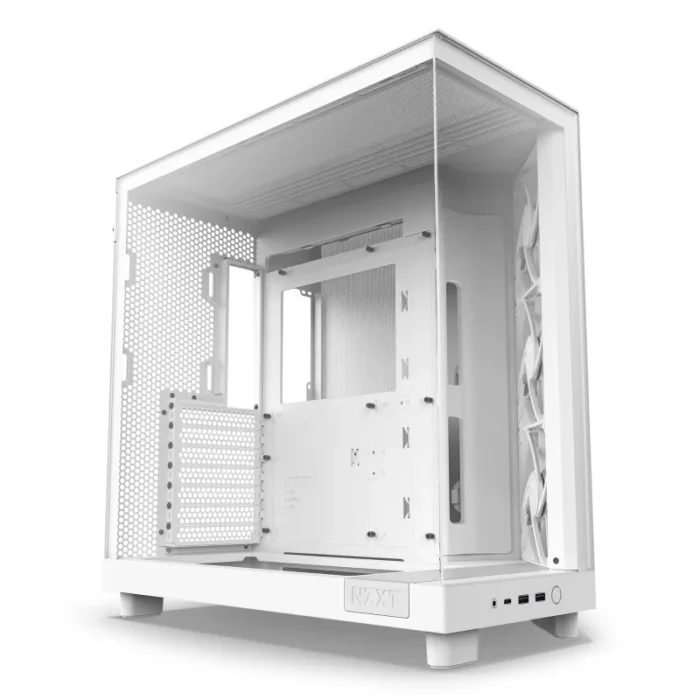

NZXT H6 Air Flow Midi Tower White
- Midi Tower PC
- ATX, micro ATX, Mini-ITX
- Supported HDD sizes: 2.5,3.5″
- Number of 2.5″ bays: 2 Number of 3.5″ bays: 1
- Tempered glass panel(s)
- Steel, Tempered glass
- White
Experience performance with a fresh perspective. The H6 Flow’s innovative compact design emphasizes GPU cooling with a strategically angled front corner, so the fans direct air where it’s most needed. The panoramic glass proudly showcases the interior, while the dual-chamber layout frees up space for a cleaner look and better cooling performance
A SEAMLESS SHOWCASE
Tempered glass front and side panels offer an uninterrupted view of components, while the dual-chamber design hides PSU and storage for a sleek, compact, and standout look
ANGLED AIRFLOW

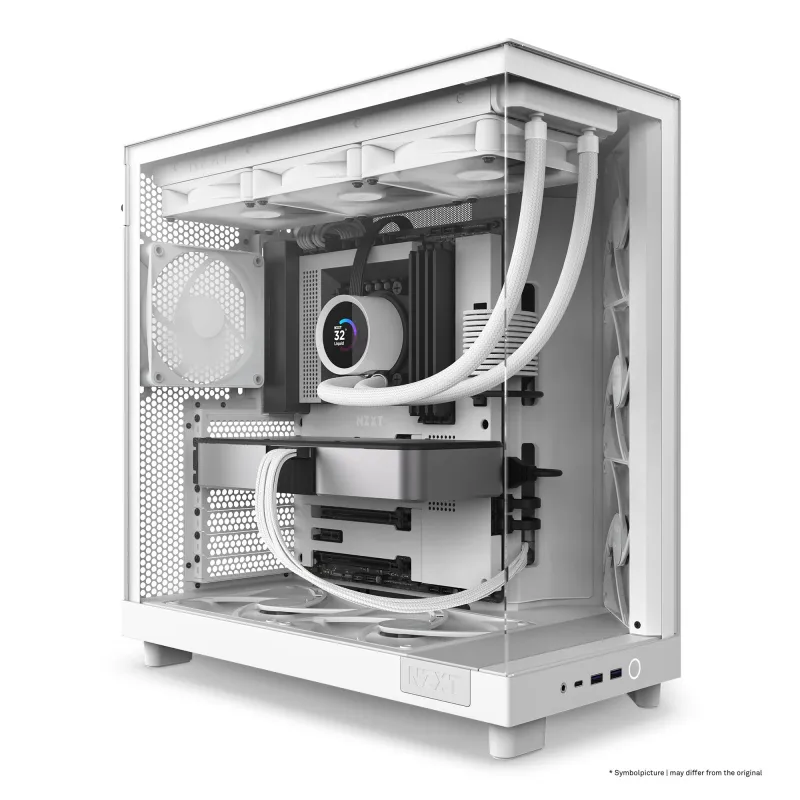

The angled front-right corner with 3 x 120mm fans targets heat-prone components. Supports 2 x 140mm fans beneath the GPU for optimal cooling while perforated panels enhance airflow.
BUILDING MADE SIMPLE
H6 Flow’s intuitive design makes building a breeze. Wide channels and included straps aid cable management. Tool-less access to top and side panels simplifies tinkering and upgrading.
| Design |
| Maximum PSU length |
20 cm |
| Maximum graphics card length |
36.5 cm |
| Maximum CPU cooler height |
16.3 cm |
| On/off button |
Yes |
| Cable management |
Yes |
| Tempered glass panel(s) |
Yes |
| Number of expansion slots |
7 |
| Number of 2.5″ bays |
2 |
| Number of 3.5″ bays |
1 |
| Supported motherboard form factors |
ATX, micro ATX, Mini-ITX |
| Product colour |
White |
| Material |
Steel, Tempered glass |
| Type |
PC |
| Form factor |
Midi Tower |
| Power supply |
| Power supply included |
No |
| Ports & interfaces |
| Audio input |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Cooling |
| Top radiator sizes supported |
360 mm |
| Rear radiator sizes supported |
120 mm |
| Maximum airflow |
62.18 cfm |
| Maximum air pressure |
1.05 mmH2O |
| Fan speed |
0 – 1200 RPM |
| Bottom fans diameters supported |
140 mm |
| Number of bottom fans supported (max) |
2 |
| Top fans diameters supported |
120,140 mm |
| Number of top fans supported (max) |
3 |
| Rear fans diameters supported |
120 mm |
| Number of rear fans supported (max) |
1 |
| Front fans diameters supported |
120 mm |
| Number of front fans supported (max) |
3 |
| Front fans installed |
3x 120 mm |
| Storage |
| Supported HDD sizes |
2.5,3.5″ |
| General |
| Product family |
H6 |
| Technical details |
| Warranty period |
2 year(s) |
| Packaging content |
| Manual |
Yes |
| Weight & dimensions |
| Weight |
9.4 kg |
| Height |
435 mm |
| Depth |
415 mm |
| Width |
287 mm |
| Packaging data |
| Package weight |
11.2 kg |
| Package height |
515 mm |
| Package depth |
361 mm |
| Package width |
508 mm |
