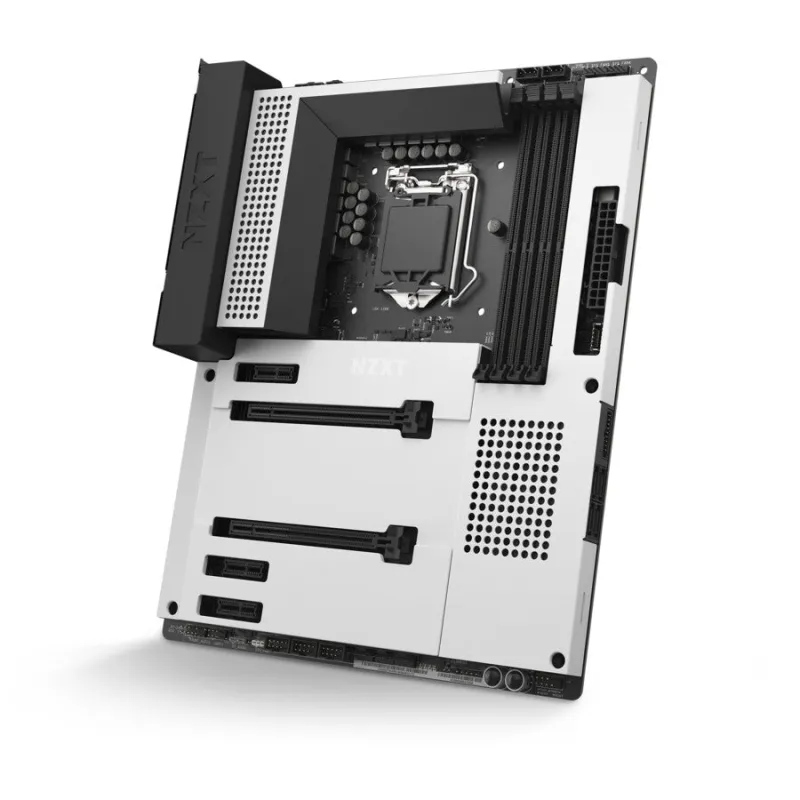

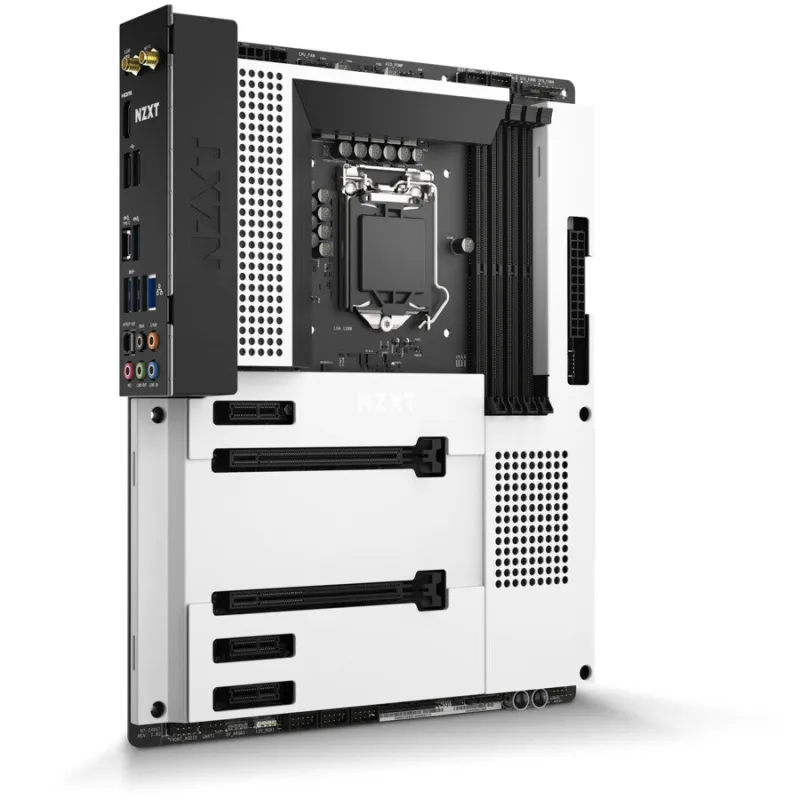

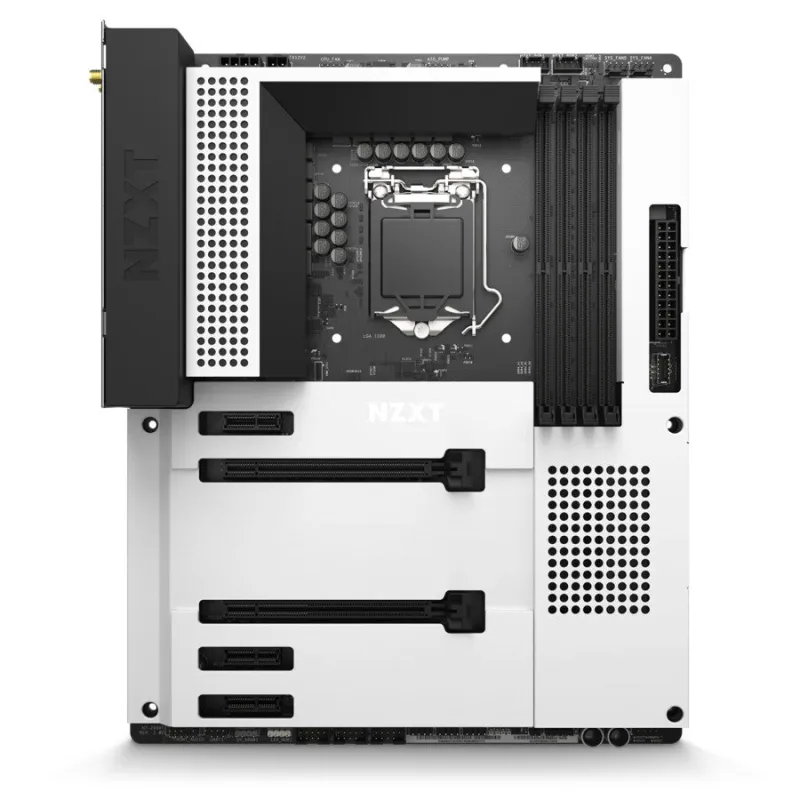

NZXT N7 Z490 Intel Z490 LGA 1200 (Socket H5) ATX
- Designed around Intel’s Z490 chipset, the N7 Z490 delivers everything you need to build an incredible gaming PC. Features include built-in Wi-Fi 6 connectivity, integrated fan controller, RGB accessories supported across all manufacturers, and more. The motherboard cover perfectly matches the color and finish of your NZXT case, creating a visually seamless backdrop for your components
- The N7 Z490 includes key features from our RGB and Fan Controller, allowing intuitive control of four RGB lighting channels and seven fan channels through CAM. Lighting accessories from all manufactorers are supported
- The N7’s white or black covers provide a clean design that blends seamlessly with your case
- The N7 Z490 includes WiFi 6 connectivity and utilizes all PCI express lanes available from the CPU and chipset so everything works as intended
- The N7’s layout streamlines installation with an integrated rear I/O shield and optimally placed headers for easier setup
N7 Z490
Designed around Intel’s Z490 chipset, the N7 Z490 delivers everything you need to build an incredible gaming PC. Features include built-in Wi-Fi 6 connectivity, integrated fan controller, RGB accesories supported across all manufacturers, and more. The motherboard cover perfectly matches the color and finish of your NZXT case, creating a visually seamless backdrop for your components.
The N7 Z490 provides everything builders need to get the job done beautifully. With an integrated rear I/O and a streamlined board layout, the N7 Z490 simplifies the building process. With built-in digital RGB and fan controls, users can create fan curves or control RGB lighting from any manufacturer easily via NZXT CAM.
SMART CONTROLS
The N7 Z490 includes key features from our RGB and Fan Controller, allowing intuitive control of four RGB lighting channels and seven fan channels through CAM. Lighting accessories from all manufactorers are supported.
STUNNING CRAFTSMANSHIP
The N7’s white or black covers provide a clean design that blends seamlessly with your case.
BUILDING MADE EASIER
The N7 Z490 includes WiFi 6 connectivity and utilizes all PCI express lanes available from the CPU and chipset so everything works as intended. The N7’s layout streamlines installation with an integrated rear I/O shield and optimally placed headers for easier setup.
| Processor | |
|---|---|
| Maximum internal memory supported by processor | 128 GB |
| Supported processor sockets | LGA 1200 (Socket H5) |
| Maximum number of SMP processors | 1 |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Processor socket | LGA 1200 (Socket H5) |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Unbuffered memory | Yes |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 16GB, 32GB |
| Maximum internal memory | 128 GB |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3300,3333,3400,3466,3600,3733,3866,4000,4133,4266 MHz |
| ECC сompatibility | Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR4-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 2 |
| Number of HDDs supported | 4 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| Discrete graphics support | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Graphics card | HD Graphics |
| Graphics card family | Intel |
| On-board graphics card | Yes |
| Parallel processing technology support | 2-Way CrossFireX |
| Maximum graphics card memory | 1024 MB |
| Internal I/O | |
|---|---|
| RGB LED pin header | Yes |
| 12V power connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| Number of EATX power connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 3 |
| Rear panel I/O ports | |
|---|---|
| WiFi-AP antenna jack | 1 |
| S/PDIF out port | Yes |
| Headphone outputs | 1 |
| HDMI version | 1.4b |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Network | |
|---|---|
| Bluetooth version | 5.1 |
| Bluetooth | Yes |
| WLAN controller model | Intel Wi-Fi 6 AX200 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| LAN controller | Dragon RTL8125BG |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Certification | FCC, CE, WHQL, ErP/EuP Ready |
| Windows operating systems supported | Windows 10 x64 |
| Cooling type | Active |
| Power source type | ATX |
| Audio output channels | 8 channels |
| Audio chip | Realtek ALC1220 |
| Motherboard chipset | Intel Z490 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI Express x1 (Gen 3.x) slots | 3 |
| BIOS | |
|---|---|
| Clear CMOS button | Yes |
| BIOS type | UEFI AMI |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
