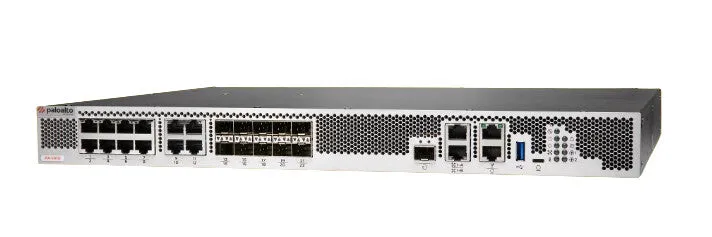

Palo Alto Software Palo Alto Networks PA-1410 hardware firewall 1U 8.5 Gbit/s
- 1U
- Wired Console port: RJ-45
- Total storage capacity: 120 GB SSD capacity: 120 GB
- 290 W
Palo Alto Networks PA-1400 series ML-Powered NGFW (PA-1420, PA-1410) brings Next Generation Firewall capabilities to smaller campus locations and larger distributed enterprise branch offices.
| Data transmission | |
|---|---|
| Maximum firewall connections per second | 100000 |
| Maximum firewall connections | 945000 |
| IPSec VPN throughput | 4.1 Gbit/s |
| Firewall throughput | 8.5 Gbit/s |
| Network | |
|---|---|
| Multicast support | Yes |
| Quality of Service (QoS) support | Yes |
| Number of VLANs | 4094 |
| Security | |
|---|---|
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, MD5, SHA-1, SHA-256, SHA-384, SHA-512 |
| Management features | |
|---|---|
| LED indicators | Yes |
| Ports & interfaces | |
|---|---|
| SFP+ module slots quantity | 4 |
| SFP module slots quantity | 6 |
| DC-in jack | Yes |
| Number of console ports | 1 |
| Console port | RJ-45 |
| Ethernet LAN (RJ-45) ports | 8 |
| USB 2.0 ports quantity | 1 |
| Connectivity technology | Wired |
| Storage | |
|---|---|
| Total storage capacity | 120 GB |
| SSD capacity | 120 GB |
| Storage media type | SSD |
| Design | |
|---|---|
| Built-in display | No |
| Form factor | 1U |
| Rack mounting | Yes |
| Power | |
|---|---|
| Power consumption (typical) | 250 W |
| Power consumption (max) | 290 W |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100-240 V |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 – 70 °C |
| Operating temperature (T-T) | 0 – 40 °C |
