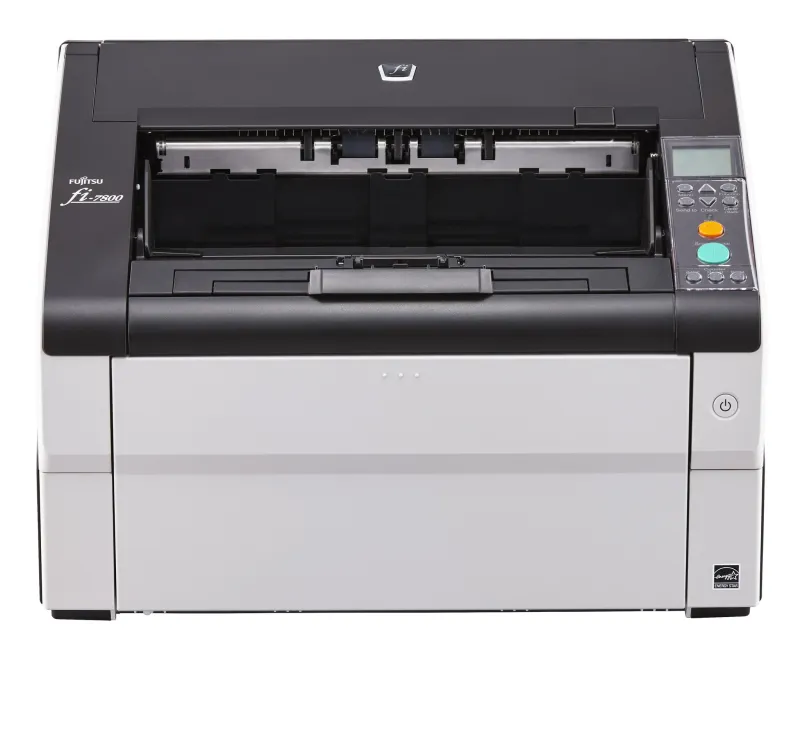

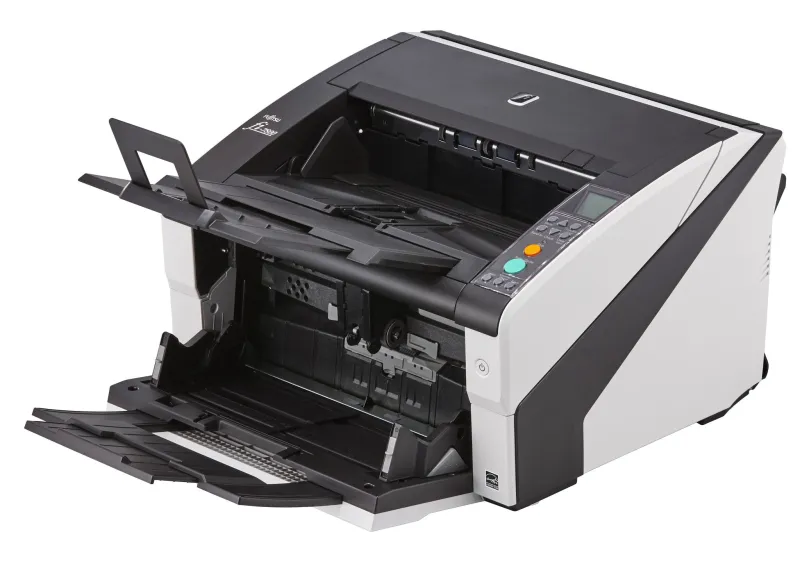

Ricoh fi-7800 ADF + Manual feed scanner 600 x 600 DPI A3 Black, Grey
- Automatic Separation Control function and Skew Reducer to ensure stable feeding
- Paper Protect function to prevent documents from being damaged
- Stacking Control function and Elevator Stacker for easy paper collection from the stacker
- Manual Feed Mode to scan various types of documents
- Environment-friendly product certified with ENERGY STAR Version 3
- Low profile design with operation panel and LCD for comfortable scanning
- Cleaning Mode for easy maintenance
- LAN network capability certified for Silex Device Server users
The fi-7800 achieves scanning speeds of 110 ppm/220 ipm (A4 landscape, color, 200/300 dpi), is capable of scanning up to as many as 100,000 sheets a day, and is highly optimized for centralized scanning.
The scanner is designed with operator usability as its first priority. It provides high quality technology for reliable scanning, a user-friendly design inherited from our high-end scanners, as well as enhanced image processing functions. Users can enjoy comfortable scanning while improving their work efficiency significantly.
| Scanning | |
|---|---|
| Black/white scanning colour modes | Grayscale, Monochrome |
| Output monochrome depth | 1 bit |
| Output greyscale depth | 8 bit |
| Output colour depth | 24 bit |
| Duplex scanning | Yes |
| Colour scanning | Yes |
| Optical scanning resolution | 600 x 600 DPI |
| Maximum scan size | 304.8 x 5588 mm |
| Design | |
|---|---|
| Product colour | Black, Grey |
| Built-in display | Yes |
| Scanner type | ADF + Manual feed scanner |
| Performance | |
|---|---|
| Scan drivers | ISIS, TWAIN, WIA |
| Ultrasonic double sheet detection | Yes |
| Scanner error detection | Yes |
| Daily duty cycle (max) | 100000 pages |
| Scan file formats | BMP, JPEG, PDF, TIFF |
| Light source | White LED (4x) |
| Sensor type | Dual CCD |
| Input capacity | |
|---|---|
| Auto document feeder (ADF) input capacity | 500 sheets |
| Paper handling | |
|---|---|
| Maximum scan area (ADF) | 304.8 x 431.8 mm |
| Minimum scan area (ADF) | 52 x 74 mm |
| Maximum scan length | 5.59 m |
| Auto Document Feeder (ADF) media weight | 20 – 209 g/m² |
| Legal | Yes |
| Letter | Yes |
| ISO B-series sizes (B0…B9) | B5, B6 |
| ISO A-series sizes (A0…A9) | A3, A4, A5, A6 |
| Multi feed detection | Yes |
| Long-paper mode | Yes |
| Maximum ISO A-series paper size | A3 |
| Ports & interfaces | |
|---|---|
| Standard interfaces | USB 2.0 |
| Socket connector type | C13 |
| USB connector type | USB Type-B |
| USB version | 2.0 |
| USB port | Yes |
| Power | |
|---|---|
| Power consumption (sleep) | 3.2 W |
| Sleep mode | Yes |
| Power consumption (off) | 0.3 W |
| Power supply type | AC |
| Power consumption (typical) | 200 W |
| Weight & dimensions | |
|---|---|
| Weight | 32 kg |
| Height | 310 mm |
| Depth | 430 mm |
| Width | 460 mm |
| Packaging data | |
|---|---|
| Package weight | 39 kg |
| Package height | 618 mm |
| Package depth | 642 mm |
| Package width | 548 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
|---|---|
| Bundled software | PaperStream IP driver (TWAIN/TWAIN x64/ISIS), WIA Driver, PaperStream Capture, 2D Barcode for PaperStream, Software Operation Panel, Error Recovery Guide, Scanner Central Admin |
| Drivers included | Yes |
| Cables included | AC, USB |
| Warranty card | Yes |
| Software CD | Yes |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 x64, Windows 7 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 – 80% |
| Operating temperature (T-T) | 5 – 35 °C |
| Other features | |
|---|---|
| Background colours | Black, White |
| Selectable background colour | Yes |
| Compliance certificates | RoHS |
| Technical details | |
|---|---|
| PC connection | USB 2.0 |
| Logistics data | |
|---|---|
| Paper packaging weight | 2.4 kg |
| Metal packaging weight | 0 g |
| Wood packaging weight | 0 g |
| Plastic packaging weight | 15 g |
| Products per pallet (air) | 4 pc(s) |
| Products per pallet (sea) | 6 pc(s) |
| Pallet height (sea) | 187 cm |
| Pallet height (air) | 129 cm |
| Cardboard packaging weight | 1.2 kg |
| Foil packaging weight | 15 g |
| Polystyrene (EPS/EPP) packaging weight | 200 g |
| Glass packaging weight | 0 g |
| Pallet gross length | 70 cm |
| Pallet gross width | 130 cm |
| Harmonized System (HS) code | 8471607000 |
| Country of origin | Japan |
- EU Declaration of Conformity
