SINO 4 Axis DRO Set
SINO 4 Axis DRO Set

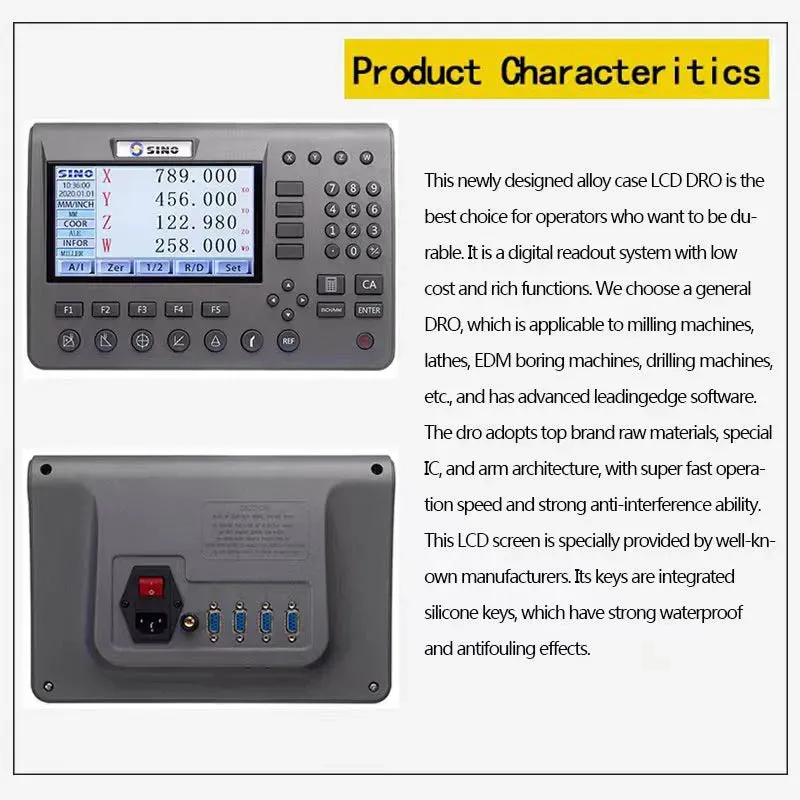

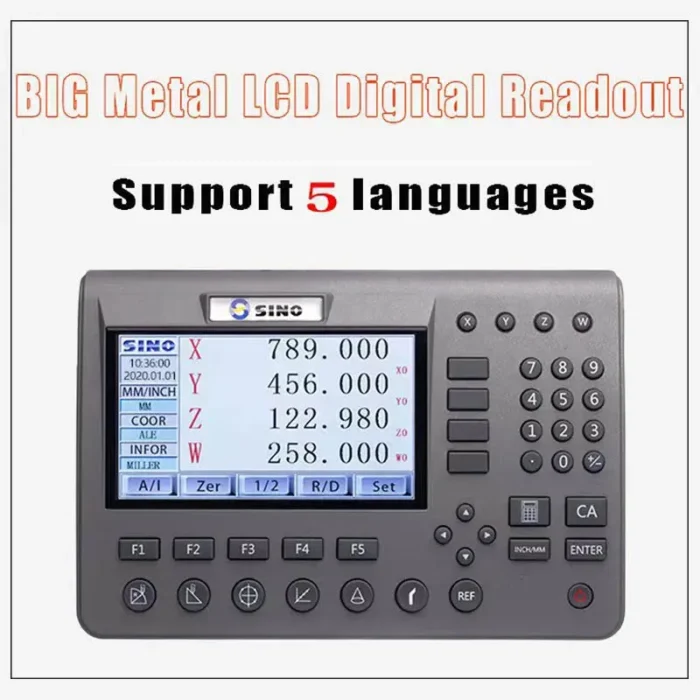

Elevate your machining precision with our SINO 4 Axis DRO Sets. This comprehensive kit includes an LCD digital readout display, featuring 0.005mm accuracy, and grating linear scale encoder glass rulers. Suitable for lathe, grinder, and milling tools, this set ensures precise measurements for your machining operations. Enhance your workshop efficiency and accuracy with this versatile DRO set.
SPECIFICATIONS
Certification: CE
Model Number: SDS200 DRO Set
Model Number: SDS200
Operating temperature: 0-50°c
Interface Typ: 20um
Output mode: TTL
Protection grade: IP54
Interface Typ: DB9
Resolution: 0.005mm
Application: Mill, Lathe, Grinder, CNC etc.
Max of Measuring speed: 60m/min
Input voltage: 5VDC
Cross Section Dimension: 25mm* 34mm
Matchable DRO: All China DRO
Scale overall length: Travel+106mm
Installation holes distance: Travel+90mm
Cable length: 3 meters
Procut name: DRO linear scale
