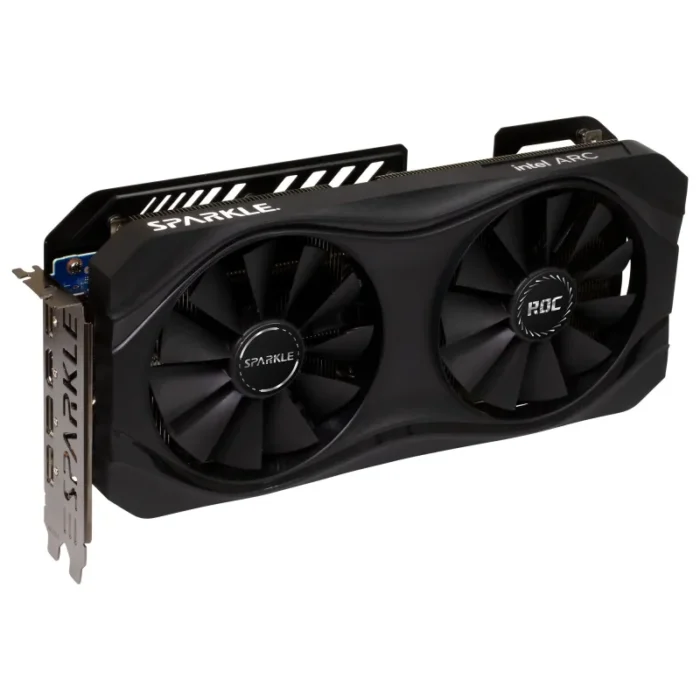

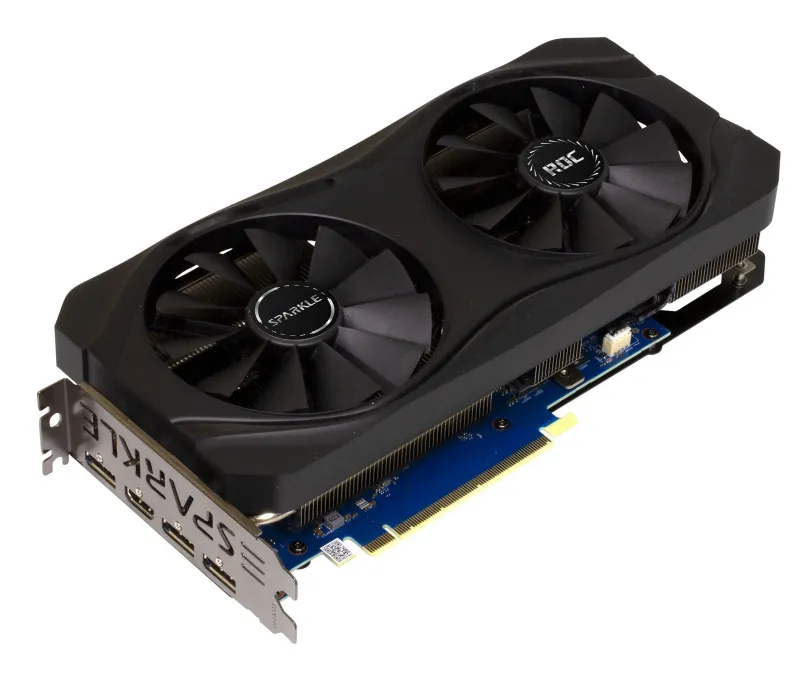

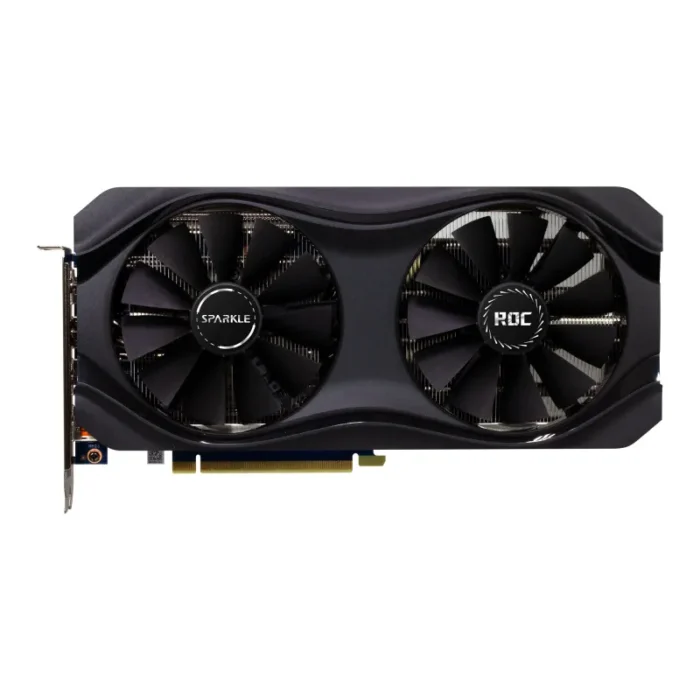

Sparkle Technology Intel Arc A770 ROC OC Edition 16 GB GDDR6
- 2x 100mm DBB Fans
- Metal Backplate, 2.5-slot
- 3x DisplayPort, 1x HDMI 2.0
The SPARKLE Intel Arc A770 ROC OC Edition is the brand-new BEST choice of the series, comes with
Intel Arc A770 and 16GB GDDR6. This card is designed for ultimate gaming experience and
maximum productivity.
ROC series equipped dual 100mm double-ball bearing fan with 2.5-slot heatsink design, reduce the
length of card effetely and ready to fit into the compact system. Furthermore, 100mm DBB fans have
brought the higher efficiency of cooling, lead to an ultra-silence experience without compromising
performance.
| Processor |
| Ray accelerators |
32 |
| Processor boost clock speed |
2300 MHz |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
Arc A770 |
| Graphics processor family |
Intel |
| Memory |
| Memory bandwidth (max) |
560 GB/s |
| Data transfer rate |
17.5 Gbit/s |
| Memory bus |
256 bit |
| Graphics card memory type |
GDDR6 |
| Discrete graphics card memory |
16 GB |
| Ports & interfaces |
| DisplayPort version |
2.0 |
| HDMI version |
2.0b |
| DisplayPorts quantity |
3 |
| HDMI ports quantity |
1 |
| Interface type |
PCI Express 4.0 |
| Performance |
| Video formats supported |
AV1, VP9 |
| Xe-cores |
32 |
| Intel® Xe Matrix Extensions (Intel® XMX) Engines |
512 |
| OpenCL version |
3.0 |
| OpenGL version |
4.6 |
| DirectX version |
12 Ultimate |
| Design |
| Product colour |
Black |
| Number of slots |
2.5 |
| Number of fans |
2 fan(s) |
| Cooling type |
Active |
| Power |
| Power consumption (typical) |
225 W |
| Minimum system power supply |
650 W |
| System requirements |
| Linux operating systems supported |
Ubuntu 22.04 |
| Windows operating systems supported |
Windows 10, Windows 11 |
| Weight & dimensions |
| Height |
131 mm |
| Depth |
51 mm |
| Length |
281 mm |
| Weight |
360 g |
