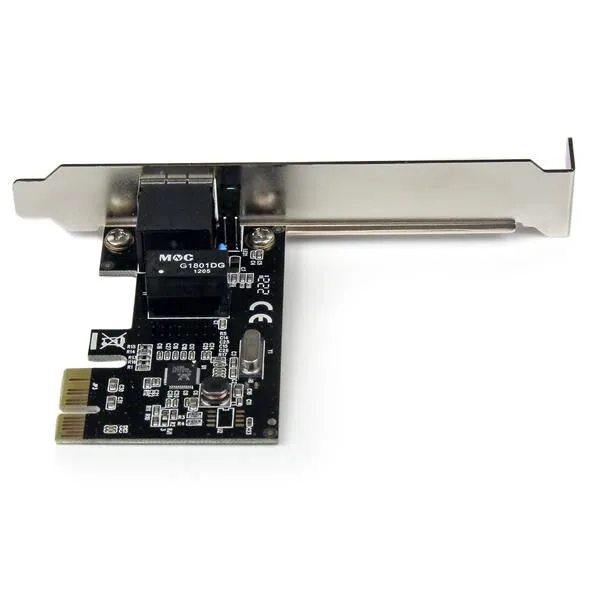

StarTech.com 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card – Dual Profile
- Wired
- PCI Express Ethernet
- Gigabit Ethernet 1000 Mbit/s 10/100/1000BaseT(X)
- Internal Chipset: Realtek RTL8111E
The ST1000SPEX2 PCIe Gigabit Ethernet Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter delivers rock-solid performance.
Plus, the card includes both full profile and low profile/half-height installation brackets for installation in a wide range of computer/server chassis, regardless of form factor.
The ST1000SPEX2 network card is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
– Fits into full-size or low profile/small form factor (SFF) systems, with the addition of a half-height bracket
– Offers performance flexibility and easy setup with support for advanced features such as Jumbo Frames, Wake-On-LAN and Auto MDIX
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Supported network protocols | CSMA/CD |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Full duplex | Yes |
| Auto MDIX IEEE | Yes |
| Wake-on-LAN ready | Yes |
| Wi-Fi | No |
| Cabling technology | 10/100/1000BaseT(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Maximum data transfer rate | 1000 Mbit/s |
| Design | |
|---|---|
| Certification | CE, FCC |
| Mean time between failures (MTBF) | 376212 h |
| LED indicators | Activity, Link |
| Chipset | Realtek RTL8111E |
| Internal | Yes |
| System requirements | |
|---|---|
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | 0 – 100 °C |
| Operating temperature (T-T) | 0 – 70 °C |
| Weight & dimensions | |
|---|---|
| Weight | 40 g |
| Height | 18 mm |
| Depth | 67.9 mm |
| Width | 120.3 mm |
| Packaging data | |
|---|---|
| Package weight | 126 g |
| Package height | 32 mm |
| Package depth | 171 mm |
| Package width | 142 mm |
| Drivers included | Yes |
| Low-profile bracket | Yes |
| Packaging content | |
|---|---|
| Manual | Yes |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Other features | |
|---|---|
| Supported data transfer rates | 10/100/1000 Mbit/s |
