StarTech.com 2 Port SATA 6 Gbps PCI Express eSATA Controller Card
- Internal
- Host interface: PCIe
- Output interface: eSATA
- 6 Gbit/s

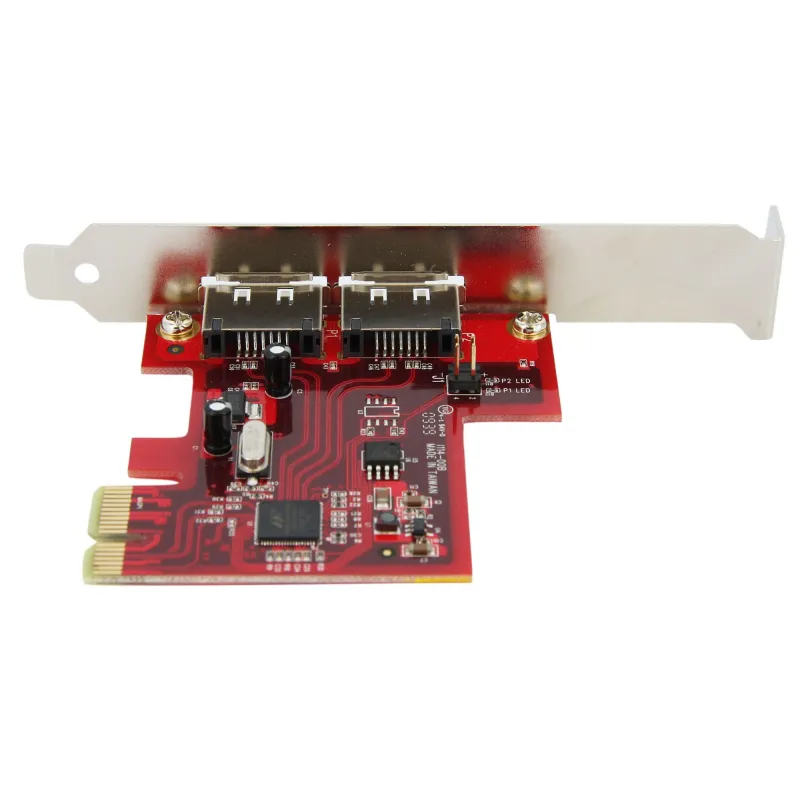

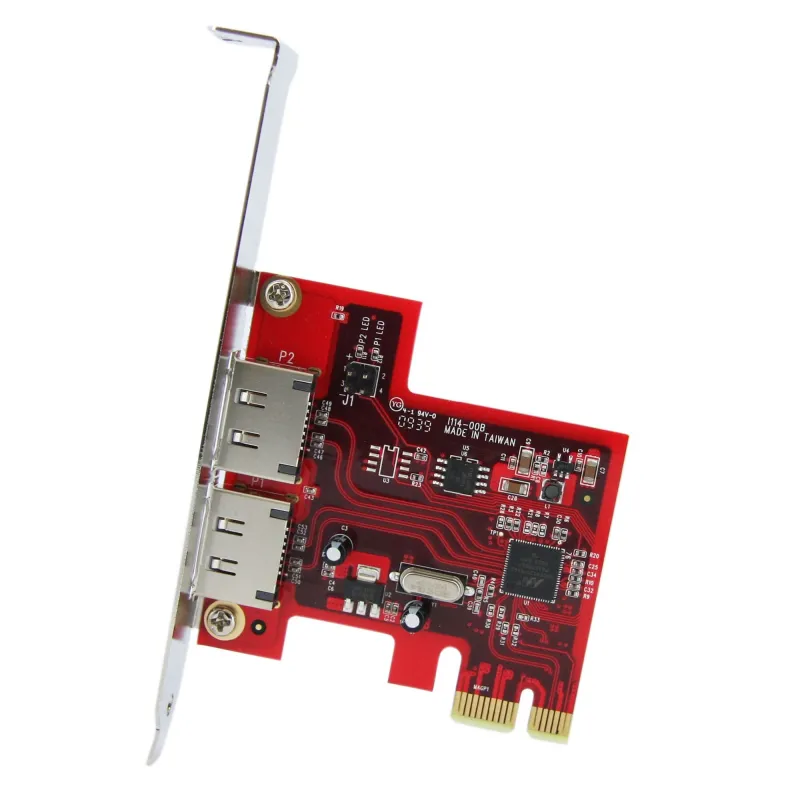

The PEXESAT32 2 Port PCI Express 6Gbps eSATA Controller Card offers simple connectivity between a host computer and eSATA 3.0 devices – a cost-effective solution for connecting high-speed storage, such as High RPM Hard Drives and Solid State Drives (SSD), which in turn allows for easier data backups and archiving.
With full support for SATA 3.0 hard drives and data transfer speeds of up to 6 Gbps, the adapter card features a native PCI Express single chipset that provides enhanced compatibility, reliability and performance for external SATA 600 MB/s storage needs.
The controller card is backward compatible with SATA 2.0 devices, providing the versatility to use older storage, and features support for RAID 0 and 1 modes as well as port multiplier capability with command-based and FIS-based switching for connecting multiple external hard drives to a host PC through a single external SATA connection.
A dual profile solution, the eSATA controller card includes a low profile/half-height bracket for installation in slimline or small form factor computer cases.
The StarTech.com Advantage
– Supports SATA 3.0 data transfer speeds up to 6Gbps – twice the speed of SATA II (3Gbps)

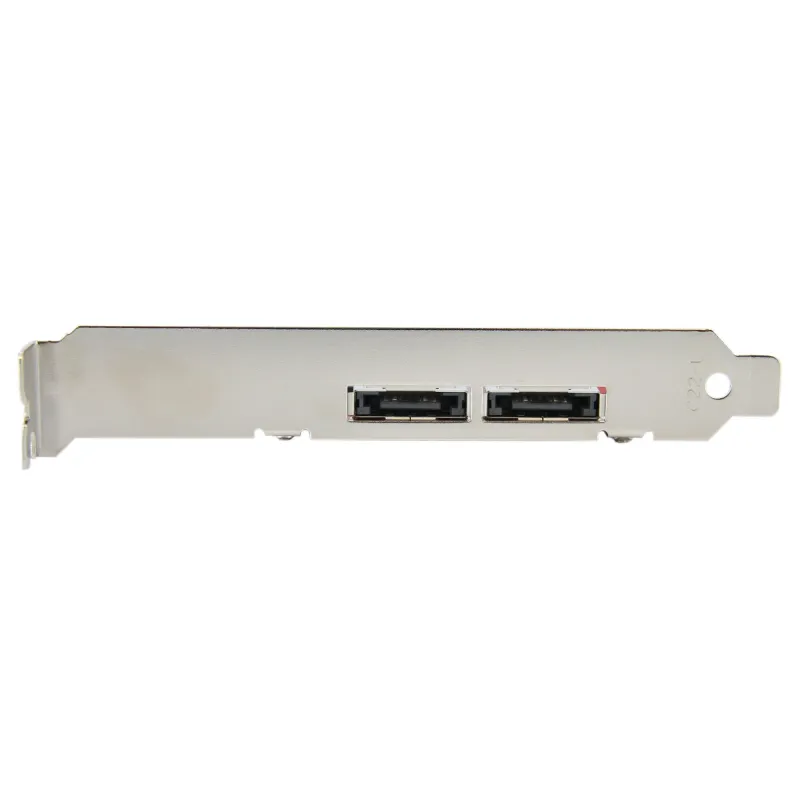

– Ships with a full profile bracket installed and includes a low profile/half-height bracket that provides the option to install in a small form factor PC
| Ports & interfaces | |
|---|---|
| Port multiplier | Yes |
| eSATA ports quantity | 2 |
| SATA revision | 3.0 |
| Expansion card standard | PCIe 2.0 |
| Output interface | eSATA |
| Host interface | PCIe |
| Design | |
|---|---|
| Mean time between failures (MTBF) | 5046000 h |
| Internal | Yes |
| Features | |
|---|---|
| RAID levels | 0, 1, JBOD |
| Logical block addressing (LBA) support | 48 bit |
| Data transfer rate (max) | 6 Gbit/s |
| Chipset | Marvell – 88SE9128 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 15 – 90% |
| Storage temperature (T-T) | -25 – 70 °C |
| Operating temperature (T-T) | 5 – 50 °C |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| System requirements | |
|---|---|
| Server operating systems supported | Windows Server 2003, Windows Server 2003 x64, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Weight & dimensions | |
|---|---|
| Weight | 35 g |
| Height | 20 mm |
| Depth | 70 mm |
| Width | 120 mm |
| Packaging data | |
|---|---|
| Package weight | 127 g |
| Package height | 32 mm |
| Package depth | 145 mm |
| Package width | 175 mm |
| Quick installation guide | Yes |
| Drivers included | Yes |
| Mounting brackets included | Yes |
| Logistics data | |
|---|---|
| Master (outer) case height | 314 mm |
| Master (outer) case length | 492 mm |
| Master (outer) case width | 388 mm |
| Products per master (outer) case | 60 pc(s) |
| Harmonized System (HS) code | 84733020 |
