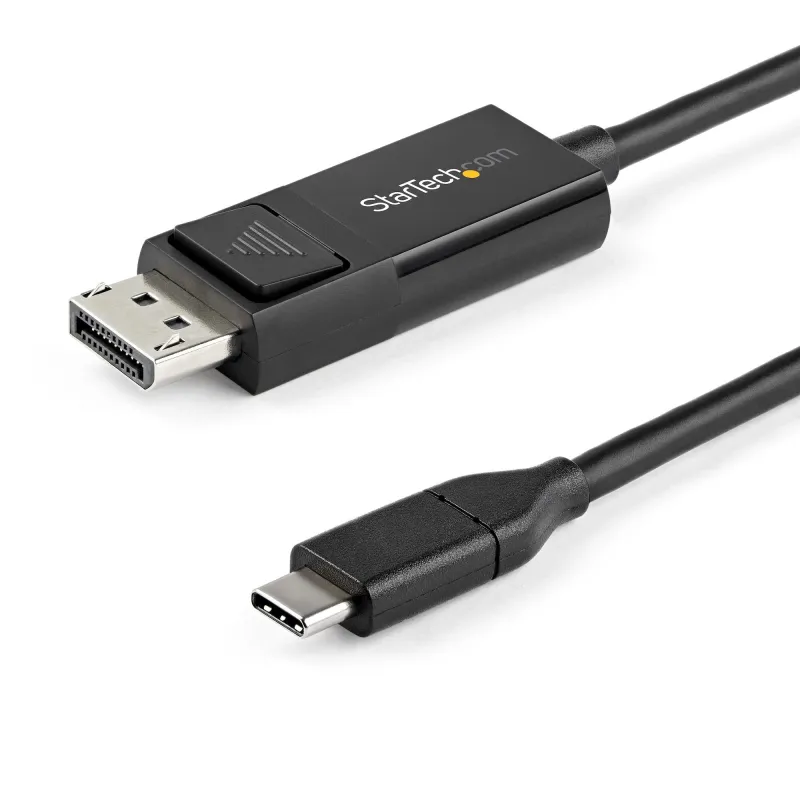

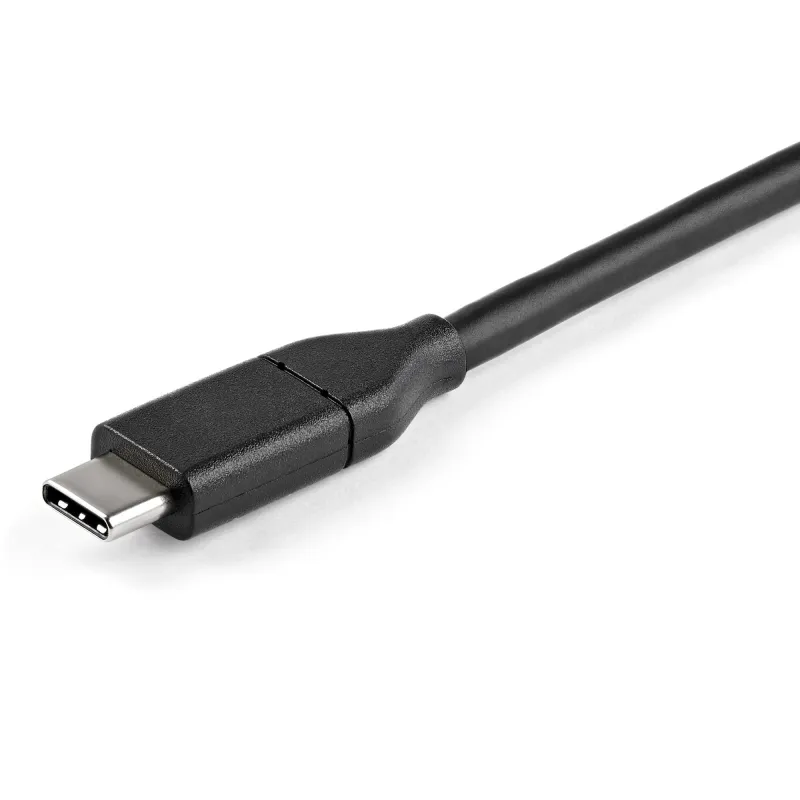

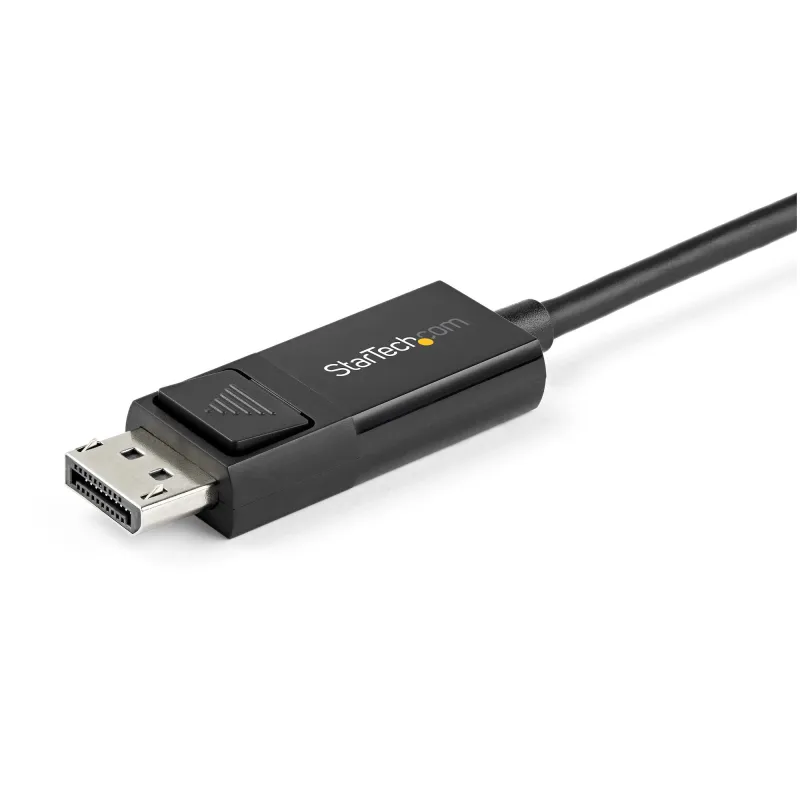

StarTech.com 6ft (2m) USB C to DisplayPort 1.2 Cable 4K 60Hz – Bidirectional DP to USB-C or USB-C to DP Reversible Video Adapter Cable – HBR2/HDR – USB Type C/TB3 Monitor Cable
- HIGH PERFORMANCE: 6.6ft/2m Reversible USB-C to DisplayPort 1.2 (21.6Gbps) cable or DP to USB-C cable supports 4K 60Hz/HBR2/HDR/HDCP 2.2/1.4
- 1080p & Thunderbolt 3 compatible
- REVERSIBLE CABLE: This DisplayPort to USB C bidirectional cable works either way to connect your USB-C Laptop to a DisplayPort Monitor or connect a DisplayPort device to a USB Type-C display
- DP OR USB-C DP ALT MODE HOST COMPATIBLE: USB-C video cable for Dell XPS/Precision/Latitude, Lenovo ThinkPad X1 Carbon/Extreme, Surface Laptop 3/Pro, TB3 MacBook Pro/Air, HP EliteBook/Spectre/ZBook
- DP OR USB-C MONITOR COMPATIBLE: Use this DisplayPort to USB C cable to convert from a DP host to a USB-C monitor; supports USB-C 16:9 & ultrawide monitors from LG, Dell UltraSharp, Acer, Asus Pro Art
- INTEGRATED VIDEO ADAPTER CABLE: Supports driverless setup on any OS, minimizes failure points & signal loss, and features latching DP connector to ensure a reliable & consistent connection
USB Type-C™ Adapter Cable | 4K 60Hz | Thunderbolt 3™
This USB-C™ to DisplayPort™ 1.2 cable lets you connect your USB Type-C™ (or Thunderbolt 3™) device to a DisplayPort display, or a DP device to a USB-C display with just one cable.
Easy & Clutter-Free Installation
At 6.6 ft. (2 m) in length, this bidirectional adapter cable delivers a direct connection that eliminates excess adapters and cabling, ensuring a tidy, professional installation. For shorter installations, we also offer a 3.3 ft. (1 m) USB-C to DP cable, enabling you to choose the right cable length for your custom installation needs.
As well, the cable works with both Mac and Windows devices and allows for plug-and-play installation, removing the need for any additional software or drivers.
Convenient, Bi-Directional Support
Use this USB-C to DisplayPort adapter cable to output 4K video and audio to a DP display from the USB Type-C (or Thunderbolt 3) port on your laptop or mobile device. With bi-directional capabilities, this cable can also connect your DisplayPort-enabled devices to a display featuring USB-C input.
Ultra HD 4K Resolution at 60Hz
This USB-C to DP 1.2 adapter cable lets you harness the video capabilities that are built into your computer’s USB Type-C (or DisplayPort) connection, to deliver the astonishing quality of UHD to your 4K display. For even higher resolution and bandwidth support, we offer a USB-C to DP 1.4 cable, which is the perfect accessory for early adopters of 8K.
CDP2DP2MBD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: Your USB 3.1 Type-C device must support DP Alt Mode to work with this cable.
The StarTech.com Advantage
| Features | |
|---|---|
| Converter type | Active video converter |
| Plug and Play | Yes |
| Supported audio channels | 7.1 |
| Chipset | Chrontel – CH7213C-BF, VIA Labs – VL170 |
| Product colour | Black |
| HBR2 support | Yes |
| Maximum refresh rate | 60 Hz |
| Bandwidth | 21600 MB/s |
| Maximum resolution | 3840 x 2160 pixels |
| High Dynamic Range (HDR) supported | Yes |
| DisplayPort version | 1.2 |
| HDCP version | 1.4/2.2 |
| HDCP | Yes |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | DisplayPort |
| Connector 1 | USB Type-C |
| Cable length | 2 m |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 – 85% |
| Storage temperature (T-T) | -10 – 70 °C |
| Operating temperature (T-T) | 0 – 45 °C |
| Certificates | |
|---|---|
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
|---|---|
| Height | 12 mm |
| Depth | 2038 mm |
| Width | 220 mm |
| Weight | 77 g |
| Packaging data | |
|---|---|
| Package weight | 84 g |
| Package height | 12 mm |
| Package depth | 124 mm |
| Package width | 226 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Products per master (outer) case | 80 pc(s) |
| Master (outer) case height | 212 mm |
| Master (outer) case length | 497 mm |
| Master (outer) case width | 327 mm |
| Harmonized System (HS) code | 84733080 |
