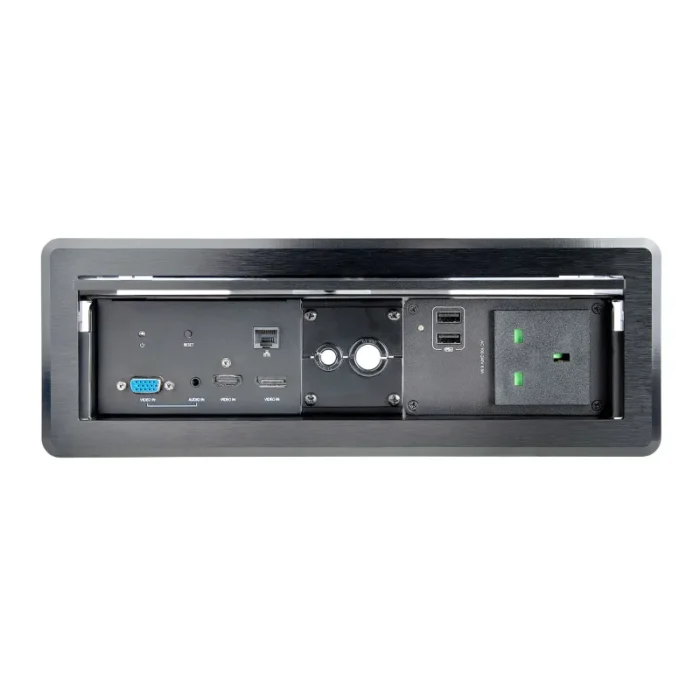

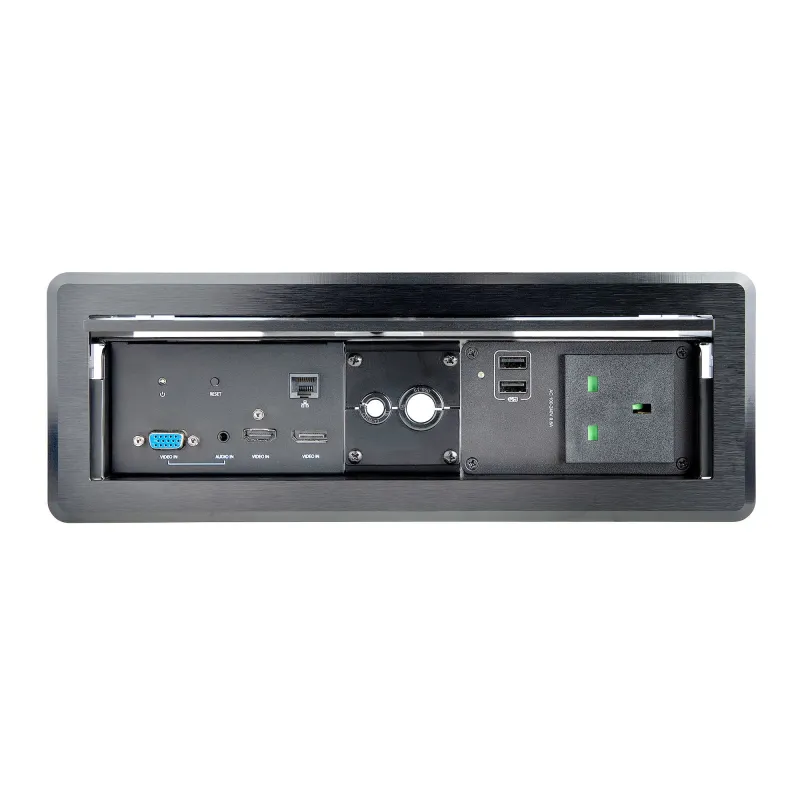

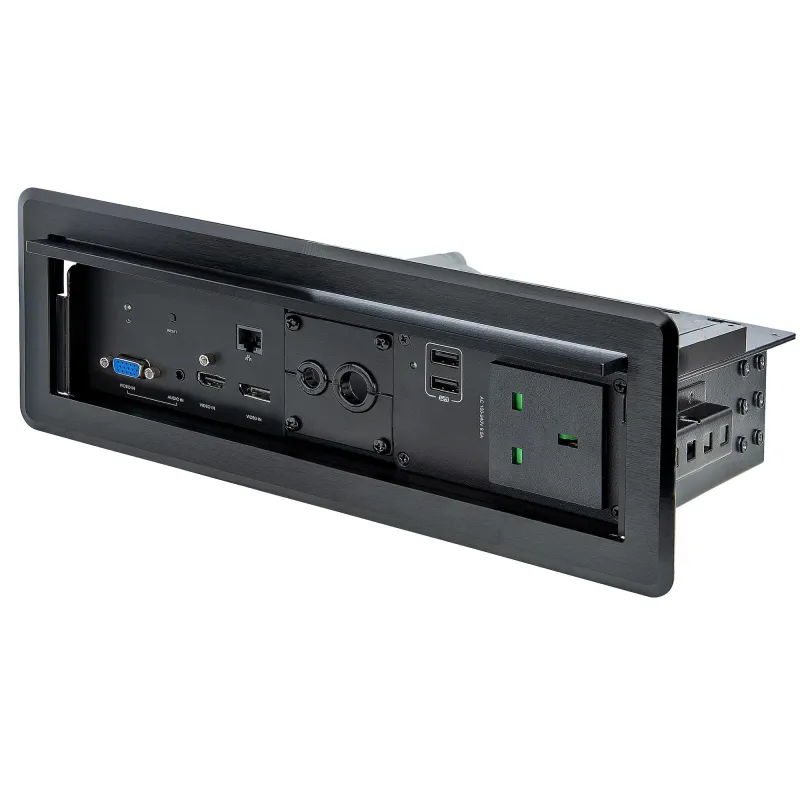

StarTech.com Conference Table Box for AV Connectivity & Power/Charging – 4K HDMI output with HDMI, DP, & VGA Inputs, GbE, Audio – Charging Station w/ 2x USB-A & 1x CE Certified UK Plug
- IN-TABLE AV DOCKING SOLUTION: Setup an in-desk or in-table AV station offering connectivity for HDMI/DisplayPort/VGA laptops to diplays with HDMI/DP inputs; Supports up to 4K at 30Hz / GbE / 3.5mm mic input and 3.5mm stereo audio output
- AUTOMATIC INPUT SWITCHING: Automatically detects devices and switches to the most recent video source for single HDMI setup; Second set of inputs at the bottom of unit for permanent in-room setup
- FLEXIBLE POWER AND CHARGING: AC outlet is positioned for use w/ larger power adapters; USB fast charge ports allow you to power & charge your phones, tablets & high-powered USB devices w/ up to 2.4A per port; EMC 2014/30/EU and CE LVD 2014/35/EU compliant
- COMPATIBILITY: This AV docking station is compatible with conferencing apps like MS Teams/Zoom/SKYPE/Google Meet/others; Compatible with Windows (7+)/macOS (v10.8+)/Linux (v4.15+)/iPadOS/ChromeOS (v55+)
- EASE OF INSTALLATION: Includes manual, cut-out template, and all hardware needed to install in or under work surface; Variable depth mounting to work w/ several table top thicknesses; Route cables under the desk for a clean setup; Black aluminum finish
Architectural Connectivity | 4K | HDMI®, DisplayPort™ and VGA | 1x AC and 2x USB-A
This conference table connectivity box bundle provides power and charging where it’s needed and adds A/V connectivity and network access to your boardroom, classroom or huddle space.
The StarTech.com bundle contains three products to equip you with a convenient out-of-the-box connectivity solution:

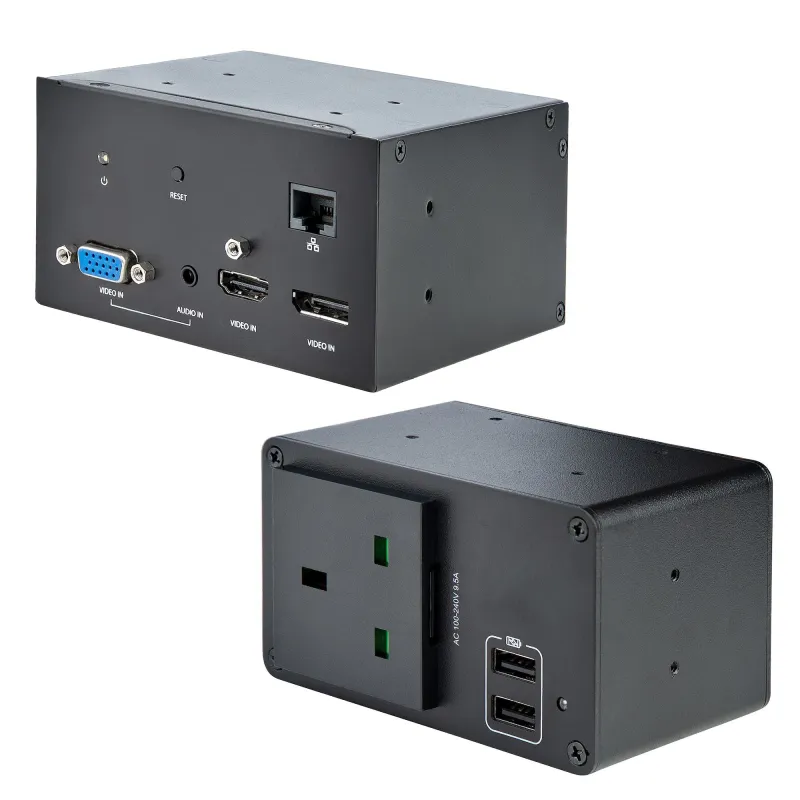

• Power outlet module (MOD4POWERUK)

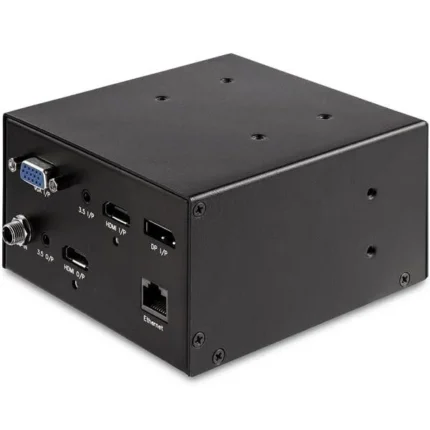

• Audio Video module (MOD4AVHD)
• Dual-module conference table connectivity box (BOX4MODULE)
Power Your Devices and Stay Charged During Meetings
Modern office environments need to support technology more than ever, to keep laptops, phones and tablets connected. During meetings you may need access to power when your battery is running low or a meeting is running long.
This tabletop power hub lets you power a laptop using the AC power outlet and charge phones and tablets using the 2.4 amp USB ports, directly from your conference table.
Easily Connect to a Display
The A/V module simplifies connectivity with automatic switching and conversion. The module lets you present content from your HDMI, DP or VGA laptop on an HDMI display or projector, without the hassle of menu and input selections. And, it automatically switches to the most recently connected or powered-on laptop.
Simple Installation
The conference table insert is easy to install and features a lid that closes to conceal connection points. The cable organizer keeps cable accessible.
KITBXAVHDPUK is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Video | |
|---|---|
| Maximum refresh rate | 60 Hz |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA) |
| Maximum resolution | 3840 x 2160 pixels |
| Network | |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Compatible products | Parade – PS176, Chrontel – CH7035, Explore Micro – EP9442U, TI – TS3DV64 |
| Reset button | Yes |
| LED indicators | Power |
| Housing material | Aluminium, Plastic, Steel |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| USB pass-through | No |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Audio output | 1 |
| Audio input | 2 |
| VGA (D-Sub) input ports | 2 |
| DisplayPorts in | 2 |
| DisplayPort version | 1.2 |
| HDMI output ports quantity | 1 |
| HDMI input ports quantity | 2 |
| HDMI version | 1.4 |
| Power | |
|---|---|
| AC outlet types | BS 1363, C13 coupler |
| Power plug type | Type M |
| AC adapter output current | 2 A |
| AC adapter output voltage | 5 V |
| AC adapter input voltage | 100 – 240 V |
| Power consumption (typical) | 10 W |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 – 85% |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating temperature (T-T) | 0 – 60 °C |
| Weight & dimensions | |
|---|---|
| Package weight | 5.57 kg |
| Package height | 240 mm |
| Package depth | 140 mm |
| Package width | 360 mm |
| Weight | 3.15 kg |
| Height | 110 mm |
| Depth | 165 mm |
| Width | 318 mm |
| Packaging content | |
|---|---|
| Mounting brackets included | Yes |
| Quick start guide | Yes |
| Screws included | Yes |
| Number of screws | 36 |
| AC adapter included | Yes |
| Included power plug types | EU, NA, UK |
| Cables included | AC |
| Logistics data | |
|---|---|
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case height | 240 mm |
| Master (outer) case length | 140 mm |
| Master (outer) case width | 360 mm |
