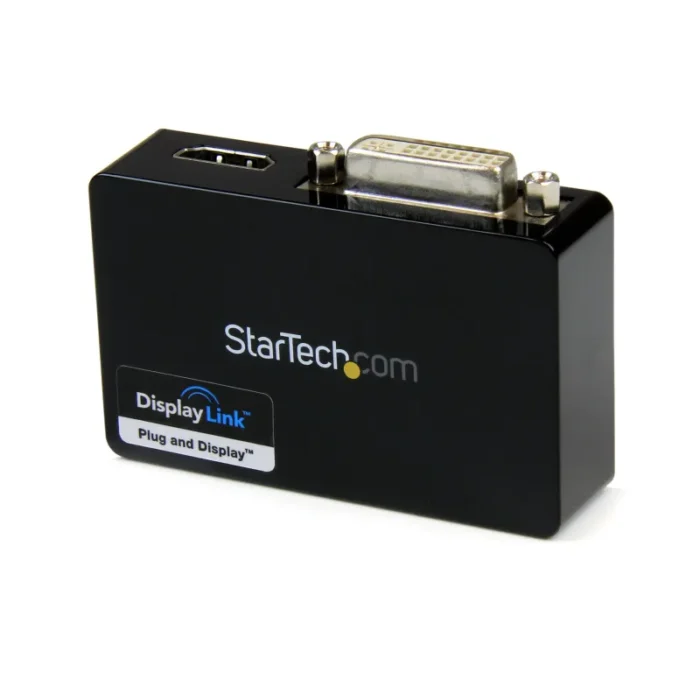

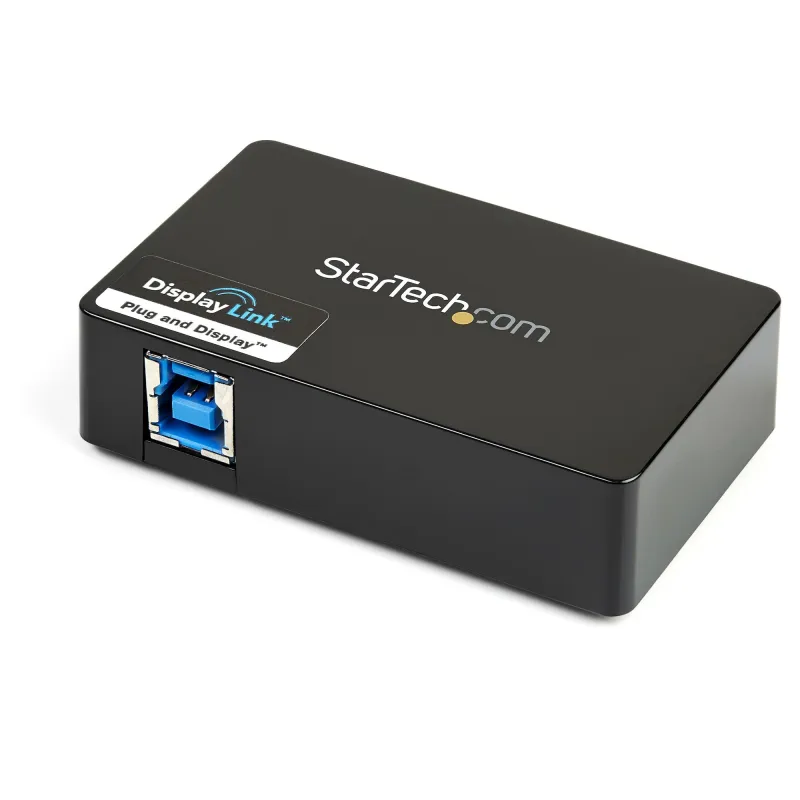

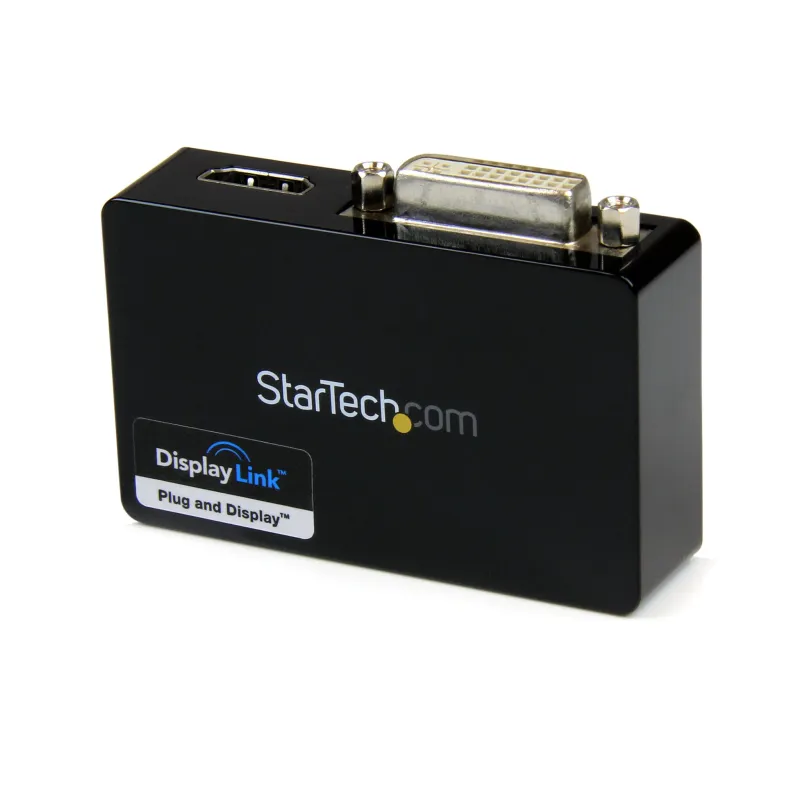

StarTech.com USB 3.0 to HDMI / DVI Adapter – 2048×1152
- SuperSpeed USB 3.0 (5 Gbps) Interface, backward compatible with USB 2.0
- Supports resolutions up to 1920x1080p (Full HD) and 2048×1152
- Quick, easy installation
- Dual Head design supports both HDMI® and DVI-I simultaneously (DVI to VGA adapter included for VGA monitors)
- USB-powered – No external power adapter required
- Choose between Mirrored, Extended or Primary display configurations
USB 3.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Mac & Windows®
The USB32HDDVII USB 3.0 to HDMI® and DVI-I Dual Head Adapter turns an available USB 3.0 port into one DVI-I or VGA port (DVI to VGA adapter included) and one HDMI® output, with support for high-definition 1080p and 1920×1200 video and 5.1 surround sound audio (from HDMI® port only). Each display can simultaneously support the maximum resolution of 2048×1152 @ 60Hz.
The adapter delivers a convenient external video solution that makes it easy to add multi-monitor capability to a USB enabled desktop or laptop computer (optimal performance from USB 3.0, backward compatible with USB 2.0).
Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the USB video adapter functions as a convenient external graphics card that eliminates having to open the computer case for video card installation. The adapter delivers smooth, high definition content to multiple displays and can be used to mirror your primary desktop, showing the same image on each display, or to extend your desktop onto a second or third monitor to double or triple your workspace and increase your productivity.
The USB 3.0 HDMI® and DVI-I Adapter is backed by a StarTech.com 2-year warranty and includes free lifetime technical support.
The StarTech.com Advantage
| Performance | |
|---|---|
| Certification | CE, FCC, TAA, DisplayLink, REACH |
| Chipset | DisplayLInk – DL-3900 |
| USB pass-through | No |
| Audio output channels | 5.1 channels |
| Output colour depth | 16/32 bit |
| Supported graphics resolutions | 720 x 480, 832 x 624, 1024 x 600, 1152 x 870, 1280 x 800, 1280 x 960, 1366 x 768, 1600 x 900, 2048 x 1152, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 480 (WVGA), 800 x 600 (SVGA) |
| Refresh rate at maximum resolution | 60 Hz |
| Maximum resolution | 2048 x 1152 pixels |
| Internal memory | 1024 MB |
| DVI connector type | DVI-I |
| Number of displays supported | 2 |
| DisplayPort output | No |
| HDMI output | Yes |
| DVI output | Yes |
| USB connector gender | Female |
| USB connector type | USB Type-B |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Design | |
|---|---|
| Housing material | Plastic |
| Product colour | Black |
| System requirements | |
|---|---|
| Minimum RAM | 2.05 TB |
| Minimum processor speed | 2.8 GHz |
| Minimum processor family | Core i3 |
| Other operating systems supported | ChromeOS |
| Linux operating systems supported | Ubuntu 18.04 LTS, Ubuntu 20.04 LTS, Ubuntu 22.04 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |

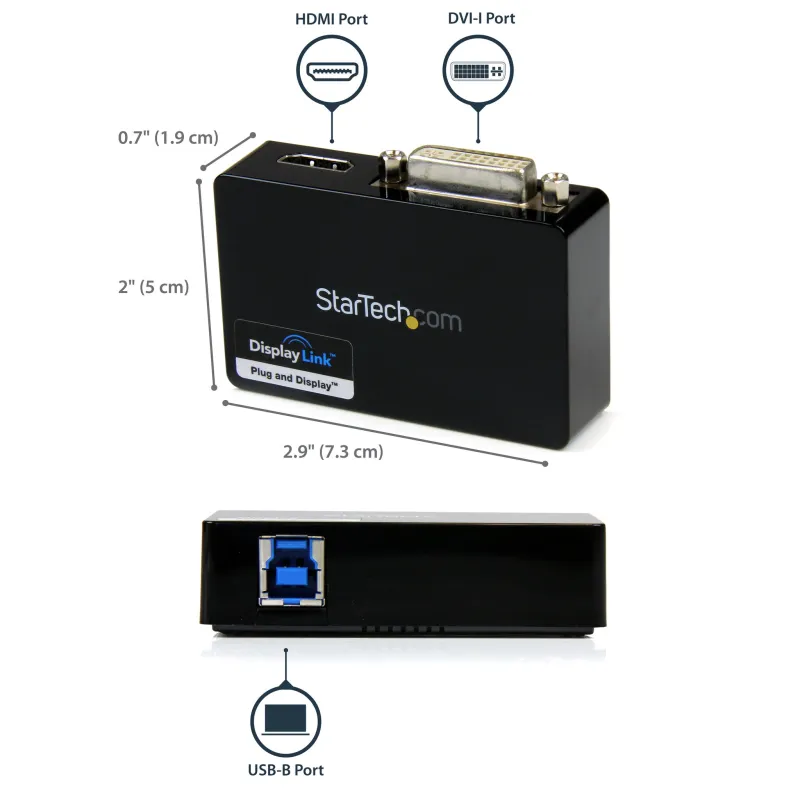

| Weight & dimensions | |
|---|---|
| Weight | 43 g |
| Height | 19 mm |
| Depth | 73 mm |
| Width | 50 mm |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -5 – 40 °C |
| Operating temperature (T-T) | 0 – 55 °C |
| Packaging data | |
|---|---|
| Package weight | 240 g |
| Package height | 40 mm |
| Package depth | 145 mm |
| Package width | 206 mm |
| Packaging content | |
|---|---|
| Cables included | USB |
| Interface adapters included | DVI-I male – VGA female |
| Drivers included | Yes |
| Quick installation guide | Yes |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Master (outer) case height | 475 mm |
| Master (outer) case length | 469 mm |
| Master (outer) case width | 472 mm |
| Products per master (outer) case | 72 pc(s) |
