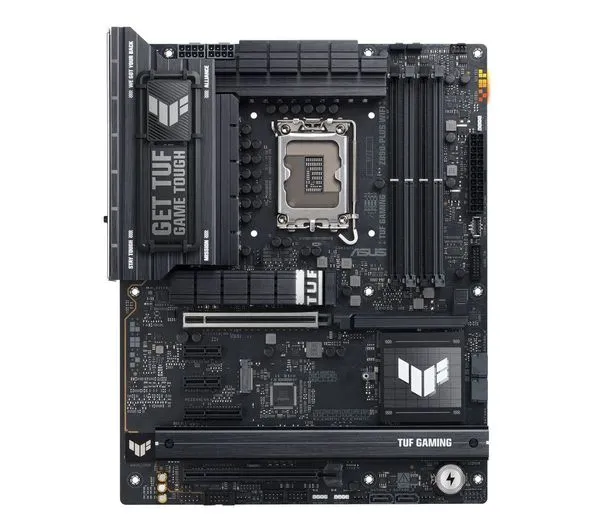

TieDex UK ASUS TUF Gaming Z890-PLUS WIFI LGA1851 Motherboard
This ATX board from ASUS is designed to handle powerful components. It’s ready for Series 2 Intel® Core™ Ultra Processors, so it’s designed for the future of AI computing. You can plug in up to 192 GB of DDR5 RAM and blaze through your workflows. And with PCIe 5.0 and PCIe 4.0 you can have high-speed storage that won’t make you wait around. Got questions? Just ask the ASUS AI Advisor – this AI tech uses natural language to help guide you through PC hardware.
Good to know
– AI overclocking pushes your CPU to the limit when needed – and you don’t have to do anything
– It’s got AI Cooling II, so you can manage the thermals and acoustics with just a click of a button
– Boost your connection with AI Networking II, which lets you switch channel to get the best speeds
– Find just the right spot for your WiFi antenna with Armoury Crate’s Direction Finder
– GameFirst monitors network performance to help to reduce latency
– Its built-in NPU speeds up AI tasks like cooling and performance tweaks
ASUS TUF Gaming Z890-PLUS WIFI LGA1851 Motherboard, Form factor: ATX, Socket: Intel® 1851, Chipset: Intel® Z890, Memory: DIMM x 4 / Max RAM: 192 GB DDR5, 3 year guarantee
Basic Specifications
- Manufacturer’s Part Number
- AUMBZ890PLUSTUFWI
- EAN
- 4711387763926
Overview
- Form factor
- ATX
- Socket
- Intel® LGA1851
- Chipset
- Intel® Z890
- Processor models supported
- Intel® Core™ Ultra Processors (series 2)
- Operating systems supported
- Windows 11
- Memory slots
- 4 x DIMM (Max RAM: 192 GB)
- Memory standard
- DDR5
- Cooling features
- Fan Xpert 4 (with AI Cooling II)
General
- Colour
- Black
- Software included
- – Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– ASUS GlideX
– TUF GAMING CPU-Z
– TurboV Core
– Norton 360 for Gamers (60 Days Free Trial)
– WinRAR (40 Days Free Trial)
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS MyHotkey
– FlexKey
– NPU Boost - Box contents
- – ASUS TUF Gaming Z890-PLUS WIFI LGA1851 Motherboard
– SATA 6Gb/s cables x 2
– ASUS WiFi Q-Antenna x 1
– M.2 Q-Slide package x 1
– M.2 rubber packages x 1
– Screw package for M.2 SSD x 1
– TUF GAMING sticker x 1
– Documentation
– Quick start guide - Dimensions
- 50 x 244 x 305 mm (H x W x D)
- Weight
- 1.67 kg
- Manufacturer’s guarantee
- 3 years
External connectivity
- Video output
- – HDMI x 1
– DisplayPort x 1 - USB
- – USB Type-C x 2
– USB 3.2 x 8
– USB 2.0 x 2 - Audio
- 3.5 mm jack x 5
- LAN
- – Intel® 2.5Gb Ethernet x 1
– ASUS LANGuard - Other external connections
- – WiFi module x 1
– S/PDIF x 1
Internal connectivity
- Expansion slots
- – PCIe 5.0 (x16) x 1
– PCIe 4.0 (x16) x 1 (support x4 mode)
– PCIe 4.0 (x4) x 1
– PCIe 4.0 (x1) x 2 - Storage slots
- – SATA x 4 (6 GB/s)
– M.2 x 4 - Cooling
- – 4-pin CPU Fan header x 1
– 4-pin CPU OPT Fan header x 1
– 4-pin AIO Pump header x 1
– 4-pin Chassis Fan headers x 4 - Power
- – 24-pin main power x 1
– 8-pin 12 V power x 2 - Case
- – Power LED x 1
– QLED x 1 - Buttons
- – Power
– Clear CMOS
– BIOS FlashBack - BIOS
- – UEFI AMI BIOS
– Flash ROM (256 MB) - USB
- – USB Type-C x 2
– USB 3.2 x 8
– USB 2.0 x 2 - Other internal connections
- – Addressable Gen 2 headers x 3
– Aura RGB header x 1
– Chassis Intrusion header x 1
– Clear CMOS header x 1
– COM Port header x 1
– Front Panel Audio header (F_AUDIO) x 1
– S/PDIF Out header x 1
– 10-1 pin System Panel header x 1
