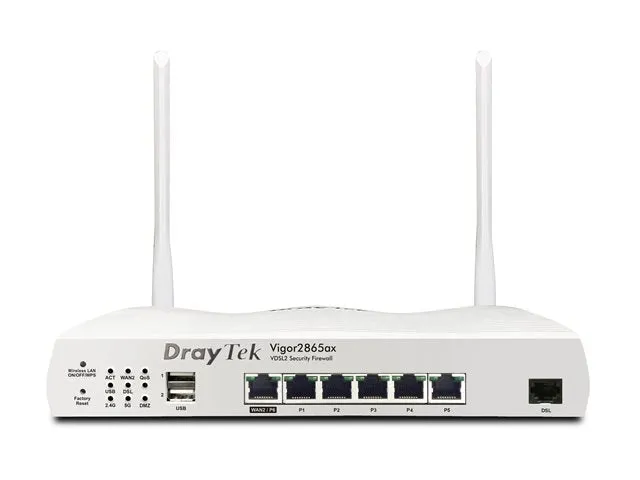

TieDex UK Draytek Vigor 2865ax – wireless router – DSL modem – Wi-Fi 6 – desktop, wall-mountable
Draytek Vigor 2865ax – Wireless router – DSL modem 6-port switch – 1GbE, PPP – WAN ports: 2 – Wi-Fi 6 – Dual Band – wall-mountable
Basic Specifications
- Manufacturer’s Part Number
- V2865AX-K
- EAN
- 4710484743862
- Manufacturer Warranty
- 2-year warranty
- Weight
- 780 g
- Product Description
- Draytek Vigor 2865ax – wireless router – DSL modem – Wi-Fi 6 – desktop, wall-mountable
- Model
- Draytek Vigor 2865ax
- Dimensions (WxDxH)
- 24.1 cm x 16.5 cm x 4.4 cm
- Localisation
- United Kingdom, Ireland
- Features
- Firewall protection, NAT support, VPN support, ARP support, load balancing, IGMP snooping, Syslog support, DoS attack prevention, ALG support, port mirroring, E-mail alert, High Availability, WDS support, URL filtering, firmware upgradable, MIMO technology, LAN-to-LAN bridging, WMM support, file sharing, ACL support, IPSec NAT-T, DHCP server, Multiple SSID support, SMS alert, reset button, bandwidth control, DNS server, port triggering, SPIF, 3G/4G USB Dongle Support, anti-spoofing protection, IP-MAC binding, application filtering, tagged VLAN, IGMP proxy, cloud managed, GRE, ToS, DSCP support, MU-MIMO technology, keyword filtering, band steering, failover protection, Web Filtering, policy based routing, Airtime Fairness, client isolation, DMZ support, VLAN Tagging, port-based VLAN, DSCP based ToS, multiple PVC support, DynDNS, WLAN scheduling, WPS button, OpenVPN pass-through, Brute Force Protection
- Device Type
- Wireless router – DSL modem – 6-port switch (integrated)
- Compliant Standards
- IEEE 802.1Q, ANSI T1.413, IEEE 802.1p, IEEE 802.1x, UPnP
- Capacity
- VLANs supported: 16 ¦ Concurrent VPN tunnels: 32 ¦ NAT sessions: 60000 ¦ Concurrent SSL VPN tunnels: 16
- Performance
- VPN throughput (256-bit AES IPSec): 300 Mbps ¦ VPN throughput (SSL): 130 Mbps ¦ NAT throughput: 800 Mbps
- Frequency Band
- 2.4 GHz / 5 GHz
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, PPP, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
- Enclosure Type
- Desktop, wall-mountable
- Routing Protocol
- RIP, BGP, GRE, static IPv4 routing, static IPv6 routing, policy-based routing (PBR)
- Network / Transport Protocol
- PPTP, L2TP, IPSec, PPPoE, DHCP, DNS, Bonjour, DDNS
- WAN Ports Qty
- 2
- VoIP Protocols
- H.323, SIP
- Remote Management Protocol
- SNMP 2, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, TR-069, TR-104
- Digital Signaling Protocol
- ADSL, VDSL, ADSL2, ADSL2+, VDSL2, Vplus 35b
General
- Device Type
- Wireless router – 6-port switch (integrated)
- Enclosure Type
- Desktop, wall-mountable
- Connectivity Technology
- Wireless, wired
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, PPP, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
- Frequency Band
- 2.4 GHz / 5 GHz
- Performance
- VPN throughput (256-bit AES IPSec): 300 Mbps ¦ VPN throughput (SSL): 130 Mbps ¦ NAT throughput: 800 Mbps
- Capacity
- VLANs supported: 16 ¦ Concurrent VPN tunnels: 32 ¦ NAT sessions: 60000 ¦ Concurrent SSL VPN tunnels: 16
- Network / Transport Protocol
- PPTP, L2TP, IPSec, PPPoE, DHCP, DNS, Bonjour, DDNS
- Routing Protocol
- RIP, BGP, GRE, static IPv4 routing, static IPv6 routing, policy-based routing (PBR)
- Remote Management Protocol
- SNMP 2, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, TR-069, TR-104
- Encryption Algorithm
- DES, Triple DES, MPPE, AES, SSL, SHA-1, IKEv2, 256-bit SHA
- Authentication Method
- RADIUS, X.509 certificates, TACACS+, LDAP, internal user database, XAUTH authentication
- Wi-Fi Rating
- AX3000
- Features
- Firewall protection, NAT support, VPN support, ARP support, load balancing, IGMP snooping, Syslog support, DoS attack prevention, ALG support, port mirroring, E-mail alert, High Availability, WDS support, URL filtering, firmware upgradable, MIMO technology, LAN-to-LAN bridging, WMM support, file sharing, ACL support, IPSec NAT-T, DHCP server, Multiple SSID support, SMS alert, reset button, bandwidth control, DNS server, port triggering, SPIF, 3G/4G USB Dongle Support, anti-spoofing protection, IP-MAC binding, application filtering, tagged VLAN, IGMP proxy, cloud managed, GRE, ToS, DSCP support, MU-MIMO technology, keyword filtering, band steering, failover protection, Web Filtering, policy based routing, Airtime Fairness, client isolation, DMZ support, VLAN Tagging, port-based VLAN, DSCP based ToS, multiple PVC support, DynDNS, WLAN scheduling, WPS button, OpenVPN pass-through, Brute Force Protection
- Compliant Standards
- IEEE 802.1Q, ANSI T1.413, IEEE 802.1p, IEEE 802.1x, UPnP
- Built-in Devices
- Led panel
- Status Indicators
- WAN, DMZ, link/activity, USB, VPN, DSL
Communications
- Type
- DSL modem
- Digital Signaling Protocol
- ADSL, VDSL, ADSL2, ADSL2+, VDSL2, Vplus 35b
- Protocols & Specifications
- ITU G.992.1 (G.DMT), ITU G.992.3 Annex A, ITU G.993.2, ITU G.992.5 Annex A, ITU G.993.5
- Max Transfer Rate
- 300 Mbps
Dimensions & Weight
- Width
- 24.1 cm
- Depth
- 16.5 cm
- Height
- 4.4 cm
- Weight
- 780 g
Miscellaneous
- Included Accessories
- 2 aerials
- Cables Included
- 1 x network cable – 2 m
- Localisation
- United Kingdom, Ireland
Manufacturer Warranty
- Service & Support
- Limited warranty – 2 years
Expansion / Connectivity
- Interfaces
- LAN: 5 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ WAN: 1 x VDSL2 / ADSL2+ – RJ-11 ¦ USB 2.0: 2 x 4 pin USB Type A
Power
- Power Device
- External power adapter
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 10 – 90% (non-condensing)
Software / System Requirements
- OS Provided
- No operating system
Aerial
- Aerial
- External detachable
- Antenna Qty
- 2
Line Properties
- Framing Format
- ANSI T1.413
IP Telephony
- VoIP Protocols
- H.323, SIP
