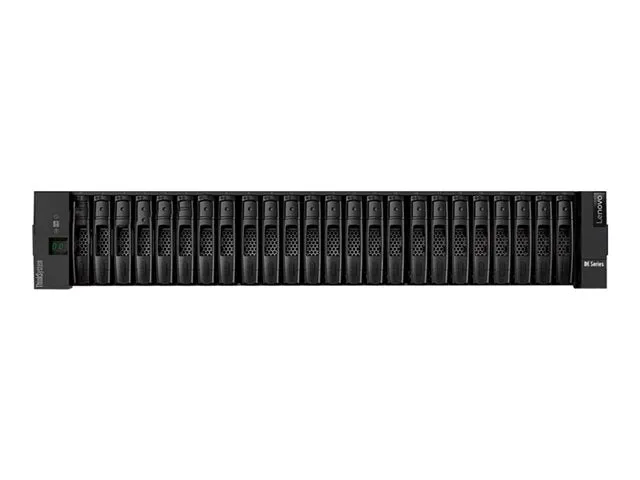

TieDex UK Lenovo ThinkSystem DE4000H Hybrid 2U24 SFF controller enclosure – hard drive array
Lenovo ThinkSystem DE4000H Hybrid 2U24 SFF controller enclosure – Hard drive array – 24 bays (SAS-3) – 16Gb Fibre Channel, SAS 12Gb/s (external) – rack-mountable – 2U
Basic Specifications
- Manufacturer’s Part Number
- 7Y75A00TWW
- EAN
- 8032976149218
- Manufacturer Warranty
- 3-year warranty
- Weight
- 24.59 kg
- Product Description
- Lenovo ThinkSystem DE4000H Hybrid 2U24 SFF controller enclosure – hard drive array
- Model
- Lenovo ThinkSystem DE4000H Hybrid 2U24 SFF controller enclosure
- Dimensions (WxDxH)
- 44.9 cm x 55.3 cm x 8.5 cm
- Localisation
- Worldwide
- Power
- 50/60 Hz
- Hard Drive
- No HDD
- Storage Controller
- RAID (SAS 12Gb/s) – RAID RAID 0, 1, 3, 5, 6, 10
- Device Type
- Hard drive array
- Power Redundancy
- Yes
- Enclosure Type
- Rack-mountable – 2U
- Interface
- 16Gb Fibre Channel, SAS 12Gb/s
- Installed Devices / Modules Qty
- 24 (max)
- Supported Drives
- SAS-3
General
- Device Type
- Hard drive array
- Enclosure Type
- Rack-mountable – 2U
- Localisation
- Worldwide
Storage
- HDD Array External Interface
- 16Gb Fibre Channel, SAS 12Gb/s
Dimensions & Weight
- Width
- 44.9 cm
- Depth
- 55.3 cm
- Height
- 8.5 cm
- Weight
- 24.59 kg
Miscellaneous
- Features
- Application snapshots, Dynamic Disk Pool (DDP) Technology
- Cables Included
- 1 x micro-USB to USB cable – 2 m ¦ 2 x power cable (C13-C14) – 1.5 m
- Compliant Standards
- BSMI CNS 13438 Class A, NOM, EN55024, ICES-003 Class A, UL 60950-1, FCC Part 15 A, GB 17625.1, GB 9254 Class A, CECP, CEL, Directive 2011/65/EU, VCCI Class A, EAC, GB 4943.1, KN32, KN35, CNS 14336-1, EN 55032 Class A, IEC/EN 60950-1, CAN/CSA-C22.2 No. 60950-1, AS/NZS CISPR22 Class A
- Included Accessories
- Rack mounting kit
Manufacturer Warranty
- Service & Support
- Limited warranty – 3 years – on-site
Expansion / Connectivity
- Expansion Bays
- 24 (total) / 24 (free) x hot-swap – 2.5″ SFF
- Expansion Slots
- 2 (total) / 0 (free) x expansion slot
- Interfaces
- 2 x SAS 12Gb/s (output) – 36 pin 4x Mini SAS HD (SFF-8644) ¦ 4 x 16Gb Fibre Channel – SFP+ ¦ 1 x Ethernet 1000 (management) – RJ-45 ¦ 1 x serial (management) – 5 pin Micro-USB Type A ¦ 1 x serial (management) – RJ-45 ¦ 8 x SAS 12Gb/s (input) – 36 pin 4x Mini SAS HD (SFF-8644)
Hard Drive
- Type
- No HDD
Power
- Power Device
- 2 x internal power supply – hot-plug
- Max Supported Qty
- 2
- Power Redundancy
- Yes
- Voltage Required
- 50/60 Hz
- Power Provided
- 913 Watt
- 80 PLUS Certification
- 80 PLUS Platinum
Storage Controller
- Type
- RAID
- Interface Type
- SAS 12Gb/s
- Data Transfer Rate
- 1.2 GBps
- Cache / Buffer Size (Max)
- 32 GB
- RAID Level
- RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10
Environmental Parameters
- Min Operating Temperature
- 5 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 8 – 90% (non-condensing)
Chassis
- Supported Devices / Modules Qty
- 24
- Supported Drives
- SAS-3
