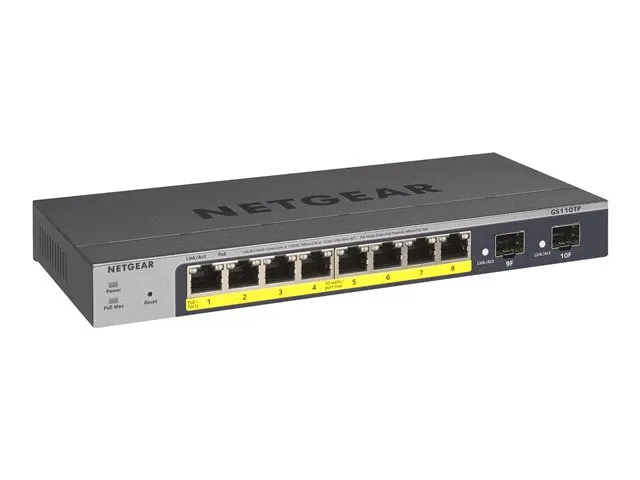

TieDex UK NETGEAR Smart GS110TPv3 – switch – 8 ports – smart
NETGEAR Smart GS110TPv3 – Switch – smart – 8 x 10/100/1000 (PoE) + 2 x SFP – desktop, wall-mountable – PoE+ (55 W) – DC power
Basic Specifications
- Manufacturer’s Part Number
- GS110TP-300EUS
- EAN
- 10606449103790
- Manufacturer Warranty
- NETGEAR lifetime warranty
- Weight
- 610 g
- Product Description
- NETGEAR Smart GS110TPv3 – switch – 8 ports – smart
- Model
- NETGEAR Smart GS110TPv3
- Dimensions (WxDxH)
- 23.6 cm x 10.1 cm x 2.7 cm
- Localisation
- Europe
- Features
- IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, MLD snooping, fanless, LACP, DHCP client, dual firmware images, loop prevention, tagged VLAN, cable test, LLDP-MED, protected ports, EEE, WRR, Advanced QoS, Unknown Storm Control, security slot (Kensington security lock compatible)
- Power
- DC 54 V
- Device Type
- Switch – 8 ports – smart
- Compliant Standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
- Capacity
- Packet buffer size: 512 KB ¦ ACL entries (ingress): 100 ¦ VLANs supported: 64 ¦ IPv4 routes (static): 32
- MAC Address Table Size
- 8K entries
- Subtype
- Gigabit Ethernet
- Performance
- Switching fabric bandwidth: 20 Gbps ¦ Forwarding performance (64-byte packet size): 14.8 Mpps
- Routing Protocol
- IGMPv2, IGMP, IGMPv3, static IPv4 routing, MLDv2, MLD
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, IPv6
- Jumbo Frame Support
- 10KB
- Ports
- 8 x 10/100/1000 (PoE) + 2 x SFP
- PoE Budget
- 55 W
- Power Over Ethernet (PoE)
- PoE+
General
- Device Type
- Switch – 8 ports – smart
- Enclosure Type
- Desktop, wall-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE) + 2 x SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 55 W
- Performance
- Switching fabric bandwidth: 20 Gbps ¦ Forwarding performance (64-byte packet size): 14.8 Mpps
- Capacity
- Packet buffer size: 512 KB ¦ ACL entries (ingress): 100 ¦ VLANs supported: 64 ¦ IPv4 routes (static): 32
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 10KB
- Routing Protocol
- IGMPv2, IGMP, IGMPv3, static IPv4 routing, MLDv2, MLD
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, IPv6
- Encryption Algorithm
- TLS 1.2
- Authentication Method
- RADIUS, TACACS+
- Features
- IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, MLD snooping, fanless, LACP, DHCP client, dual firmware images, loop prevention, tagged VLAN, cable test, LLDP-MED, protected ports, EEE, WRR, Advanced QoS, Unknown Storm Control, security slot (Kensington security lock compatible)
- Compliant Standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
- Processor
- : 500 MHz
- RAM
- 128 MB
- Flash Memory
- 32 MB
- Status Indicators
- Port status, PoE, link/activity/speed
Dimensions & Weight
- Width
- 23.6 cm
- Depth
- 10.1 cm
- Height
- 2.7 cm
- Weight
- 610 g
Miscellaneous
- Included Accessories
- Wall mounting kit
- MTBF
- 1,200,041 hours
- Localisation
- Europe
Manufacturer Warranty
- Service & Support
- Limited warranty – replacement – lifetime – response time: next business day ¦ Limited warranty – power supply – 2 years ¦ Technical support – phone consulting – 90 days
Expansion / Connectivity
- Interfaces
- 8 x 1000Base-T RJ-45 PoE+ ¦ 2 x 1000Base-X SFP
Power
- Power Device
- External power adapter
- Voltage Required
- DC 54 V
- Power Consumption Operational
- 69.5 Watt
- Power Consumption Stand by
- 4.3 Watt
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 95% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 95% (non-condensing)
