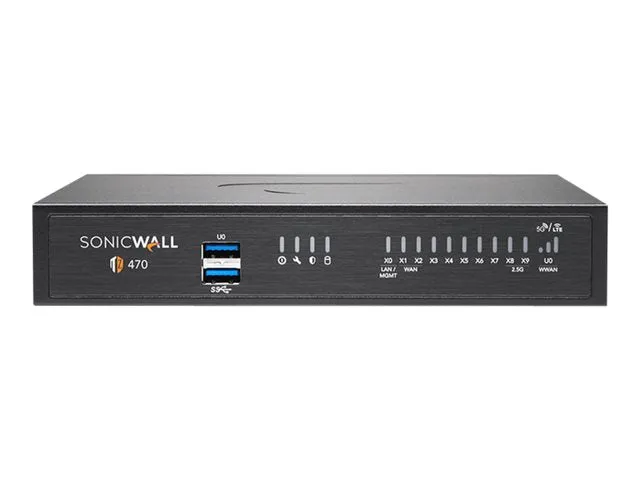

TieDex UK SonicWall TZ470 – Essential Edition – security appliance – with 3 years Security Suite
SonicWall TZ470 – Essential Edition – security appliance – with 3 years Security Suite – 1GbE, 2.5GbE – desktop
Basic Specifications
- Manufacturer’s Part Number
- 02-SSC-6797
- EAN
- 0758479267973
- Weight
- 830 g
- Product Description
- SonicWall TZ470 – Essential Edition – security appliance – with 3 years Security Suite
- Model
- SonicWall TZ470
- Dimensions (WxDxH)
- 19 cm x 13.5 cm x 3.5 cm
- Power
- AC 120/230 V (50/60 Hz)
- Device Type
- Security appliance
- Pricing Type
- SonicWALL Secure Upgrade Plus Program (3 years option)
- Bundled Services
- 3 years Security Suite
- Form Factor
- Desktop
- Capacity
- Virtual interfaces (VLANs): 128 ¦ SSL VPN licences: 2 (maximum 150) ¦ VPN tunnels (site-to-site): 150 ¦ IPSec VPN clients: 5 (maximum 200) ¦ SPI connections: 1000000 ¦ DPI connections: 250000 ¦ DPI SSL connections: 35000 ¦ Single Sign-On (SSO) users: 2500 ¦ Manageable access points: 32
- Performance
- Firewall throughput: 3.5 Gbps ¦ Threat prevention throughput: 1.5 Gbps ¦ Application throughput: 2 Gbps ¦ IPS throughput: 2 Gbps ¦ Anti-malware throughput: 1.5 Gbps ¦ TLS/SSL inspection and decryption throughput: 600 Mbps ¦ VPN throughput (IPSec): 1.5 Gbps ¦ Connection rate: 12000 connections per second
- Data Link Protocol
- Gigabit Ethernet, 2.5 Gigabit Ethernet
- VoIP Protocols
- SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5
General
- Device Type
- Security appliance
- Bundled Services
- 3 years Security Suite
- Width
- 19 cm
- Depth
- 13.5 cm
- Height
- 3.5 cm
- Weight
- 830 g
Miscellaneous
- MTBF
- 46 years
- Compliant Standards
- FIPS 140-2 Level 2, ICSA Firewall certified, ICSA Antivirus, Common Criteria, FCC Class B certified, ICES Class B, EMC, LVD, RoHS, C-Tick, VCCI Class B, UL, cUL, TUV GS, CB, WEEE, REACH, BSMI, KCC, MSIP, CoC
Networking
- Form Factor
- Desktop
- Connectivity Technology
- Wired
- Data Link Protocol
- Gigabit Ethernet, 2.5 Gigabit Ethernet
- Network / Transport Protocol
- TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP
- Routing Protocol
- OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR)
- Remote Management Protocol
- SNMP 2, SNMP 3, HTTP, HTTPS, CLI, SSH
- Performance
- Firewall throughput: 3.5 Gbps ¦ Threat prevention throughput: 1.5 Gbps ¦ Application throughput: 2 Gbps ¦ IPS throughput: 2 Gbps ¦ Anti-malware throughput: 1.5 Gbps ¦ TLS/SSL inspection and decryption throughput: 600 Mbps ¦ VPN throughput (IPSec): 1.5 Gbps ¦ Connection rate: 12000 connections per second
- Capacity
- Virtual interfaces (VLANs): 128 ¦ SSL VPN licences: 2 (maximum 150) ¦ VPN tunnels (site-to-site): 150 ¦ IPSec VPN clients: 5 (maximum 200) ¦ SPI connections: 1000000 ¦ DPI connections: 250000 ¦ DPI SSL connections: 35000 ¦ Single Sign-On (SSO) users: 2500 ¦ Manageable access points: 32
- Status Indicators
- Link/activity, power, secure, SSD activity, test mode
- Features
- SD-WAN support, VLAN support, firewall protection, VPN support, NAT support, Quality of Service (QoS), DHCP server, DHCP relay, Deep Packet Inspection (DPI), content filtering, antivirus analysis, anti-spam protection, Stateful Packet Inspection (SPI), DoS attack prevention, IPv4 support, IPv6 support, Jumbo Frames support, VLAN trunking, port mirroring, bandwidth control, Common Access Card (CAC) reader support, NetFlow, PAT support, 3G/4G USB Dongle Support, Single Sign-On (SSO) support, Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), DDos attack prevention
- Encryption Algorithm
- DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES
- Authentication Method
- RADIUS, LDAP, XAUTH authentication
Dimensions & Weight (Shipping)
- Shipping Weight
- 1.43 kg
Expansion / Connectivity
- Interfaces
- 6 x 1000Base-T – RJ-45 ¦ 2 x 1000Base-T – RJ-45 (WAN) ¦ 2 x 2.5Gb Ethernet – SFP+ ¦ 2 x USB 3.0 – Type A ¦ 1 x console – RJ-45
Power
- Power Device
- External power adapter
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 19.95 Watt
- Power Provided
- 36 Watt
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 5 – 95% (non-condensing)
Software / System Requirements
- OS Provided
- SonicOS 7.0
- Software Included
- SonicWall Essential Protection Service Suite (3 years)
IP Telephony
- VoIP Protocols
- SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5
