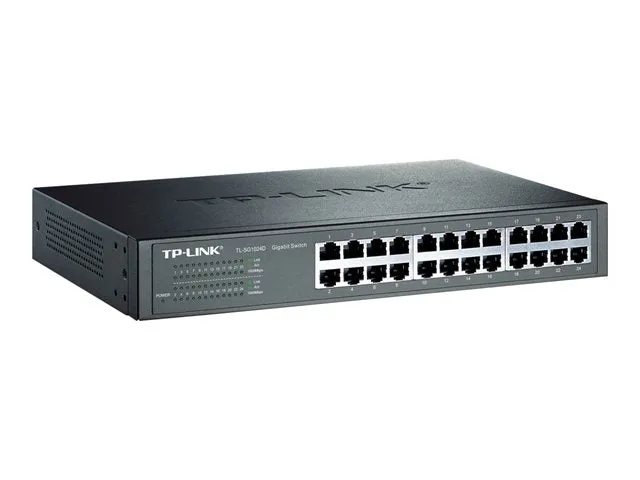

TieDex UK TP-Link TL-SG1024D – switch – 24 ports – rack-mountable
The TL-SG1024D 24-Port Gigabit desktop/rack-mount switch provides an easy way to make the transition to Gigabit Ethernet. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024D can save up to 20% of the power consumption, making it an eco-friendly solution for your business network.
TP-Link TL-SG1024D – Switch – 24 x 10/100/1000 – desktop, rack-mountable
Basic Specifications
- Manufacturer’s Part Number
- TL-SG1024D
- EAN
- 7898544550753
- Product Description
- TP-Link TL-SG1024D – switch – 24 ports – rack-mountable
- Model
- TP-Link TL-SG1024D
- Dimensions (WxDxH)
- 44 cm x 18 cm x 4.4 cm
- Features
- Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, fanless
- Power
- AC 120/230 V (50/60 Hz)
- Device Type
- Switch – 24 ports
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3x
- MAC Address Table Size
- 8K entries
- Subtype
- Gigabit Ethernet
- Performance
- Switching capacity: 48 Gbps ¦ Forwarding performance: 35.7 Mpps
- Enclosure Type
- Rack-mountable 1U
- Jumbo Frame Support
- 10KB
- Ports
- 24 x 10/100/1000
- Interfaces
- Gigabit Ethernet
General
- Device Type
- Switch – 24 ports
- Enclosure Type
- Desktop, rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000
- Performance
- Switching capacity: 48 Gbps ¦ Forwarding performance: 35.7 Mpps
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 10KB
- Features
- Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, fanless
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3x
- Status Indicators
- Power, 100M device connected, 1000M device connected, link/activity
Dimensions & Weight
- Width
- 44 cm
- Depth
- 18 cm
- Height
- 4.4 cm
Miscellaneous
- Included Accessories
- Rubber feet
- Rack Mounting Kit
- Included
- Compliant Standards
- FCC, RoHS
Expansion / Connectivity
- Interfaces
- 24 x 1000Base-T RJ-45
Power
- Power Device
- External power adapter
- Voltage Required
- AC 120/230 V (50/60 Hz)
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 – 90% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 – 90% (non-condensing)
