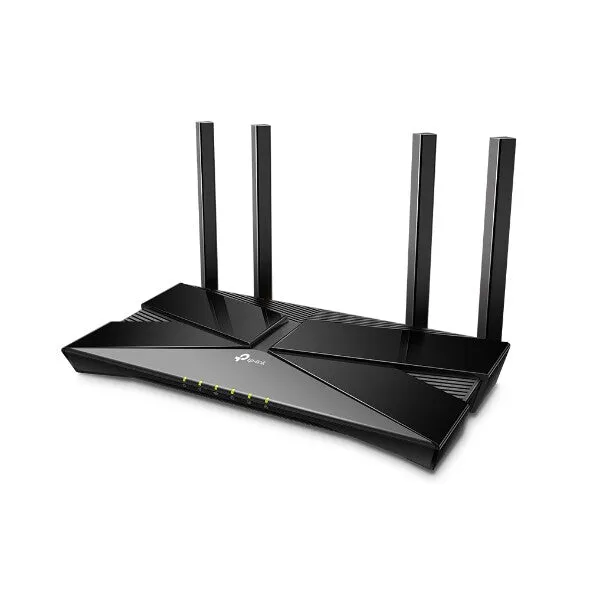

TP-Link Archer AX1800 Dual-Band Wi-Fi 6 Router
- The Next Level of Cybersecurity
- Connect More, Stay Fast
- Super-Fast WiFi
- Easy Setup and Use
Explore the
New Era of WiFi
AX1800 Dual-Band Wi-Fi 6 Router
WiFi 6 Upgrades Everything
The latest generation of WiFi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.
Super-Fast WiFi 6
Transfer HD movies in 10 seconds. WiFi 6’s 1024-QAM improves encoding efficiency by 25% while the improved symbol rate boosts data rate by 11%. Enjoy broader bandwidth while streaming content on multiple devices.
Connect More, Stay Fast
Enjoy smooth gaming, video streaming, and live feeds simultaneously. OFDMA strengthens your WiFi by allowing multiple clients to share one band at the same time, cutting latency and jitter.
WiFi Coverage Throughout
Your Home
4× high-performance external antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates wireless signal strength towards them, especially for those in previously hard-to-reach areas.
TP-Link OneMesh™
Flexibly Create Whole Home WiFi
Want to build a whole-home WiFi? Archer AX23 supports OneMesh to form seamless coverage throughout your home, preventing drops and lag when moving between signals.
WPA3—The Next Level of Cybersecurity
The latest WiFi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home WiFi.
Universal ISP Support
Europe has the most diverse connection types, and TP-Link knows this. Archer AX23 works with all European ISPs by supporting most authentication methods, including the popular L2TP and PPTP methods in your region.
Easy Setup and Use
Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface, you can set up your Archer AX23 in minutes.
The Tether app allows you to manage network settings from any Android or iOS device.
Protect Your Children
Block inappropriate content for your children, and customize a time range for better online habits.
New Connection Notification
You will be notified by your phone when new devices connect. Kick off any suspicious connections and block them. It’s as simple as that.
Easy Firmware Upgrade
Tired of upgrading firmware? OTA updates enable easy firmware upgrades with a click in the management panel. To keep your security and functions always up-to-date, just turn on the auto schedule.
| WAN connection | |
|---|---|
| WAN connection type | RJ-45 |
| SIM card slot | No |
| Ethernet WAN | Yes |
| Wireless LAN features | |
|---|---|
| WLAN data transfer rate (second band) | 1201 Mbit/s |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 1800 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Network | |
|---|---|
| Static route | Yes |
| Dynamic DNS (DDNS) | Yes |
| Port forwarding | Yes |
| Flow control support | Yes |
| Full duplex | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| Management features | |
|---|---|
| WPS push button | Yes |
| Reset button | Yes |
| Bandwidth control | Yes |
| Web-based setup wizard | Yes |
| Web-based management | Yes |
| Security | |
|---|---|
| NAT functionality | Port Forwarding, Port Triggering, UPnP, DMZ |
| Network address translation (NAT) | Yes |
| DMZ support | Yes |
| System event log | Yes |
| URL filtering | Yes |
| IP address filtering | Yes |
| Guest access | Yes |
| Access Control List (ACL) | Yes |
| Security algorithms | 64-bit WEP, 128-bit WEP, WMM, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Protocols | |
|---|---|
| Universal Plug and Play (UPnP) | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| General | |
|---|---|
| Product family | Archer |
| Design | |
|---|---|
| Product colour | Black |
| Product type | Tabletop router |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Warranty card | Yes |
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Certificates | |
|---|---|
| Certification | FCC, CE, RoHS |
| Antenna | |
|---|---|
| Antenna connector type | SMA |
| Antenna design | External |
| Features | |
|---|---|
| Processor cores | 2 |
| Processor frequency | 1500 MHz |
| Built-in processor | Yes |
| Power | |
|---|---|
| Output current | 1 A |
| Output voltage | 12 V |
| Power source type | DC |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| System requirements | |
|---|---|
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Weight & dimensions | |
|---|---|
| Width | 260.2 mm |
| Depth | 135 mm |
| Height | 41.6 mm |
| Packaging data | |
|---|---|
| Package weight | 730 g |
| Package height | 395 mm |
| Package depth | 350 mm |
| Package width | 500 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
