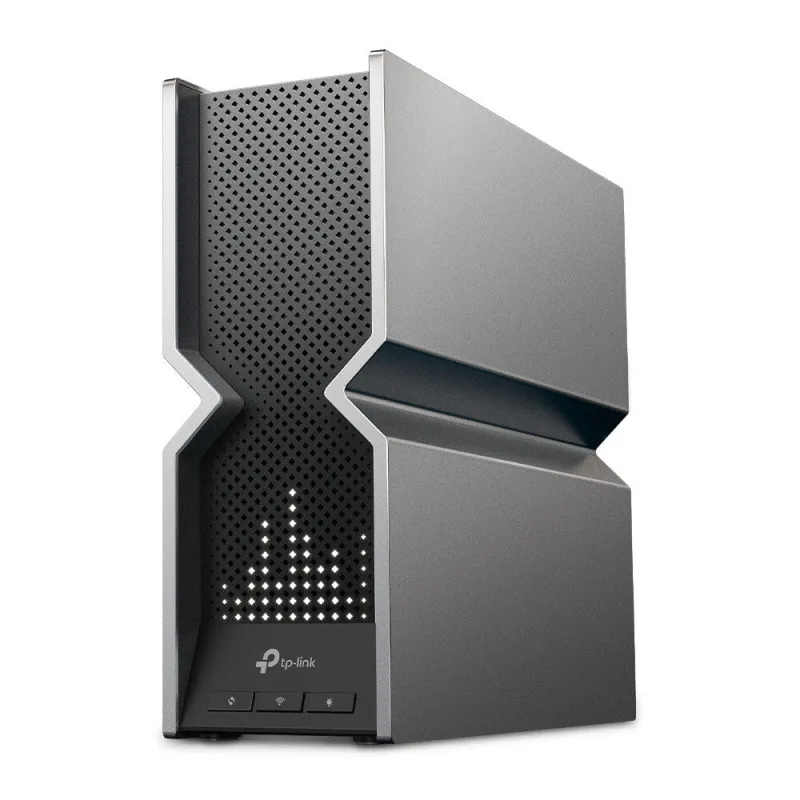

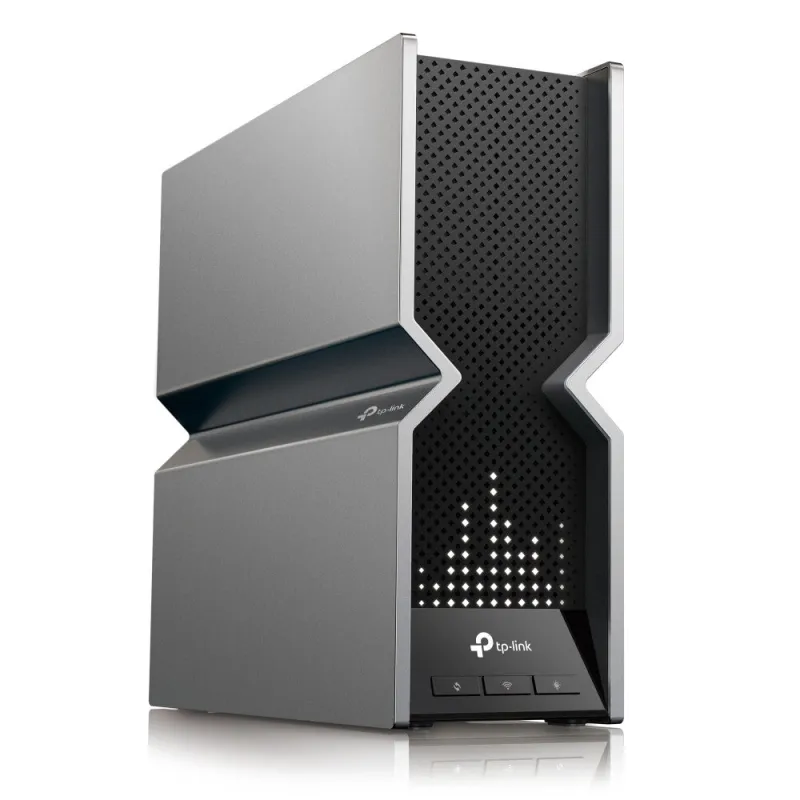

TP-Link Archer BE19000 Tri-Band Wi-Fi 7 Router
- Redefining WiFi Routers: With powerful WiFi 7 performance, lightning-fast wired connections, brand-new design, and LED screen
- Lightning-Fast 19 Gbps Tri-Band WiFi 7: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and lightning-fast downloads
- Multi-Link Operation (MLO): Increases throughput, reduces latency, and improves reliability for emerging applications
- Dual 10G Ports: 1× 10 Gbps Ethernet/Fiber Combo WAN/LAN port + 1× 10 Gbps WAN/LAN port + 4× 2.5 Gbps ports + 1× USB 3.0 port ensure max flexibility and boosted throughput
- Maximized Coverage: Proprietary WiFi optimization and 8× optimally positioned antennas along with Beamforming deliver more capacity, stronger and more reliable connections, and less interference
- EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals
- TP-Link HomeShield: Enhanced security defends against the latest cyber threats
- Easy and Fun to Use: Conveniently manage everything with the Tether app, and visually display the time, weather, and playful graphics with the LED screen
- Great Compatibility: Works with all WiFi generations and devices and all internet providers
Redefining WiFi Routers
BE19000 Tri-Band WiFi 7 Router
– 3.6× Faster Speeds with 19 Gbps Tri-Band WiFi
– Ultra Smooth WiFi with 4× Lower Latency
– Multi-Gig Connectivity with Two 10G Ports
WiFi 7 — WiFi Like Never Before
WiFi 7 has arrived with jaw-dropping performance—offering accelerated throughput, lower latency, stronger anti-jamming, and higher efficiency. Join the pros and experience the sheer performance of the next generation of WiFi.
Multi-Link Operation (MLO)
Increases throughput, reduces latency, and improve reliability
320 MHz Width Channel
Double the width, double the speed
4K-QAM
Packs 20% more data than WiFi 6 for higher speeds
Multi-RUs
Makes full use of every resource for maximum efficiency

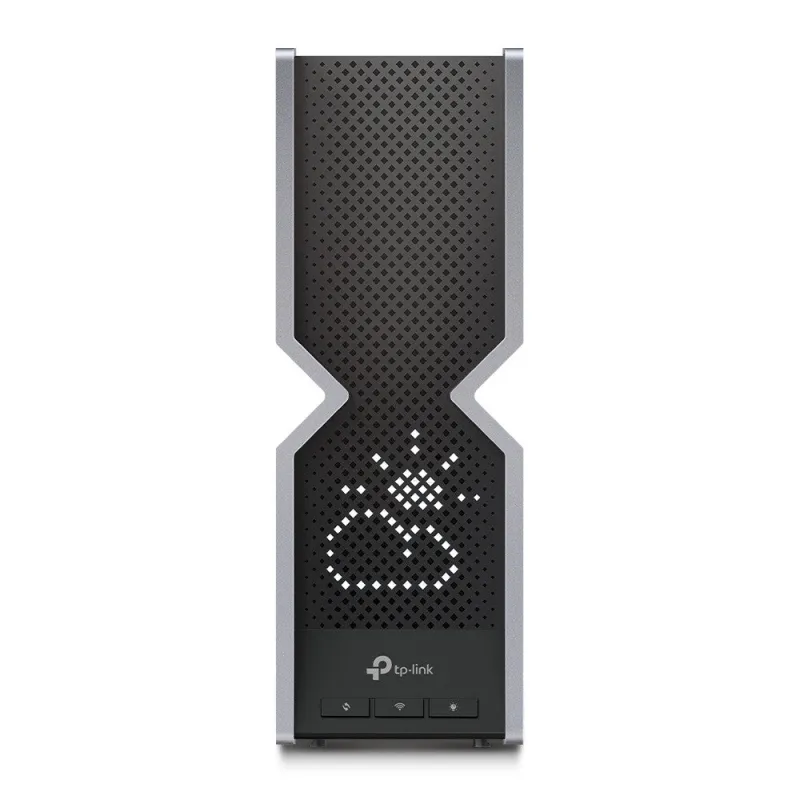

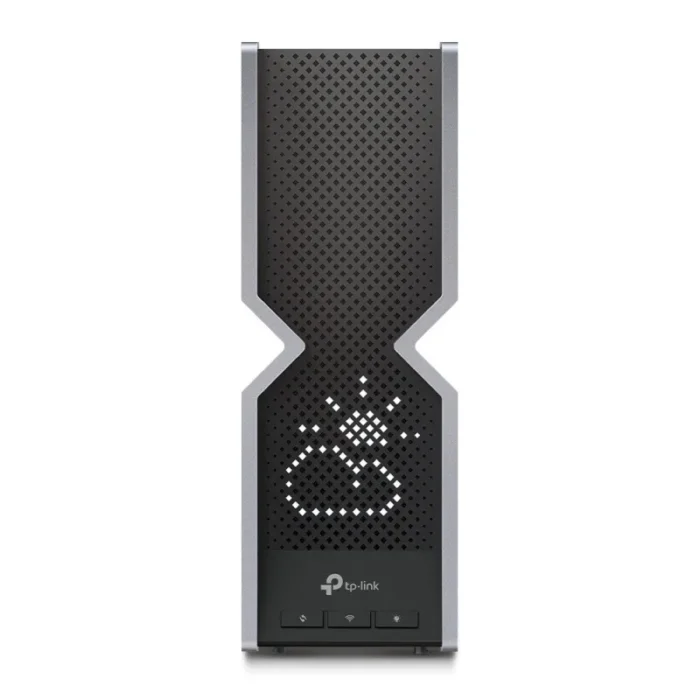

LED Screen for More Fun and Easier Use
Displays the weather, time, text, and even emojis with up to 3000+ customized graphics
High Gain, High Isolation, High Integration, and High Coverage
8× Optimally Positioned Internal Antennas
8× Internal Antennas
Proprietary WiFi optimization and 8× optimally positioned antennas deliver more capacity, stronger and more reliable connections, and less interference.
V-Fold Design
Maintains a sharp aesthetic.
Advanced Case Design
The metallic texture enhances the sense of quality and helps it perfectly integrate into any home environment. A larger heat sink and refined casing keeps the system cool under performance.
Flexibly Create Whole Home Mesh WiFi
Archer BE800 is EasyMesh-compatible. If you have any dead zones at home, just add another EasyMesh router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.
WiFi Dead Zone Killer
Eliminate weak signal areas with WiFi coverage for the whole house
Smart Roaming
Uninterrupted streaming when moving around your home
One WiFi Name
No more switching WiFi network names
Your Security is Our Priority
With TP-Link HomeShield, enjoy advanced security features that deliver a safe environment that protects your family and network’s data and privacy.
Home Network Scanner
Real-time network scanner to detect potential threats and security issues.
Parental Controls
Manage time online and block inappropriate content to keep your family safe online.
Quality of Service
Assign your favorite devices to have the fastest connections for top performance.
Private IoT Network for More Security
Set up a separate WiFi for IoT devices and overlay HomeShield and advanced WPA3 encryption to better protect the security of your home network and IoT devices.
VPN Clients and Server Supported
Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. Archer BE800 can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.
Easy Setup and Use
Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface, you can set up your Archer BE800 in minutes. The Tether app allows you to manage network settings from any Android or iOS device.
Protect Your Children
Block inappropriate content for your children and customize a time range for better online habits.
New Connection Notifications
You will be notified by your phone when new devices connect. Kick off any suspicious connections and block them. It’s as simple as that.
Easy Firmware Upgrades
Tired of upgrading firmware manually? OTA updates simplify firmware upgrades with a click in the management panel. To keep your security and functions always up to date, just turn on the auto schedule.
| WAN connection | |
|---|---|
| WAN connection type | RJ-45 |
| 3G/4G USB modem compatibility | No |
| SIM card slot | No |
| DSL WAN | No |
| Ethernet WAN | Yes |
| Wireless LAN features | |
|---|---|
| Modulation | 4096-QAM |
| WLAN data transfer rate (third band) | 11520 Mbit/s |
| WLAN data transfer rate (second band) | 5760 Mbit/s |
| WLAN data transfer rate (first band) | 1376 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (max) | 19000 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Network | |
|---|---|
| Media server | Yes |
| VPN server | OpenVPN, PPTP, L2TP, WireGuard |
| Built-in FTP server | Yes |
| Number of guest networks (6 GHz) | 1 |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| Dynamic DNS (DDNS) | Yes |
| Port forwarding | Yes |
| Port triggering | Yes |
| Networking standards | IEEE 802.1x |
| Ethernet LAN interface type | Multi-Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB port | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| Management features | |
|---|---|
| MU-MIMO technology | Yes |
| Number of data streams | 4×4 |
| WPS push button | Yes |
| Intelligent Mesh technology | Yes |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Security | |
|---|---|
| Network address translation (NAT) | Yes |
| DMZ support | Yes |
| Filtering | Yes |
| Parental control | Yes |
| DoS attack prevention | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| Guest access | Yes |
| Firewall | Yes |
| Security algorithms | WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3 |
| Protocols | |
|---|---|
| Universal Plug and Play (UPnP) | Yes |
| DHCP client | Yes |
| General | |
|---|---|
| Product family | Archer |
| Design | |
|---|---|
| Built-in display | Yes |
| Product colour | Black, Stainless steel |
| Product type | Tabletop router |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Certificates | |
|---|---|
| Certification | CE, FCC, RoHS |
| Antenna | |
|---|---|
| Antennas quantity | 8 |
| Antenna design | Internal |
| Features | |
|---|---|
| Number of simultaneously connected devices (max) | 100 |
| Power | |
|---|---|
| Output current | 5 A |
| Output voltage | 15 V |
| Power source type | AC |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| System requirements | |
|---|---|
| Browser supported | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ |
| Weight & dimensions | |
|---|---|
| Width | 302 mm |
| Depth | 262.5 mm |
| Height | 96 mm |
| Packaging data | |
|---|---|
| Number of products included | 1 pc(s) |
| Package type | Box |
