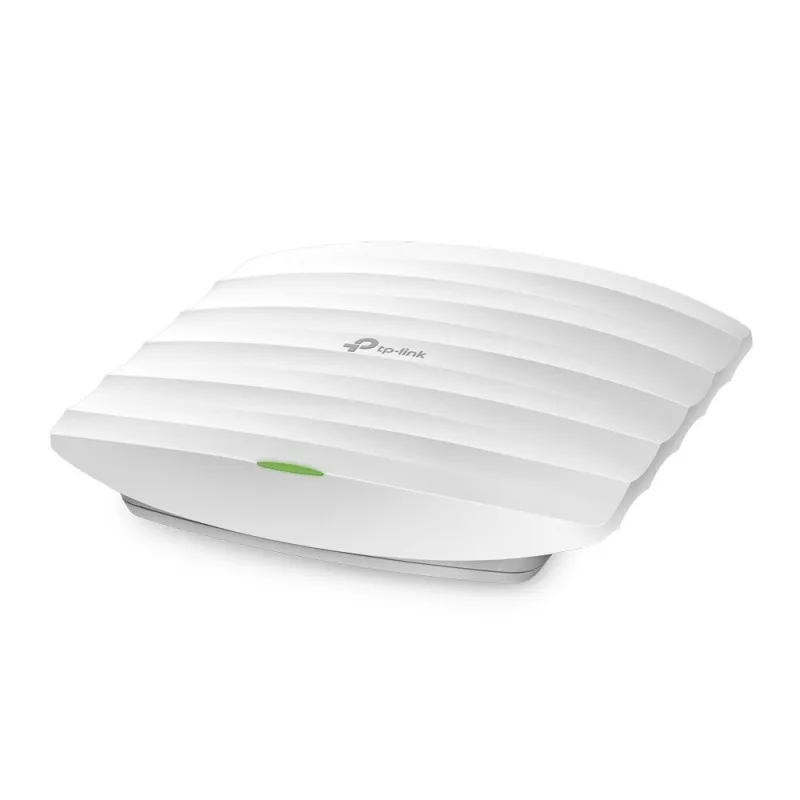

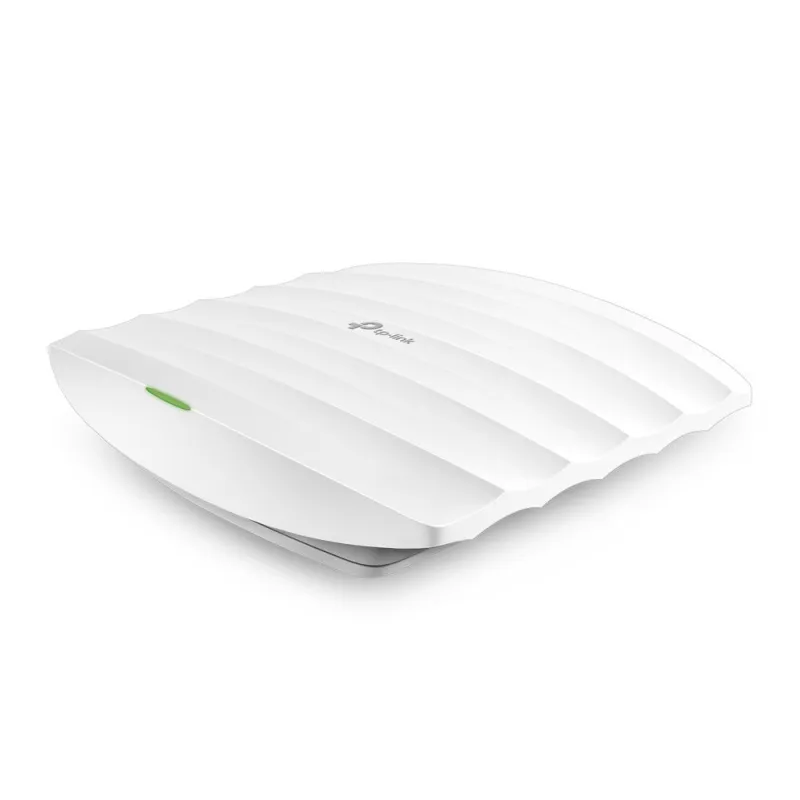

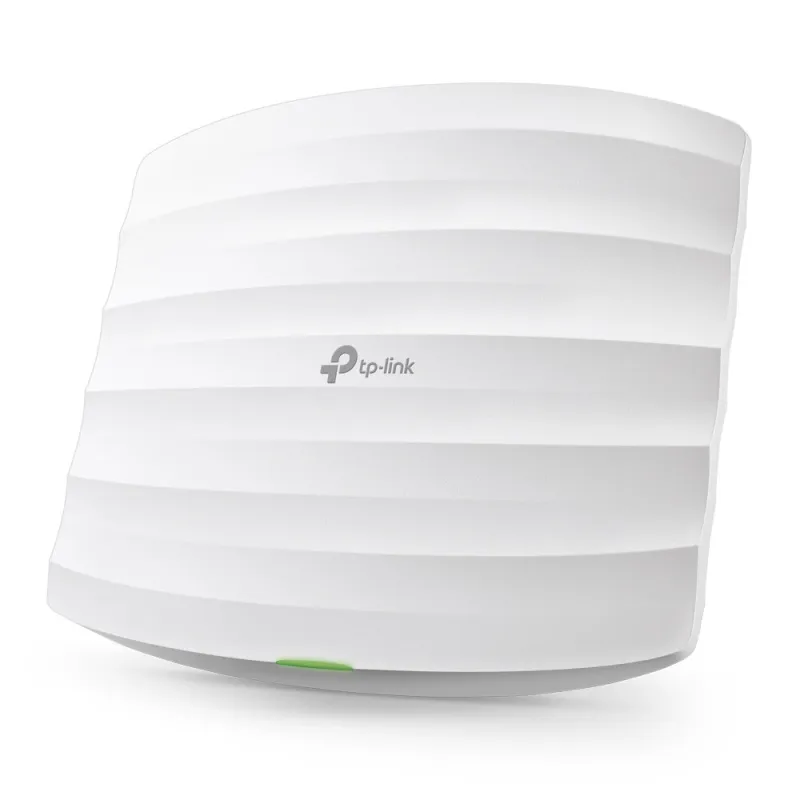

TP-Link Omada 300Mbps Wireless N Ceiling Mount Access Point
- Cloud centralized management and Omada app for ultra convenience and easy management
- Supports Power over Ethernet (802.3af) for convenient and affordable installation
- Simple mounting design for easy attachment to a wall or ceiling
- Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
- Enterprise class Wi-Fi security help to decrease network security threats
- Multi-SSID divides multiple wireless networks for different user types
- Supports management vlan for an enhanced network management
An Affordable, Scalable Business Wi-Fi Solution
300Mbps Wireless N Ceiling Mount Access Point
Cloud Centralized Management
– Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Captive Portal
Guest Network with Facebook and SMS Support
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Easy Mount Design and PoE
Timesaving and Flexible Deployment
The Omada EAP115 is designed for easy installation on any wall or ceiling. The Power over Ethernet (PoE) function allows your network cables to carry electrical power so you minimize on cable clutter. It’s one more hardwiring hassle you don’t have to worry about when operating your centralized management system.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
| Features | |
|---|---|
| Receiver sensitivity | 300M: -71dBm@10% PER150M: -75dBm@10% PER54M: -78dBm@10% PER11M: -93dBm@8% PER6M: -92dBm@10% PER1M: -96dBm@8% PER |
| Transmitting power (CE) | 19 dBm |
| Transmitting power (FCC) | 21 dBm |
| Quality of Service (QoS) support | Yes |
| Wireless isolation | Yes |
| Rate limiting | Yes |
| Virtual LAN features | VLAN mapping |
| VLAN support | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Automatic channel selection | Yes |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency band | 2.4 – 2.4835 GHz |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate | 300 Mbit/s |
| 5 GHz | No |
| 6 GHz | No |
| 2.4 GHz | Yes |
| Security | |
|---|---|
| Access Control List (ACL) | Yes |
| System status alarm | Yes |
| Number of SSID supported | 8 |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| MAC address filtering | Yes |
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SSH, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK |
| Management features | |
|---|---|
| Syslog | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| WAN connection | Ethernet (RJ-45), Wi-Fi |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
|---|---|
| Power consumption (typical) | 5 W |
| Output current | 1 A |
| Output voltage | 12 V |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Design | |
|---|---|
| LED indicators | Yes |
| Reset button | Yes |
| On/off switch | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Product colour | White |
| Placement | Ceiling, Wall |
| Antenna | |
|---|---|
| Antenna gain level (max) | 3 dBi |
| Antennas quantity | 2 |
| Antenna features | Integrated antenna |
| Antenna direction type | Omni-directional |
| Antenna type | Internal |
| Performance | |
|---|---|
| Minimum system requirements | Microsoft Windows 10/8/7/Vista/XP |
| General | |
|---|---|
| Product family | Omada |
| Certificates | |
|---|---|
| Certification | CE, FCC, RoHS |
| Compliance certificates | Federal Communications Commission (FCC), CE, RoHS |
| Weight & dimensions | |
|---|---|
| Height | 47.5 mm |
| Depth | 180 mm |
| Width | 180 mm |
| Packaging data | |
|---|---|
| Package weight | 600 g |
| Package height | 69 mm |
| Package depth | 268 mm |
| Package width | 246 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Mounting kit | Yes |
| PoE adapter included | Yes |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
