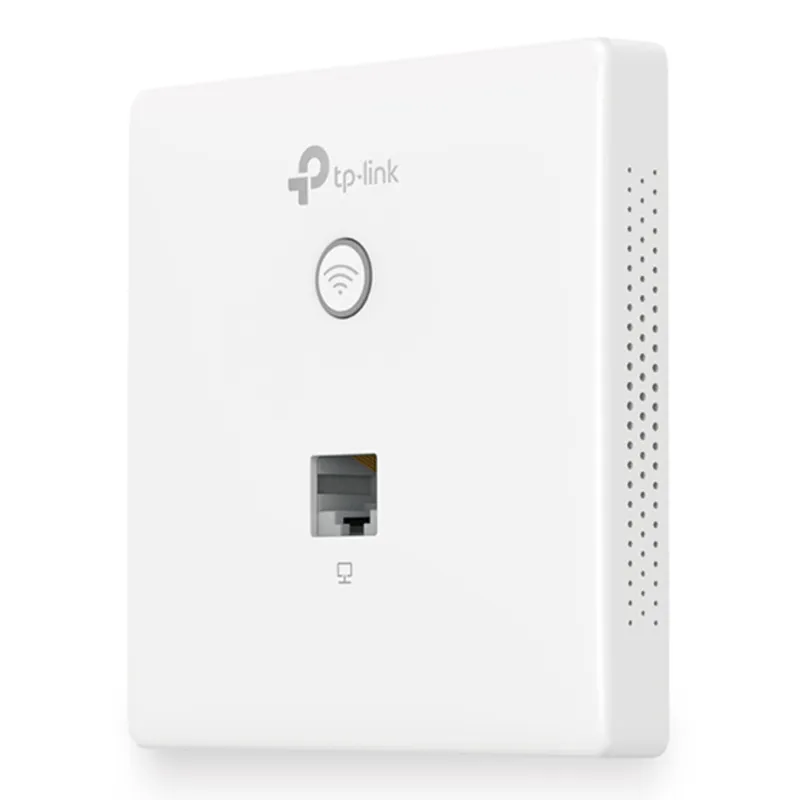

TP-Link Omada 300Mbps Wireless N Wall-Plate Access Point
- Easy-mount construction allows installation into any standard EU-type data wall-box
- Compact, low-profile design fits discreetly with any existing interior style
- Free Auranet Controller Software enables administrators to easily manage hundreds of EAPs
- Support Power over Ethernet (802.3af) for convenient and affordable installation
- Enterprise class Wi-Fi security helps to decrease network security threats
- Captive portal provides one convenient method of authentication for Wi-Fi guests
- Supports management vlan for an enhanced network management
Installation Made Easy
– Detach the faceplate of the junction box* with a screwdriver.
– Remove the faceplate of the EAP.

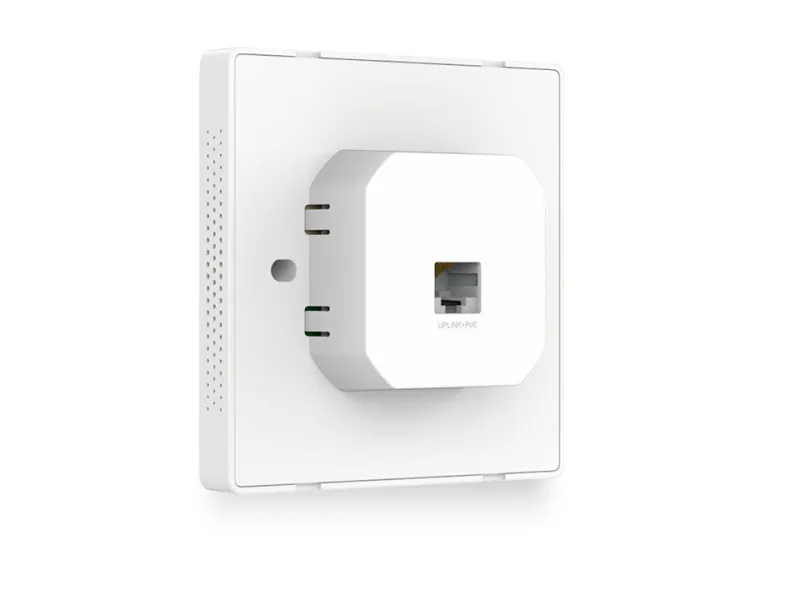

– Connect an in-wall Ethernet cable to the Uplink+POE port.
– Secure the access point to the wall using the nails provided.
– Press the faceplate back into position.
Perfectly Formed
The EAP115-Wall would blend seamlessly into any business setting with a refined, minimalist appearance. A slimline design includes casing that’s just 11 mm in thickness.
Effortless Deployment
With 802.3af Power over Ethernet supported there’s no need for additional wiring. Simply plug in existing Ethernet cables and you’re ready to go.

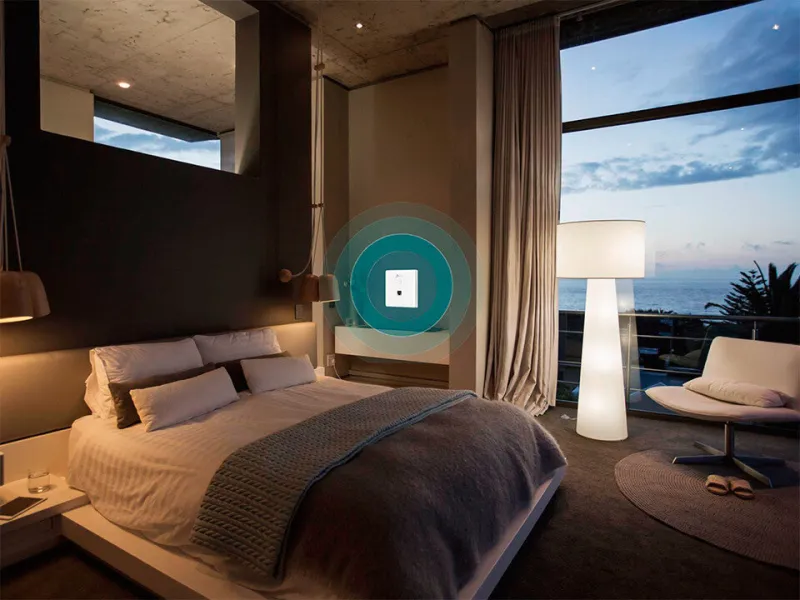

Complete Wireless Coverage
An EAP in each room guarantees a strong wireless signal and allows guests to enjoy their own private Wi-Fi network.
Cloud Centralized Management
– Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
| Features | |
|---|---|
| Transmitting power | 15 dBmW |
| Transmitting power (CE) | 20 dBm |
| Quality of Service (QoS) support | Yes |
| Wireless isolation | Yes |
| Rate limiting | Yes |
| Virtual LAN features | Port-based VLAN, VLAN mapping |
| VLAN support | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Automatic channel selection | Yes |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency band | 2.4 – 2.4835 GHz |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate | 300 Mbit/s |
| 5 GHz | No |
| 6 GHz | No |
| 2.4 GHz | Yes |
| Security | |
|---|---|
| Access Control List (ACL) | Yes |
| Number of SSID supported | 8 |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| MAC address filtering | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Protocols | |
|---|---|
| Management protocols | SNMP, Telnet |
| Management features | |
|---|---|
| Syslog | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| WAN connection | Ethernet (RJ-45) |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
|---|---|
| Power consumption (typical) | 2.8 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Design | |
|---|---|
| Internal | No |
| LED indicators | Yes |
| Reset button | Yes |
| Cable lock slot | No |
| Product colour | White |
| Placement | Wall |
| Antenna | |
|---|---|
| Antenna gain level (max) | 1.8 dBi |
| Antennas quantity | 2 |
| Antenna features | Integrated antenna |
| Antenna direction type | Omni-directional |
| Antenna type | Internal |
| Performance | |
|---|---|
| Compatible operating systems | Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10 |
| General | |
|---|---|
| Product family | Omada |
| Certificates | |
|---|---|
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
|---|---|
| Height | 30.2 mm |
| Depth | 86.8 mm |
| Width | 86.8 mm |
| Packaging data | |
|---|---|
| Package weight | 190 g |
| Package height | 47 mm |
| Package depth | 130 mm |
| Package width | 118 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
