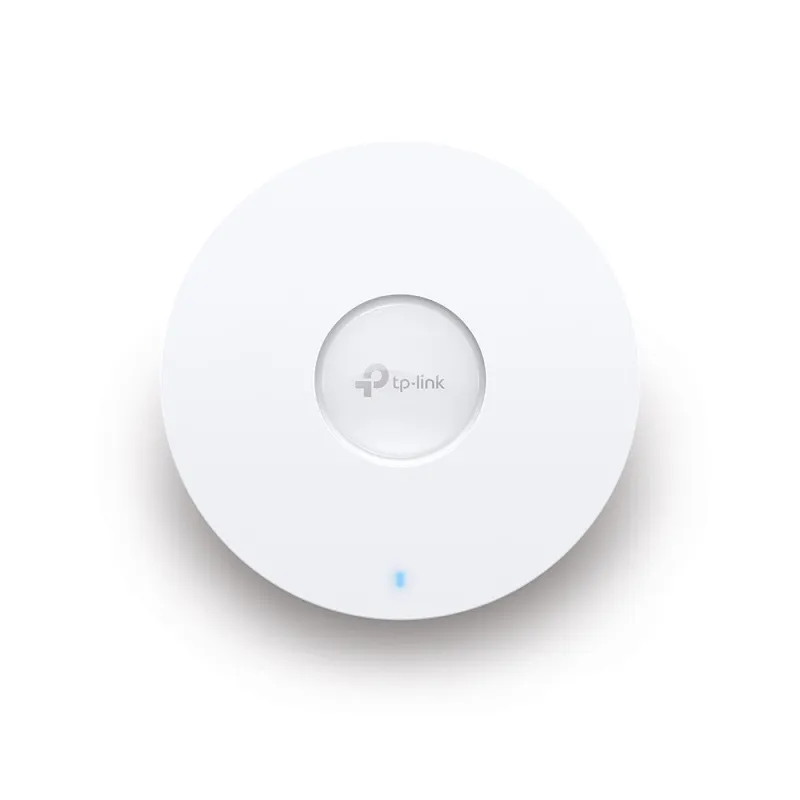

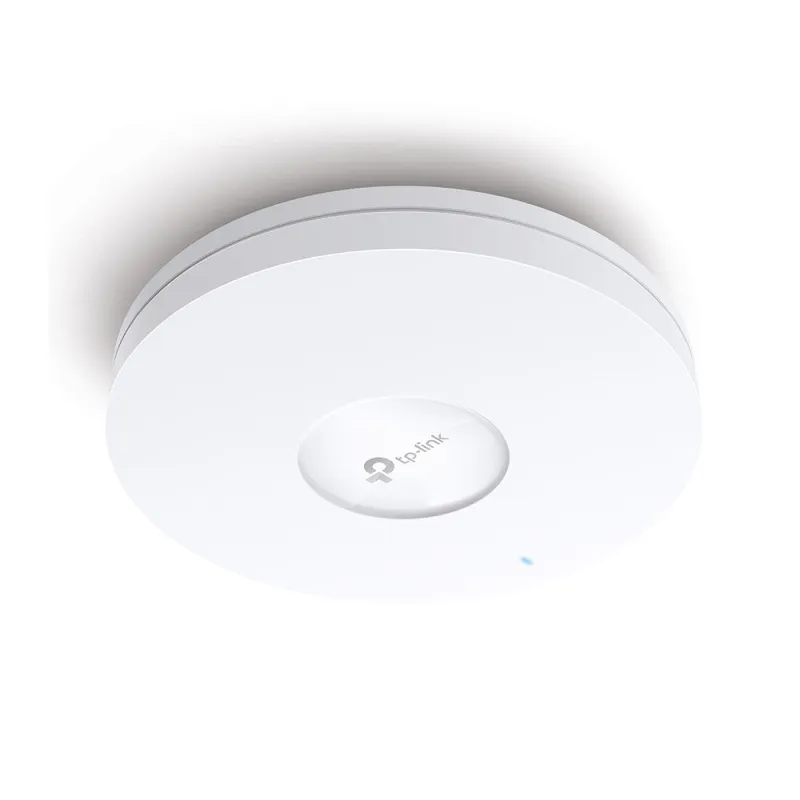

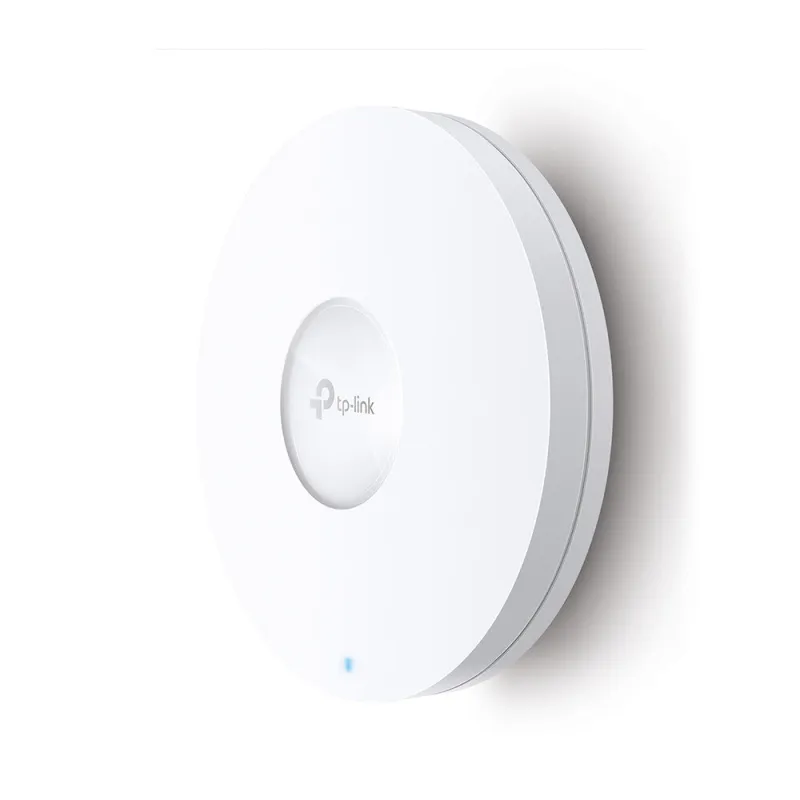

TP-Link Omada AX5400 Ceiling Mount WiFi 6 Access Point
- Blazing-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 4804 Mbps on 5 GHz totals 5378 Mbps WiFi speeds.†
- High-Efficiency WiFi 6: More connected devices can enjoy faster speeds
- Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app
- 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160
- Seamless Roaming: Video streams and voice calls are unaffected as users move between locations
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations
High-End Business WiFi 6 to Power Up Your Business
AX5400 Ceiling Mount Wi-Fi 6 Access Point
AX5400 WiFi 6 Speed
4804 Mbps on 5 GHz
574 Mbps on 2.4 GHz
High-Efficiency WiFi 6
More connected devices can enjoy faster speeds
Centralized Cloud Management
Manage the whole network locally or from the cloud
2.5GE Wired Performance
Boosts overall throughput with a 2.5 Gbps Ethernet port
160 MHz Channel
Double the data at peak transmission times on a single stream with HE160
Auto Channel Selection and Power Adjustment
Optimize overall performance by reducing WiFi interference
Omada Mesh Technology
More flexible and convenient wireless deployment§
Seamless Roaming
Uninterrupted streaming when moving between APs§
PoE+ Powered
Supports both DC (adapter included) and 802.3at PoE+ for flexible installations
Designed for Business Environments
Requiring High-Performance WiFi
High-End Business Wi-Fi 6 Bring Real Power to Your Business
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.
Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.
Auto Channel Selection and Power Adjustment
to Optimize Overall Performance*
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network
Deployment & Higher Performance by Omada Mesh
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.
Always Stay Smooth with Fast Roaming
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
Boosted Network Security and Efficiency
Secure Guest Network with Up to 16 SSIDs
Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.
Boost Business with Facebook WiFi and SMS Login
Captive portal (including SMS, Facebook Wi-Fi, Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.
WPA3 for Worry-Free Open Public Networks
With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.
Band Steering
Automatically moves dual band devices onto the wider 5GHz band for faster connections.
Load Balance
Ensures large numbers of users have smooth network experiences in high-density business networks
Airtime Fairness
Increases average network throughput in heavily congested environments
| Features | |
|---|---|
| BeamForming | Yes |
| Quality of Service (QoS) support | Yes |
| Band steering | Yes |
| Wireless isolation | Yes |
| Rate limiting | Yes |
| VLAN support | No |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Automatic channel selection | Yes |
| Automatic channel scanning | Yes |
| Number of users | 250 user(s) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency band | 2.4 – 5 GHz |
| Ethernet LAN data rates | 2500 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4804 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate | 5400 Mbit/s |
| 5 GHz | Yes |
| 6 GHz | No |
| 2.4 GHz | Yes |
| Security | |
|---|---|
| Access Control List (ACL) | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Number of SSID supported | 16 |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Management features | |
|---|---|
| Firmware upgradeable | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
|---|---|
| Input current | 1.5 A |
| Power over Ethernet (PoE) | Yes |
| Design | |
|---|---|
| LED indicators | Yes |
| Reset button | Yes |
| International Protection (IP) code | IP67 |
| Product colour | White |
| Placement | Ceiling, Wall |
| Antenna | |
|---|---|
| Antenna gain level (max) | 5 dBi |
| Antennas quantity | 6 |
| Antenna direction type | Omni-directional |
| Antenna type | Internal |
| General | |
|---|---|
| Product family | Omada |
| Certificates | |
|---|---|
| Certification | CE, FCC, RoHS |
| Weight & dimensions | |
|---|---|
| Height | 64 mm |
| Depth | 243 mm |
| Width | 243 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
