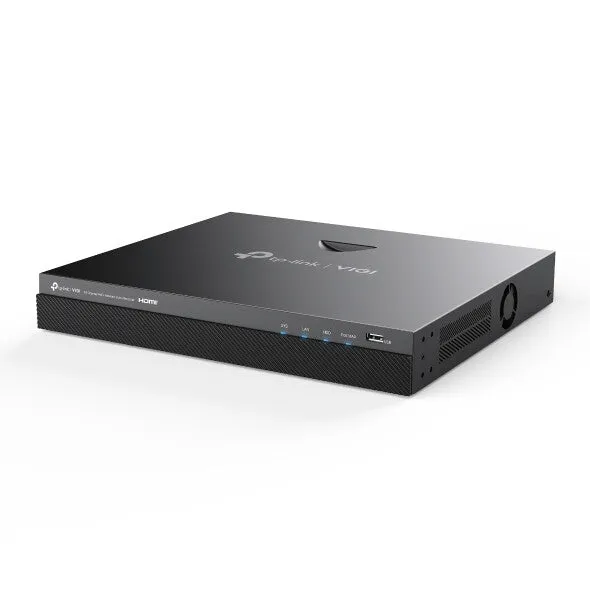

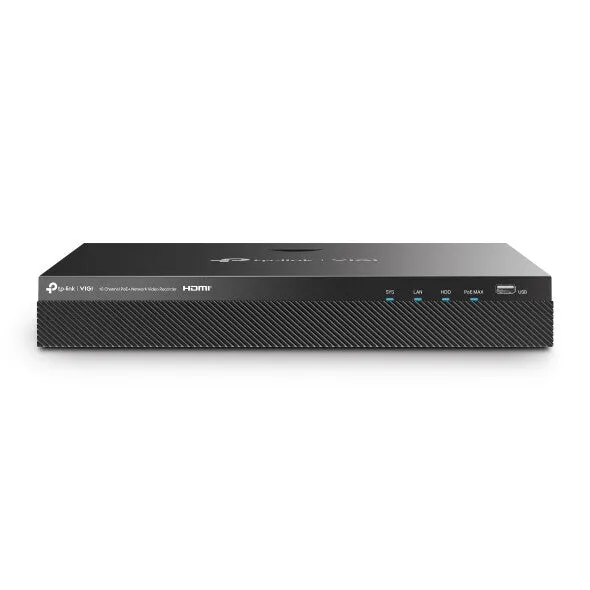

TP-Link VIGI NVR2016H-16MP network video recorder Black
- Video input channels: 16 channels
- 3840 x 2160 pixels
- Input bandwidth: 80 Mbit/s Output bandwidth: 60 Mbit/s
- Maximum storage capacity: 10 TB HDD interface: SATA
- Ethernet LAN (RJ-45) ports: 1 Power over Ethernet (PoE)
- 40 W
- Black
VIGI 16 Channel PoE+ Network Video Recorder
- 16-Channel Live View and 4K HDMI Video Output
- 16x 10/100 Mbps PoE+ Ports with 140 W PoE Budget
- Up to 10-ch @ 3MP (25fps) / 16-ch @ 1080P (25fps) Decoding Capability
- 16-Channel Synchronous Playback
- 320 Mbps Incoming and Outgoing Bandwidth
- 2× SATA Interfaces and 1 Up to 16 TB
- H.265+ Compression Technology
- Alarm In/Out: 6/4
- HDMI and VGA Independent Output
- One-Click System Initialize – VIGI NVRs enable quick camera additions, HDD initialization, and storage scheduling with a single click, reducing setup expenses
| Performance |
| Recording modes |
Manual, Schedule |
| Playback controls |
Yes |
| Maximum frame rate |
30 fps |
| Input bandwidth |
80 Mbit/s |
| Output bandwidth |
60 Mbit/s |
| Playback modes |
Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop |
| Video formats supported |
H.264, H.264+, H.265, H.265+ |
| Audio formats supported |
G.711 A-law, G.711 μ-law, G.726 |
| Video motion detection |
Yes |
| Maximum resolution |
3840 x 2160 pixels |
| Supported resolutions |
HDMI Output Resolution: 1 Channel, Resolution: 1280×720/60Hz, 1280×1024/60Hz, 1440×900/60Hz, 1680×1050/60Hz, 1920×1080/60Hz, 3840×2160/30HzVGA Output Resolution: 1 Channel, Resolution: 1280×720/60Hz, 1280×1024/60Hz, 1440×900/60Hz, 1680×1050/60Hz, 1920×1080/60Hz |
| Video recording modes |
720p, 1080p |
| Number of simultaneously playbacked channels |
16 channels |
| Video input channels |
16 channels |
| Wireless LAN features |
| Wi-Fi |
No |
| Hard drive |
| HDD interface |
SATA |
| Maximum storage capacity |
10 TB |
| Number of HDDs supported |
2 |
| HDD capacity |
0 GB |
| Ports & interfaces |
| Supported network protocols |
UPnP (Plug and Play), NTP (Network Timing) |
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| DC-in jack |
Yes |
| eSATA |
Yes |
| Line-in |
Yes |
| Audio output |
1 |
| Internal SATA ports quantity |
2 |
| eSATA ports quantity |
1 |
| VGA (D-Sub) output ports |
1 |
| USB 2.0 ports quantity |
2 |
| HDMI ports quantity |
1 |
| Power over Ethernet (PoE) ports quantity |
16 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Power over Ethernet (PoE) |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Features |
| Certification |
CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
| Reset button |
Yes |
| Product colour |
Black |
| Power |
| Output current |
2.43 A |
| Total Power over Ethernet (PoE) budget |
140 W |
| Output voltage |
53.5 V |
| Power consumption (max) |
40 W |
| Operational conditions |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating relative humidity (H-H) |
10 – 90% |
| Operating temperature (T-T) |
-10 – 55 °C |
| General |
| Product family |
VIGI |
| Weight & dimensions |
| Package weight |
4.1 kg |
| Weight |
2.1 kg |
| Height |
45 mm |
| Depth |
285 mm |
| Width |
330 mm |
| Packaging content |
| AC adapter included |
Yes |
| Cables included |
AC |
| Quick installation guide |
Yes |
