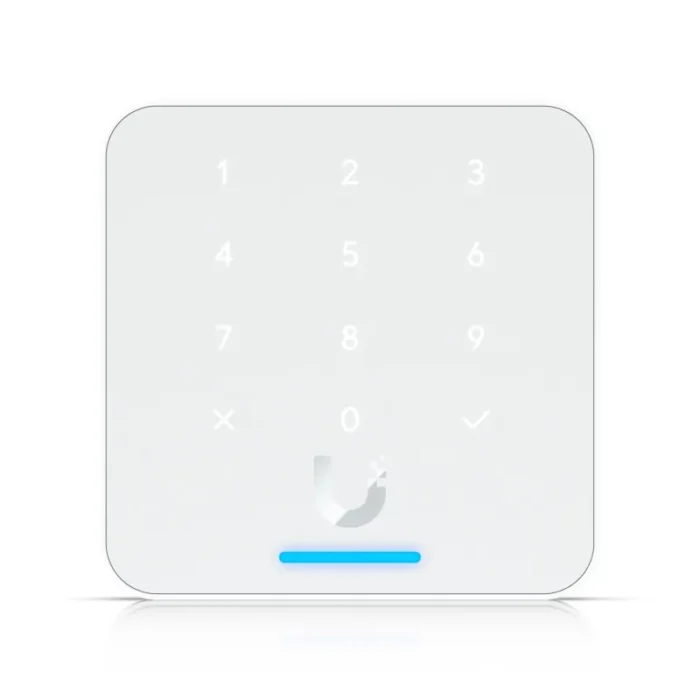

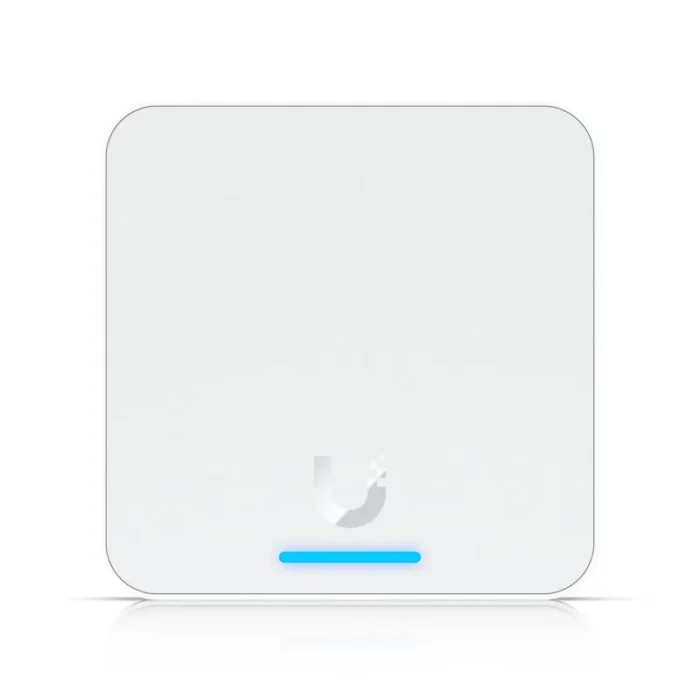

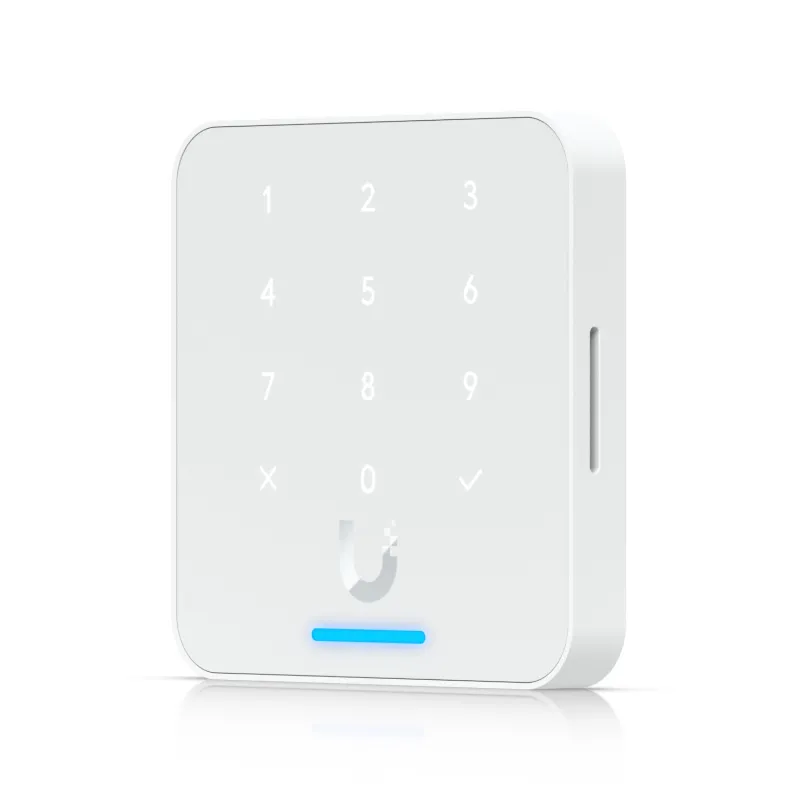

Ubiquiti Reader Flex Basic access control reader White
- Unlock with the keypad, NFC card, UniFi Identity mobile app, or Touch Pass
- Provides entry and exit greeting messages
- Push button performance (Usable with moisture or most gloves)
- IP55-rated weather resistance (-30 to 60°C)
- Connects to UniFi Access Hub via PoE
Third-generation NFC card reader with a keypad and Apple Touch Pass support.
| Technical details |
| International Protection (IP) code |
IP55 |
| Housing material |
Aluminium, Glass, Polycarbonate (PC) |
| Product colour |
White |
| Fingerprint reader |
No |
| Access code reader |
No |
| Access chip/card reader |
Yes |
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC), UKCA |
| Keypad illumination |
Yes |
| Recommended usage |
Outdoor |
| Keypad integrated |
Yes |
| Keypad number of keys |
12 |
| LED indicators |
Status |
| Authentication type |
Access chip/card, Password, Mobile app |
| Type |
Basic access control reader |
| Display |
| Built-in display |
No |
| Performance |
| Speaker power |
1 W |
| Number of speakers |
1 |
| Built-in speaker(s) |
Yes |
| Ports & interfaces |
| Cabling technology |
10/100 |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Near Field Communication (NFC) |
Yes |
| Bluetooth version |
4.1 |
| Bluetooth |
Yes |
| Power |
| DC voltage range |
44 – 57 V |
| Power consumption (max) |
5 W |
| Power over Ethernet (PoE) ports quantity |
1 |
| Power over Ethernet (PoE) |
Yes |
| Weight & dimensions |
| Width |
84 mm |
| Depth |
40.8 mm |
| Height |
84 mm |
| Weight |
165 g |
| Packaging content |
| Mounting bracket(s) included |
Yes |
| Operational conditions |
| Operating relative humidity (H-H) |
5 – 90% |
| Operating temperature (T-T) |
-30 – 60 °C |
