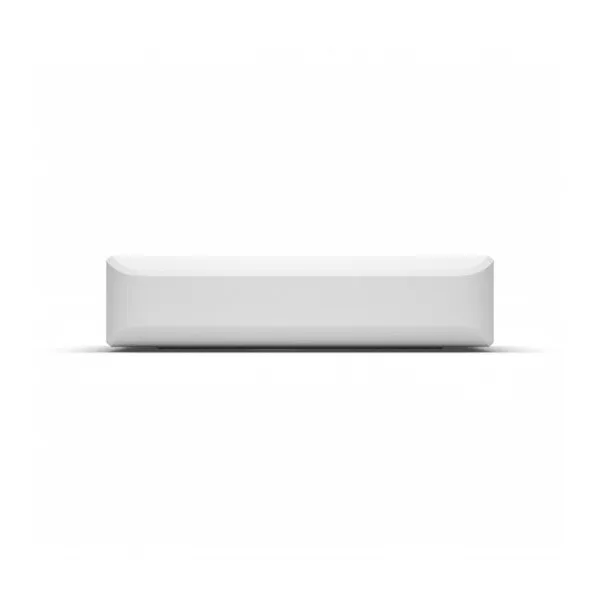

Ubiquiti UniFi Switch Lite 16 PoE L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White
- (16) Gigabit RJ45 ports including (8) 802.3at PoE+
- Managed by UniFi Controller
- 60W power supply
- Wall-mountable (Kit included)
The UniFi Switch Lite 16 PoE is a fully managed Layer 2 switch with sixteen Gigabit Ethernet ports for your RJ45 Ethernet devices. Eight ports also offer auto-sensing 802.3at PoE+ that provide up to a total PoE wattage of 45W for UniFi Access Points or other PoE devices.
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the UniFi Switch Lite 16 PoE offers Layer 2 switching protocols and features. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
| Management features |
| Switch layer |
L2 |
| Ports & interfaces |
| Power connector |
AC-in jack |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Network |
| 10G support |
No |
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| Data transmission |
| Switching capacity |
16 Gbit/s |
| Design |
| Wall mountable |
Yes |
| LED indicators |
Network, PoE, System |
| Product colour |
White |
| Power |
| Power consumption (max) |
15 W |
| AC input voltage |
100 – 240 V |
| Number of power supply units |
1 |
| Power supply included |
Yes |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet (PoE) ports quantity |
8 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Operating relative humidity (H-H) |
10 – 90% |
| Operating temperature (T-T) |
-15 – 40 °C |
| Weight & dimensions |
| Weight |
1.2 kg |
| Height |
43.7 mm |
| Depth |
185 mm |
| Width |
191.7 mm |
| General |
| Product family |
UniFi |
| Certificates |
| Certification |
CE, FCC, IC |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
