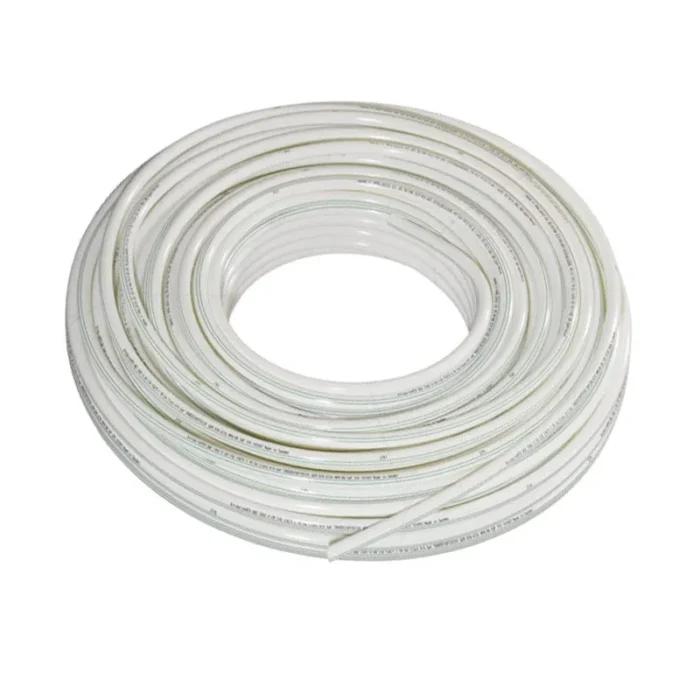

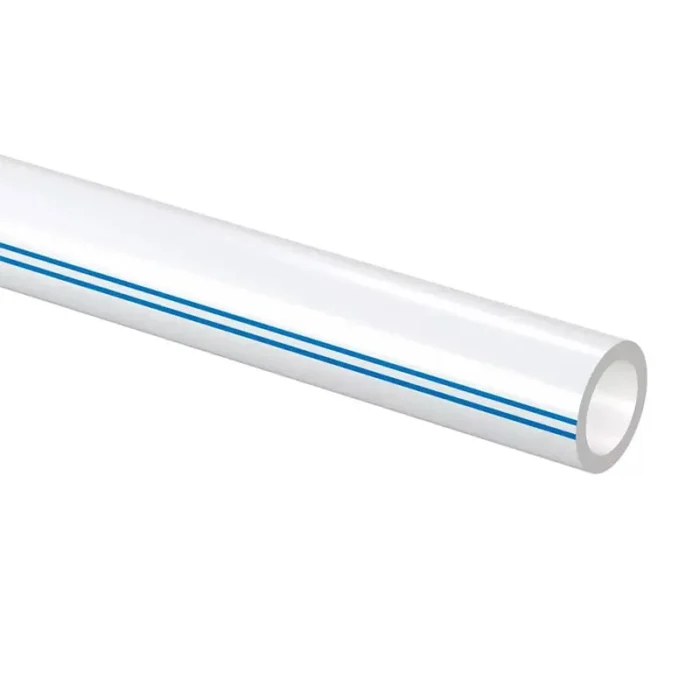

Uponor 16mm x 2mm Comfort Pipe Plus 240m | 1062045
Uponor 16X2mm PEX Pipe
Uponor 16X2mm Comfort Pipe PLUS available in 120m, 240m and 640m coils. All PEX pipes are manufactured using cross-linked polyethylene (PE-Xa) acc. to BS EN 15875, including an EVOH oxygen diffusion barrier as per DIN 4726 suitable for application class 4. Underfloor heating and low-temperature radiators. Max design pressure 6 Bar at 70°C.
Application:
16x2mm Comfort Pipe Plus pipes are manufactured from peroxide cross-linked polyethene (Engel Method PE-Xa) according to BS EN 15875 with an integrated EVOH (ethylene vinyl alcohol) layer for oxygen diffusion resistance as per DIN 4726 with an additional layer (5th Layer). Outside white PE layer designed to protect against mechanical damages
Product specification:
Pipe construction: 5 Layer PEX pipe using Engel method inc. EVOH barrier
Application class: 4
Max Temperatures: Operating: 70°C
Max short term 90°C
Max Pressure: 6 Bar
Pipe OD: 16mm
Pipe ID : 12mm
Water Volume: 0.113 l/m
Pipe weight: Excl. Water: 0.0846 kg/m Inc. Water:0.1976 kg/m
Manufacture standards: BS EN 15875
Diffusion barrier standards: DIN 4726
Thermal Conductivity: 0.35 w/mK
