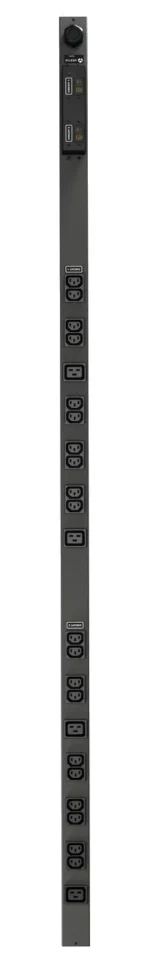

Vertiv Geist rPDU, basic, 0U, input IEC60309 230V 32A, outputs (20)C13 | (4)C19 power distribution unit (PDU) 24 AC outlet(s) Black
- 0U basic rack PDU that provides reliable power for both edge and enterprise data center locations
- All Vertiv Geist power distribution units undergo individual testing for functionality to ensure your network is powered by a reliable rPDU
- UL-listed, so it meets an important requirement for many data centers
- (20) IEC C13 (4) C19 receptacles/ 1P+N+E (IP44)/ 32A/ 230V/ 7.3kW capacity
- Three-year warranty is extendable to five years if unit is registered within 120 days of purchase
The Vertiv Geist Basic Rack PDU VP7553 is a 32A, 230V, 0U vertical rack power distribution unit (PDU). It has 20 IEC C13, 4 IEC C19 outlets, and a 1P+N+E (IP44) input that provides 7.3kW capacity. Vertiv Geist Basic Rack PDUs are UL-listed and are not batch-tested. The RoHS-compliant rPDUs undergo rigorous individual tests for reliability and functionality before shipping. The unit comes with a three-year warranty that can be extended to five-years if registered within 120 days of purchase.
| Design |
| Product colour |
Black |
| Mounting |
Vertical |
| Rack capacity |
0U |
| Type |
Single-phase |
| PDU types |
Basic |
| Ports & interfaces |
| Output connections |
20 x C13 & 4 x C19 |
| AC outlet types |
C13 coupler, C19 coupler |
| Power plug |
IEC 60309 |
| AC outlets quantity |
24 AC outlet(s) |
| Features |
| Cable length |
3 m |
| LED indicators |
No |
| Power |
| Load capacity |
7300 VA |
| Maximum current |
32 A |
| AC input frequency |
50 Hz |
| Nominal input voltage |
230 V |
| Certificates |
| Certification |
CE, RoHS, CB |
| Compliance certificates |
RoHS |
| Operational conditions |
| Operating temperature (T-T) |
0 – 45 °C |
| Weight & dimensions |
| Weight |
5.4 kg |
| Height |
51 mm |
| Depth |
51 mm |
| Width |
1683 mm |
| Packaging data |
| Package height |
159 mm |
| Package depth |
223 mm |
| Package width |
1829 mm |
| Package weight |
6.35 kg |
| General |
| Product family |
Geist |
