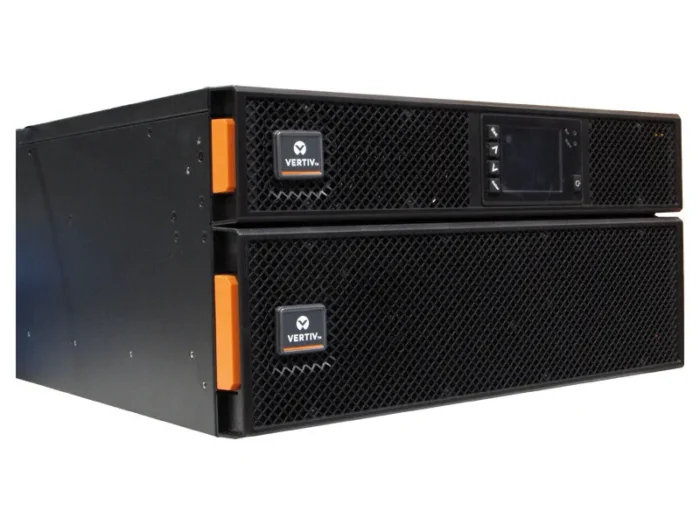

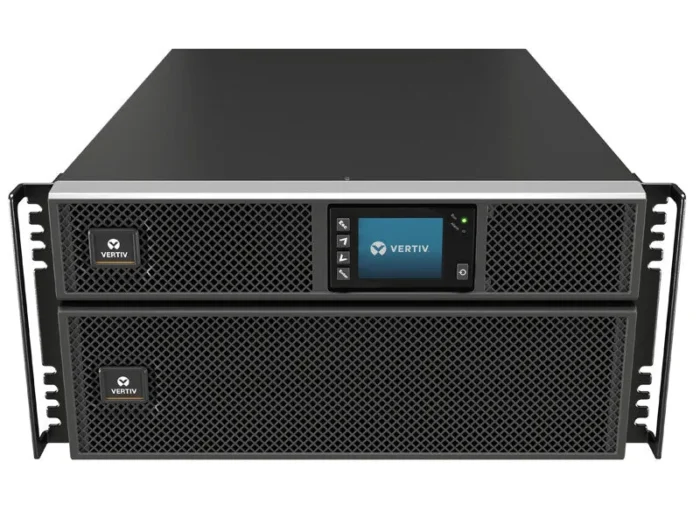

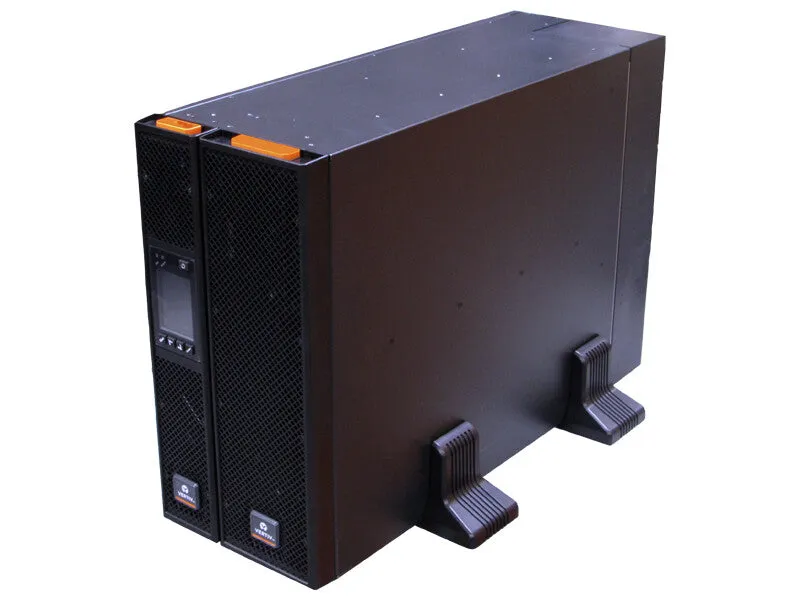

Vertiv Liebert GXT5 Double Online Conversion UPS -20kVA/20kW| 230V| With Rackmount Kit and Intellislot RDU101 Communication Card|GXT5-20KIRT9UXLN
- It offers reliable, easy-to-manage power protection and battery backup with 20kVA (20kW) capacity.
- It has UNITY Power Factor (1.0) for more usable power and more connected loads to save space and costs.
- It includes a built-in Vertiv RDU101 network communications card for remote management.
- It comes with a Vertiv 3-year warranty plus a 2-year extension for a total of 5 years in coverage.
- It is ENERGY STAR® 2.0 certified with higher efficiency, for energy savings and improved reliability.
The Vertiv Liebert GXT5 uninterruptible power supply (UPS) protects critical equipment against outages and every type of power disturbance. This 20kVA/20kW online double conversion UPS offers continuous power conditioning in centralized and edge locations. With unity power factor (1.0), it allows more connected loads saving space and costs. This tower/rack mount UPS has a built-in Vertiv RDU101 communications card for remote monitoring to help you make more informed decisions and faster event resolution. With the free Vertiv Power Insight software, you can consolidate your view of up to 100 distributed UPS units providing simple notification of status and events in a single pane of glass. This 230V in/ 230 out single phase UPS has scalable runtime options with matching external battery cabinets to give extra runtime during an outage to support critical equipment. This battery backup is ENERGY STAR 2.0 certified and comes with an intuitive gravity sensing full-color LCD display. It comes with a 5-year warranty (3-year factory warranty plus 2-year extended warranty). This promotion is subject to the Distributor’s product availability and is only available while product stocks last. Vertiv reserves the right to provide a 1-month notice to terminate the offer. This offer is not available in conjunction with any other offer/discount.
| Features | |
|---|---|
| Noise level | 58 dB |
| ECO mode | Yes |
| Power factor | 1 |
| Efficiency | 95.9% |
| Number of input phases | 1/3 |
| Output frequency | 50 Hz |
| Output operation voltage (max) | 230 V |
| Output operation voltage (min) | 200 V |
| Input frequency | 40 – 70 Hz |
| Input operation voltage (max) | 288 V |
| Input operation voltage (min) | 176 V |
| Waveform | Pure sine |
| Output power | 20000 W |
| Output power capacity | 20 kVA |
| UPS topology | Double-conversion (Online) |
| Ports & interfaces | |
|---|---|
| Power plug | Hardwire |
| AC outlet types | Terminal |
| Battery | |
|---|---|
| Typical backup time at half load | 7 min |
| Typical backup time at full load | 2.5 min |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
|---|---|
| Compatibility | Energy Star 2.0 |
| Display type | LCD |
| Product colour | Black |
| Form factor | Rackmount/Tower |
| General | |
|---|---|
| Product family | Liebert |
| Operational conditions | |
|---|---|
| Operating altitude | 0 – 3000 m |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage temperature (T-T) | -15 – 40 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Certificates | |
|---|---|
| Compliance certificates | REACH, RoHS |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 135.2 kg |
| Height | 394 mm |
| Depth | 630 mm |
| Width | 430 mm |
