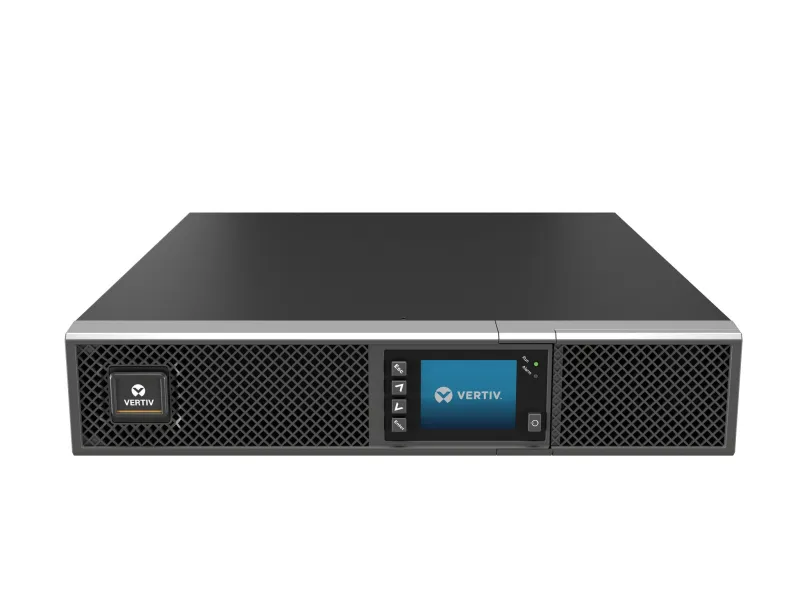

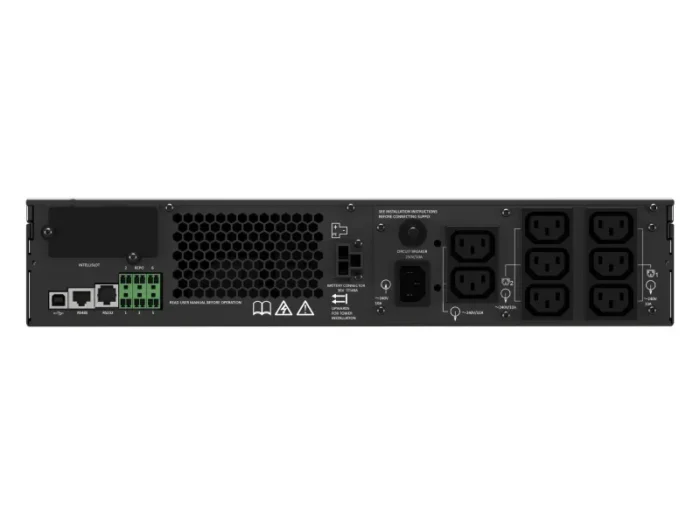

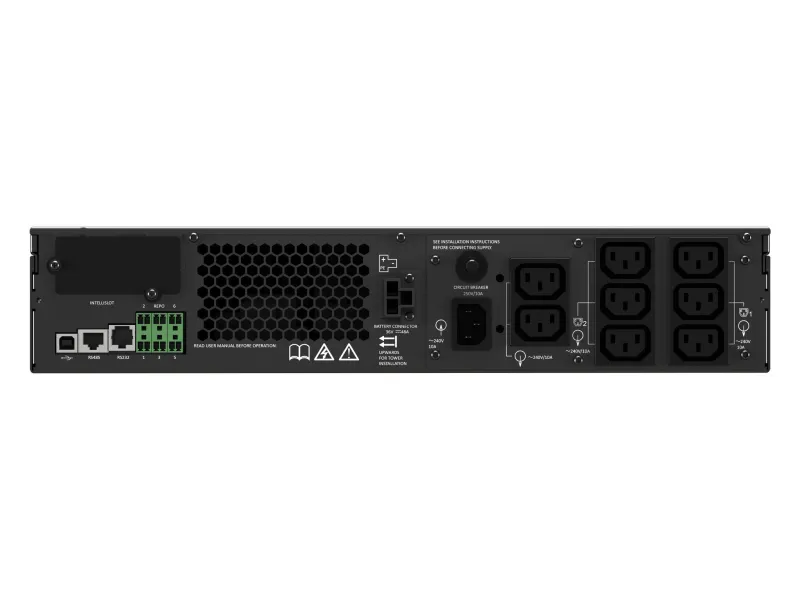

Vertiv Liebert GXT5 Double Online Conversion UPS – 750VA/750W | 230V | With Rackmount Kit | GXT5-750IRT2UXL
- It offers reliable, easy-to-manage power protection and battery backup with 750VA (750W) capacity.
- It has UNITY Power Factor (1.0) for more usable power and more connected loads to save space and costs.
- It includes four individual programmable output receptacles for device control and optimum battery usage.
- It comes with a Vertiv 3-year warranty plus a 2-year extension for a total of 5 years in coverage.
- It is ENERGY STAR® 2.0 certified with higher efficiency, for energy savings and improved reliability.
The Vertiv Liebert GXT5 UPS 750VA/750W is a 2U UPS solution that ensures the health and availability of IT infrastructure. With online, double conversion technology, the UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support a wide range of power environments, including 200/208/220/230/240V user configurable AC power, and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. It includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR® 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. It comes with a 5-year warranty (3-year factory warranty plus 2-year extended warranty). This promotion is subject to the Distributor’s product availability and is only available while product stocks last. Vertiv reserves the right to provide a 1-month notice to terminate the offer. This offer is not available in conjunction with any other offer/discount.
| Features |
| Audible alarm(s) |
Yes |
| Power protection features |
Overload |
| Noise level |
46 dB |
| Emergency Power Off (EPO) |
Yes |
| Input power factor |
0.99 |
| Efficiency |
95% |
| Number of input phases |
1 |
| Response time |
0 ms |
| Output voltage regulation |
3% |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
200 V |
| Input frequency |
40 – 70 Hz |
| Input operation voltage (max) |
288 V |
| Input operation voltage (min) |
115 V |
| Waveform |
Pure sine |
| Output power |
750 W |
| Output power capacity |
0.75 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| Emergency Power Off (EPO) connector |
Yes |
| Serial ports quantity |
1 |
| Serial interface type |
RS-232, RS-485 |
| USB port |
Yes |
| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
C13 coupler, C19 coupler |
| Battery |
| Hot-swap battery |
Yes |
| Battery recharge time |
3 h |
| Typical backup time at half load |
25.7 min |
| Typical backup time at full load |
10.5 min |
| Battery voltage |
12 V |
| Battery capacity |
9 VAh |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| International Protection (IP) code |
IP20 |
| Display type |
LCD |
| Product colour |
Black |
| Form factor |
Rackmount/Tower |
| Operational conditions |
| Operating altitude |
0 – 3000 m |
| Storage relative humidity (H-H) |
0 – 95% |
| Operating relative humidity (H-H) |
0 – 95% |
| Storage temperature (T-T) |
-15 – 40 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| General |
| Product family |
Liebert |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| Safety regulation & standards |
| Safety |
IEC62040-1:2008, GS; UL1778, c-UL |
| Certificates |
| Certification |
IEC/EN/AS 62040-2 2nd Ed (Cat 2 – 6);FCC 15 ACISPR22 A(RFI) |
| Compliance certificates |
REACH, RoHS |
| Weight & dimensions |
| Weight |
16.8 kg |
| Height |
85 mm |
| Depth |
400 mm |
| Width |
430 mm |
| Packaging data |
| Package weight |
21.4 kg |
| Package height |
262 mm |
| Package depth |
617 mm |
| Package width |
517 mm |
| Logistics data |
| Harmonized System (HS) code |
85078000 |
| Other features |
| Non-operating relative humidity (non-condensing) |
0 – 95% |
| Bypass |
Yes |
| Package dimensions (WxDxH) |
517 x 617 x 262 mm |
| Overload protection |
Yes |
| Nominal output voltage |
230 V |
| Nominal input voltage |
230 V |
| Dimensions (WxDxH) |
430 x 400 x 85 mm |
| Input connection type |
C14 |
| Output connections |
IEC320 C13 |
| Battery type |
VRLA |
