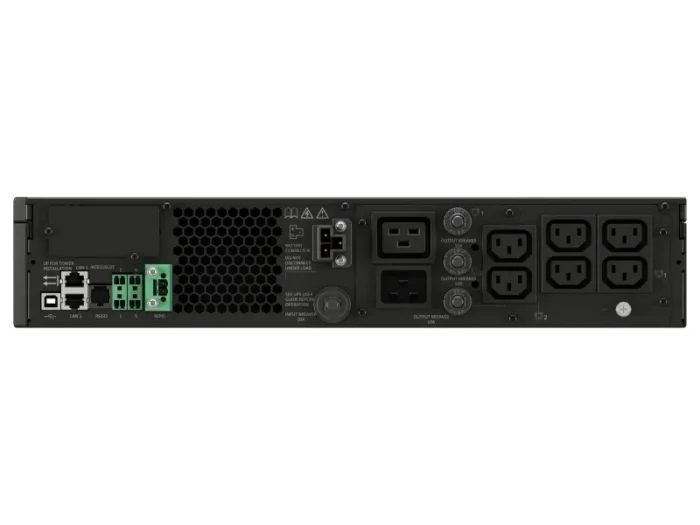

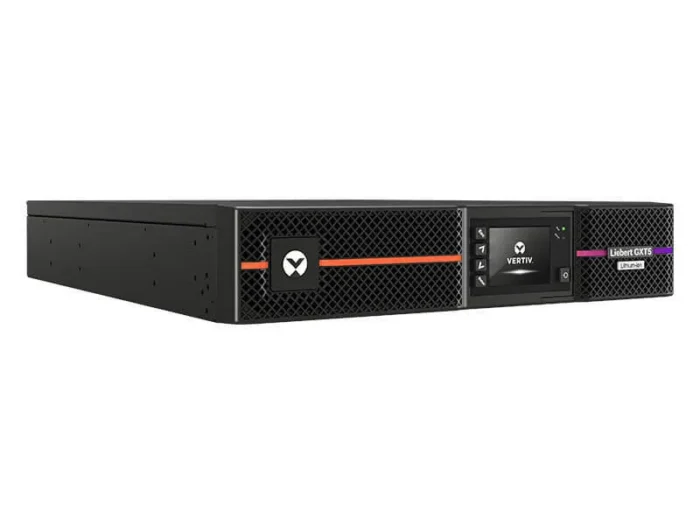

Vertiv Liebert GXT5 Lithium-Ion Online UPS 3000VA/2700W 230V Tower/Rack UPS
- Lithium-Ion UPS batteries last up to 3x longer than traditional VRLA batteries
- Offers lowest total cost of ownership (TCO) with fewer or no battery replacements over its lifetime
- Environmentally friendly UPS reduces battery disposal and recycling with lower replacement rates
- The 3kVA UPS offers longer runtime and faster recharge time
- Add 1U external battery cabinet units to power the UPS for scalable runtime
The Vertiv Liebert GXT5 Lithium-Ion UPS protects critical IT applications against outages and various power disturbances. This online UPS offers the highest level of power conditioning and battery backup in server rooms, network closets, and other edge or distributed IT locations. Lithium-Ion batteries require fewer battery replacements and last up to 3x as long as traditional VRLA batteries reducing maintenance, labor, and replacement costs (resulting in the lowest TCO). Internal batteries offer industry-leading runtime (up to 14 minutes at full load (varies by model)) to protect critical equipment during an unexpected power loss. They offer better performance at higher temperatures, supports up to 10 times more discharge cycles, and delivers faster recharge times compared to VRLA batteries. Hot-swappable, user-replaceable batteries may increase the useable life of the UPS by allowing you to easily replace the batteries, if needed, without disrupting power to connected equipment.
| Features |
| Power protection features |
Over voltage, Under voltage |
| Surge protection |
Yes |
| Noise level |
48 dB |
| Emergency Power Off (EPO) |
Yes |
| ECO mode |
Yes |
| Output power factor |
0.9 |
| Efficiency (ECO mode) |
98% |
| Efficiency |
95% |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
200 V |
| Input frequency |
40 – 70 Hz |
| Input operation voltage (max) |
288 V |
| Input operation voltage (min) |
115 V |
| Waveform |
Pure sine |
| Output power |
2700 W |
| Output power capacity |
3 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| Serial ports quantity |
1 |
| Serial interface |
Yes |
| USB port |
Yes |
| AC outlets quantity |
7 AC outlet(s) |
| AC outlet types |
C13 coupler, C19 coupler |
| Battery |
| Hot-swap battery |
Yes |
| Battery recharge time |
2 h |
| Typical backup time at half load |
14.5 min |
| Typical backup time at full load |
6.5 min |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Design |
| Display type |
LCD |
| Rack capacity |
2U |
| Product colour |
Black |
| Form factor |
Tower |
| Operational conditions |
| Operating altitude |
0 – 3000 m |
| Operating relative humidity (H-H) |
0 – 95% |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| General |
| Product family |
Liebert |
| Certificates |
| Compliance certificates |
REACH, RoHS, WEEE |
| Weight & dimensions |
| Battery weight |
5.9 kg |
| Weight |
21 kg |
| Height |
85 mm |
| Depth |
546 mm |
| Width |
430 mm |
| Packaging data |
| Package weight |
27 kg |
| Package height |
242 mm |
| Package depth |
717 mm |
| Package width |
570 mm |
