Vertiv Liebert GXTRT-1500IRT2UXL uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1350 W 6 AC outlet(s)
- Improved utilization enabled by high 0.9 power factor
- Automatic bypass allows the load to transfer to the mains in case of an overload or internal fault

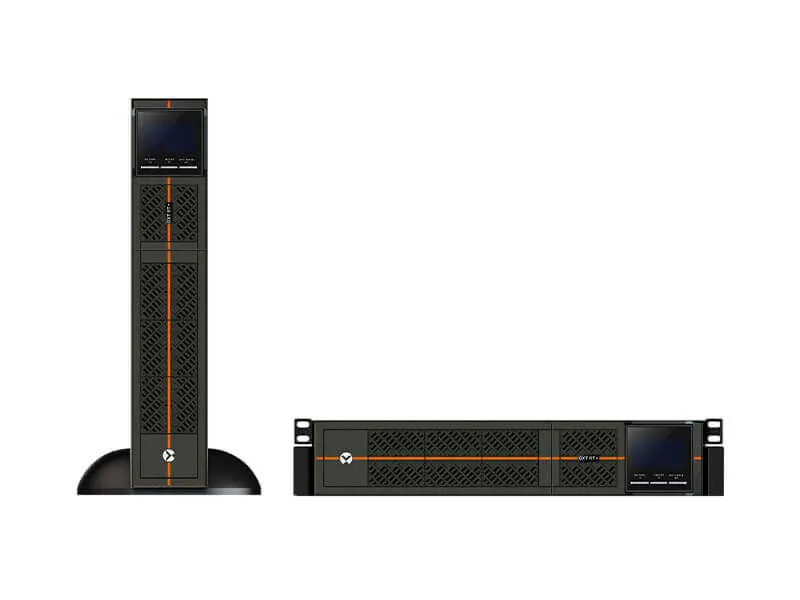

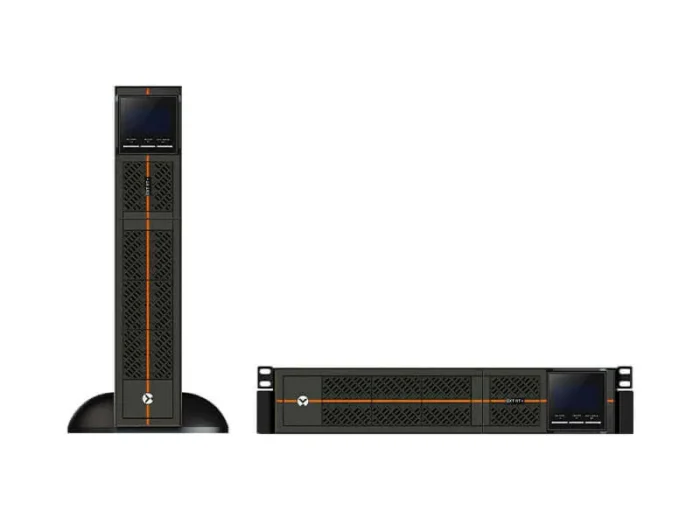

- Option of rack or tower mounting supports simplified UPS selection and deployment
- Adapts to areas with unstable power-mains supply via double conversion topology structure
- Intuitive LCD provides complete UPS status and configuration information at a glance
The Vertiv Liebert GXT RT+ Uninterruptible Power Supply (UPS) (GXTRT-1500IRT2UXL) offers online technology with two stages of power conversion for high performance yet affordable power protection. It is ideal for edge or space-constrained facilities where reliable, efficient power protection is needed to ensure business continuity. This 1.5kVA, single phase UPS has flexible rack or tower mounting options, intuitive LCD and compact form factor that enable rapid deployment and seamless network integration.
| Features |
| Audible alarm(s) |
Yes |
| Power protection features |
Overload |
| Noise level |
55 dB |
| Emergency Power Off (EPO) |
No |
| Output power factor |
0.9 |
| Input power factor |
0.9 |
| Power factor |
0.9 |
| Efficiency (On-line mode) |
88% |
| Efficiency |
88% |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Output voltage regulation |
1% |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Input frequency |
40 – 70 Hz |
| Input operation voltage (max) |
288 V |
| Input operation voltage (min) |
177 V |
| Waveform |
Pure sine |
| Output power |
1350 W |
| Output power capacity |
1.5 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| Serial ports quantity |
1 |
| USB port |
Yes |
| AC outlets quantity |
6 AC outlet(s) |
| Power plug |
C14 coupler |
| AC outlet types |
C13 coupler |
| Battery |
| Hot-swap battery |
Yes |
| Typical backup time at half load |
9 min |
| Typical backup time at full load |
3.2 min |
| Number of batteries supported |
3 |
| Battery voltage |
12 V |
| Battery capacity |
9 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| Display type |
LCD |
| Rack capacity |
2U |
| Product colour |
Black |
| Form factor |
Rackmount |
| Operational conditions |
| Operating altitude |
0 – 2000 m |
| Storage relative humidity (H-H) |
10 – 90% |
| Operating relative humidity (H-H) |
20 – 95% |
| Storage temperature (T-T) |
-20 – 50 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| General |
| Product family |
Liebert |
| Safety regulation & standards |
| Safety |
CE |
| Packaging content |
| Quick installation guide |
Yes |
| Manual |
Yes |
| Cables included |
Input power cable, Output power cable, USB cable |
| Rack mount kit |
Yes |
| Certificates |
| Certification |
CE |
| Compliance certificates |
RoHS |
| Weight & dimensions |
| Weight |
14.5 kg |
| Height |
88 mm |
| Depth |
462 mm |
| Width |
438 mm |
| Packaging data |
| Package weight |
16.8 kg |
| Package height |
565 mm |
| Package depth |
240 mm |
| Package width |
700 mm |
| Logistics data |
| Shipping (inner) case gross weight |
18.8 g |
| Shipping (inner) case height |
24 cm |
| Shipping (inner) case length |
70 cm |
| Shipping (inner) case width |
56.5 cm |
| Harmonized System (HS) code |
85078000 |
