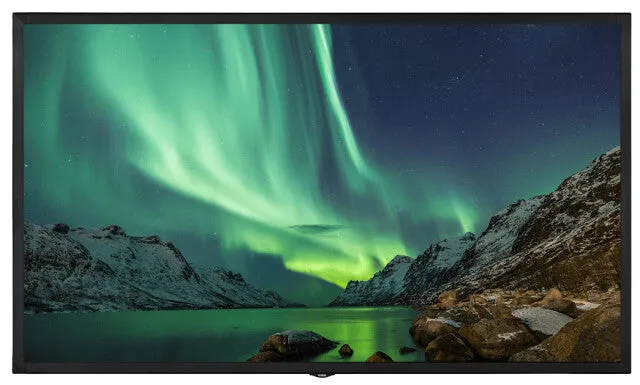

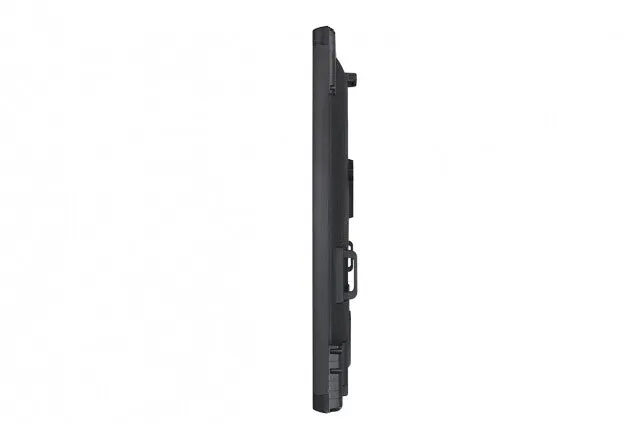

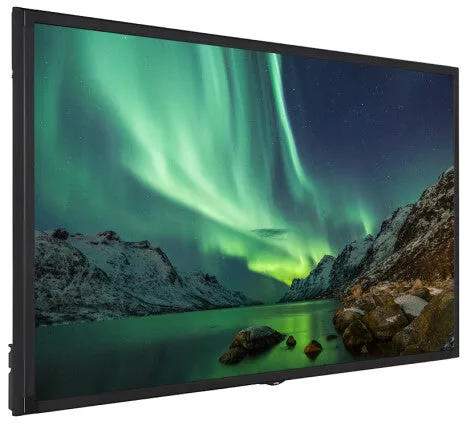

Vestel IFD86TH650B/3 interactive whiteboard 2.18 m (86″) 3840 x 2160 pixels Touchscreen Black HDMI
- Resolution : 3840×2160 (UHD)
- Brightness : 400 cd/m2
- Touch Points : 10 Points Multi Touch
- Touch Techology : IR Touch
- Interface : HDMI 2.0 / VGA / USB /RS232 / RJ45 / RJ12 for sensors / IR /HP / Audio / Speaker
- Application Area: Education
Palm Erase
Automatic palm erasing function allows teachers and students to simplify the white board experience with smooth writing and erasing.
Ease of use with Android
Android gives teachers one touch access for lessons and collaboration tools including whiteboard, web browser, apps library, and native wireless screen sharing.
Wireless Presentation
Teachers, students or any user can share their screen efficiently and conveniently in the classroom or meeting room via EShare application. This application can connect any operating system and show up to 4 different screen at the same time.
Different Sizes for various classrooms
Available in a variety of large screen sizes, the IFD range gives customers the options to choose exactly what they need for their room size.
Crestron Connected
Crestron Connected certification complements VESTELs presence with inside the corporate, retail, government, better training and hospitality markets, all of which use expert AV controls. As those sectors hold to evolve with growing necessities for simple-to-use merchandise, seamless integration, dependable answers and community connectivity.
| Display | |
|---|---|
| Haze rate | 8% |
| Screen glass thickness | 4 mm |
| Working area | 1907 x 1076 mm |
| Pixel pitch | 0.4935 x 0.4935 mm |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Touch system response time | 10 ms |
| Touch system response rate | 450 fps |
| Number of simultaneous touchpoints | 10 |
| Touchscreen type | Infrared |
| Touch technology | Multi-touch |
| Touchscreen | Yes |
| Maximum refresh rate | 120 Hz |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 50000:1 |
| LED backlighting type | Direct-LED |
| Panel type | IPS |
| HD type | 4K Ultra HD |
| Display resolution | 3840 x 2160 pixels |
| Display number of colours | 1.07 billion colours |
| Display brightness | 400 cd/m² |
| Display diagonal | 2.18 m (86″) |
| Audio | |
|---|---|
| Speaker power | 12 W |
| Number of built-in speakers | 2 |
| Built-in speaker(s) | Yes |
| Projector | |
|---|---|
| Built-in projector | No |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| RS-232 ports | 1 |
| Headphone connectivity | 3.5 mm |
| S/PDIF out port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| RGB ports quantity | 1 |
| HDMI output ports quantity | 1 |
| HDMI version | 2.0 |
| HDMI ports quantity | 4 |
| USB 2.0 ports quantity | 3 |
| HDCP | Yes |
| Interface | HDMI |
| Ergonomics | |
|---|---|
| Panel mounting interface | 600 x 400 mm |
| VESA mounting | Yes |
| Product colour | Black |
| Power | |
|---|---|
| AC input voltage | 110 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 280 W |
| System requirements | |
|---|---|
| Mobile operating systems supported | Android |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
| Mac compatibility | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 – 90% |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 90.5 kg |
| Height | 1145 mm |
| Depth | 103 mm |
| Width | 1975 mm |
| Packaging data | |
|---|---|
| Package weight | 110.6 kg |
| Package height | 1405 mm |
| Package depth | 318 mm |
| Package width | 2163 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | AC, IR |
