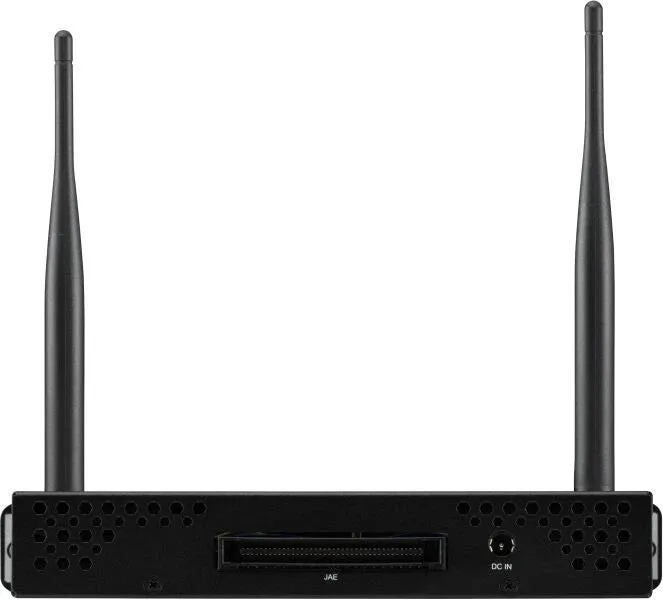

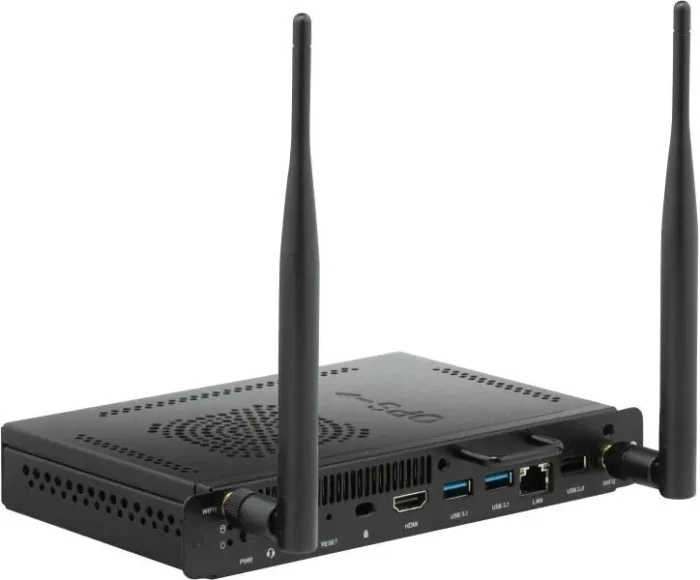

Viewsonic VPCF5-S33-G1 PC/workstation Intel® Core™ i5 i5-10400T 8 GB DDR4-SDRAM 256 GB SSD Slot-in PC Mini PC Black
- Light OS UEFI Shell Allows Scripting, File manipulation, and Obtaining System Information
- Ideal Integrated Solution for ViewBoard® Interactive Displays & Presentation Displays
- Powerful Intel® 11th Core Processors embedded TPM2.0
- Improved System Stability, Security, & Thermal Control
Seize the power to get more done when you sync your ViewBoard® interactive displays and Presentation Displays with the ViewSonic VPCF5-S33-G1 slot-in PC. Integrated with exceptional performance from Intel® processors, 8GB DDR4 memory, and 256GB of SSD storage, the experience enhances computing performance to breeze through complex classes and collaborations. Plug into pure productivity with dual-band WiFi, Bluetooth 5.2, and a range of ports, including 4K HDMI, 5K DP, USB 3.1, and Gigabit LAN RJ45 for faster workflows.
Tap into a productivity powerhouse
Boost the interactive whiteboard with remarkable power and lightning-fast speed from Intel® 11th Gen Core™ processors, letting you zip through lessons and tutorials effortlessly. Integrated with Intel® WiFi 6 and Bluetooth 5.2, experience ultra-fast, versatile connectivity to facilitate remote and hybrid classes with ease.
Stay cool and blaze through classes
Equipped with a thermal control circuit and noise reduction capabilities, the fan within the device will dissipate much more heat in quieter acoustics of under 35 decibels for more conducive and longer lessons.
Stability in every lesson
The VPC comes with a Trusted Platform Module (TPM) to secure hardware through integrated cryptographic keys, providing data encryption for extended protection against cyberthreats.
| Processor | |
|---|---|
| Configurable TDP-down | 25 W |
| Configurable TDP-down frequency | 1.3 GHz |
| Processor cache | 12 MB |
| Processor frequency | 2 GHz |
| Processor boost frequency | 3.6 GHz |
| Processor cores | 6 |
| Processor model | i5-10400T |
| Processor generation | 10th gen Intel® Core™ i5 |
| Processor family | Intel® Core™ i5 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 8 GB |
| Internal memory | 8 GB |
| Storage | |
|---|---|
| SSD form factor | M.2 |
| SSD interface | PCI Express, SATA III |
| SSD capacity | 256 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 256 GB |
| Storage media | SSD |
| Optical drive type | No |
| Total storage capacity | 256 GB |
| Graphics | |
|---|---|
| On-board graphics card model | Intel® UHD Graphics 630 |
| On-board graphics card family | Intel® UHD Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Network | |
|---|---|
| Bluetooth version | 5.2 |
| Bluetooth | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| Headphone outputs | 1 |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 2 |
| Design | |
|---|---|
| Product colour | Black |
| Colour name | Black |
| Chassis type | Slot-in PC |
| Performance | |
|---|---|
| Motherboard chipset | Intel H410 |
| Product type | Mini PC |
| Software | |
|---|---|
| Bundled software | myViewBoard for Window /Adobe reader /Winflash /Watch Dog |
| Processor special features | |
|---|---|
| Intel Clear Video Technology | Yes |
| Intel 64 | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Idle States | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Trusted Execution Technology | No |
| Execute Disable Bit | Yes |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Power | |
|---|---|
| Power supply input frequency | 50 – 60 Hz |
| Power supply input voltage | 110 – 240 V |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 – 90% |
| Operating temperature (T-T) | -5 – 45 °C |
| Certificates | |
|---|---|
| Certification | cTUVus, FCC, FCC ID, IC ID, CE, RED, CB, BSMI, NCC, RoHS, ErP, REACH, WEEE |
| Compliance certificates | CE, REACH, RoHS, WEEE |
| Sustainability | |
|---|---|
| Sustainability certificates | ErP |
| Weight & dimensions | |
|---|---|
| Package weight | 2.1 kg |
| Package height | 310 mm |
| Package depth | 90 mm |
| Package width | 350 mm |
| Weight | 1.95 kg |
| Height | 263.4 mm |
| Depth | 32.2 mm |
| Width | 246.2 mm |
| Packaging content | |
|---|---|
| Display included | No |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84715000 |
