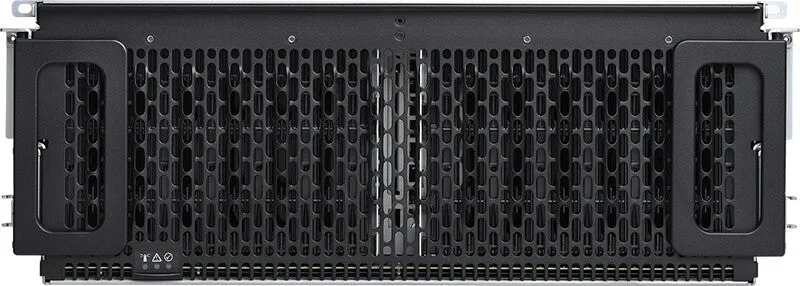

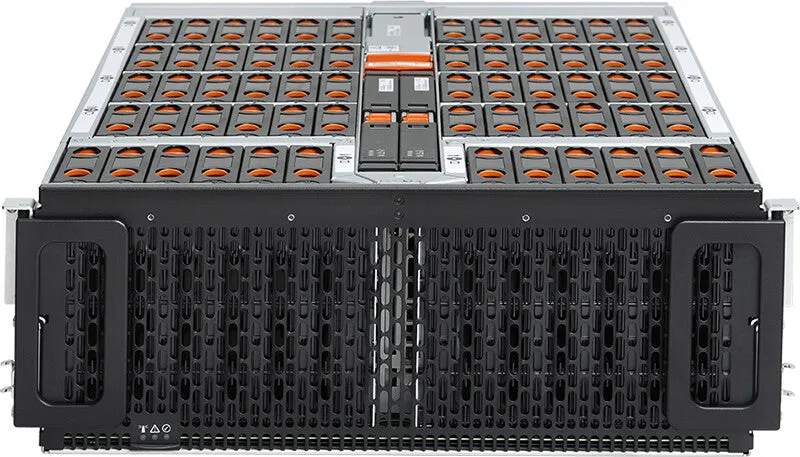

Western Digital Ultrastar Data60 disk array 480 TB Rack (4U) Black
- Up to 60 Ultrastar HDDs (SAS or SATA)
- Up to 1.2PB1 raw capacity in 4U using forthcoming 20TB SMR HDDs
- Hybrid support for data acceleration tier with SSDs (SAS or SATA) in up to 24 of 60 drive slots
- Dual-port SAS for high availability or single-port SATA for low cost
- Enterprise-grade redundant and hot-swappable PSUs, I/O modules, and fans
The Ultrastar Data60 hybrid storage platform is a key element of next-generation disaggregated storage and Software-Defined Storage (SDS) systems. The compact, efficient form factor provides the flexibility to specify the HDD and SSD combinations for balancing capacity, performance, and cost.
A flash data acceleration tier can be enabled to serve both fast data and big data applications from a single platform. The Ultrastar Data60 addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers, as well as resellers/integrators requiring dense, shared HDD or hybrid storage.
| Storage |
| Hot-swap drive bays |
Yes |
| Data transfer rate |
12 Gbit/s |
| Supported storage drive interfaces |
SAS-3, Serial ATA III |
| Storage drive size |
3.5″ |
| Storage drive interface |
Serial Attached SCSI (SAS) III |
| Number of storage drives supported |
60 |
| Supported storage drive types |
HDD & SSD |
| Total installed storage capacity |
480 TB |
| Number of storage drives installed |
60 |
| Installed storage drive type |
HDD |
| Storage drives installed |
Yes |
| Ports & interfaces |
| Mini-SAS host port |
Yes |
| Number of mini-SAS host ports |
12 |
| USB connectivity |
No |
| Design |
| Redundant fans support |
Yes |
| Noise level |
72 dB |
| Number of fans |
6 fan(s) |
| LED indicators |
Yes |
| Product colour |
Black |
| Chassis type |
Rack (4U) |
| Device class |
Small & Medium Business |
| Power |
| AC input frequency |
50 – 60 Hz |
| Redundant power supply (RPS) support |
Yes |
| Number of power supply units |
2 |
| Power supply unit (PSU) capacity |
1600 W |
| Weight & dimensions |
| Disk enclosure weight |
23.7 kg |
| Weight |
79.4 kg |
| Height |
175 mm |
| Depth |
712 mm |
| Width |
447 mm |
| General |
| Product family |
Ultrastar |
| Operational conditions |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating relative humidity (H-H) |
5 – 85% |
| Operating temperature (T-T) |
5 – 35 °C |
| Logistics data |
| Harmonized System (HS) code |
84717020 |
