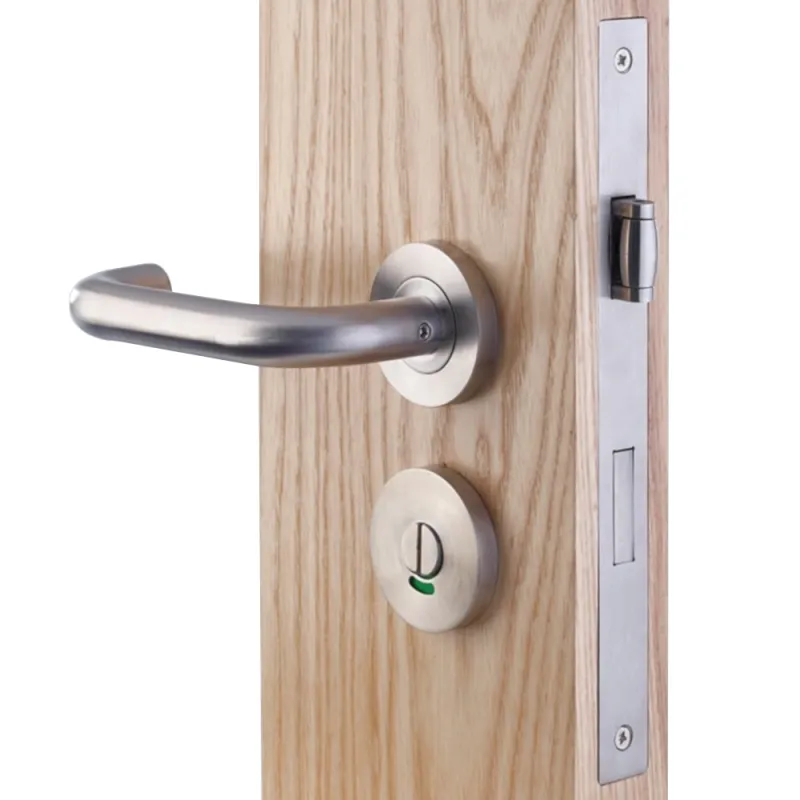

Zoo RTD Lift to Lock Facility Indicator Set – Satin Stainless Steel
Zoo Hardware ZCS030LL RTD Lift to Lock Disabled Facility Toilet Door Furniture Indictator Lock Handle Set Satin Stainless Steel

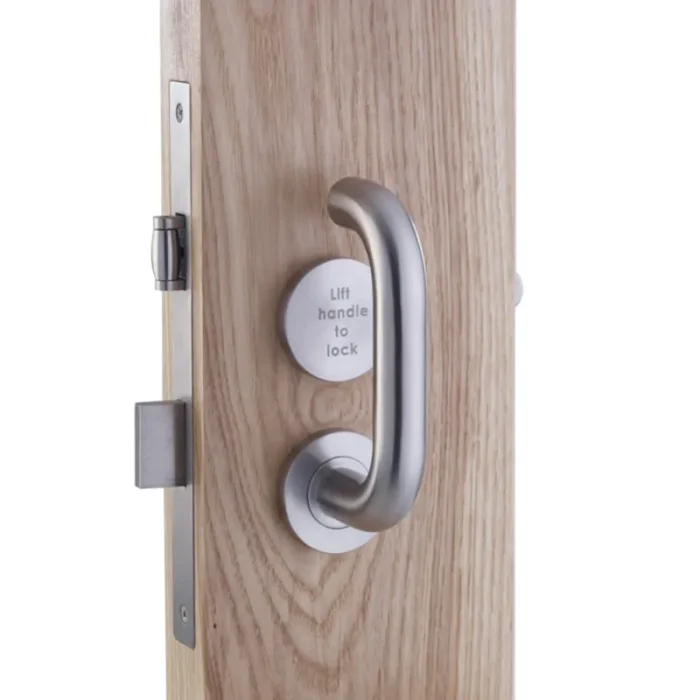

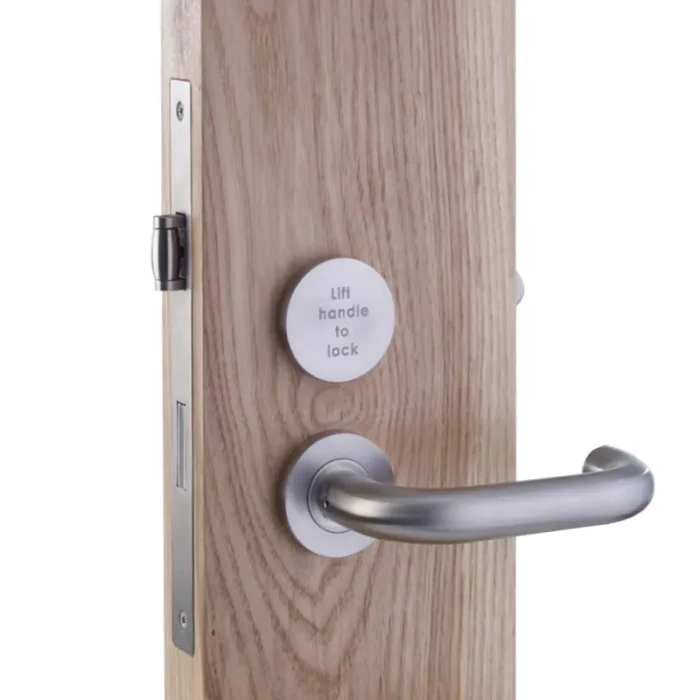

The Zoo Hardware Lift to Lock Din Lock outside appearance and operation is no different to any other Bathroom Lock… The inside lever handle presses down to release the latch bolt, whilst also lifting up to throw the deadbolt. This is illustrated by the included sign “Lift Handle To Lock”.
The full Lift to Lock set includes a variety of pieces. One Lift to Lock Din Lock, one ZCS030LLSS Lever Set, one “Lift Handle to Lock” engraved Escutcheon and one Turn and Release Indicator.
- Zoo Hardware
- ZCS030LL RTD Lift to Lock Facility Indicator Lock
- 19mm Tubular Construction
- 52mm Diameter Push on Rose
- Rose Projection 8mm
- Push On Stainless Steel Outer Rose
- Recommended Fixings M4 Male / Female Bolts Supplied
- M6 Heso Grub Screws For Additional Fixing Strength
- Also Supplied With 20mm Wood Screws
- Fire Tested Suitable For 30 & 60 Min Timber Doors
- BS EN 1906 Grade 3 Tested
- Complete with 100mm Steel Spindle and Fixings
- 10 Year Mechanical Guarantee
Lift to Lock Roller Sash DIN Lock:
- Adjustable roller latch bolt
- Stainless Steel latch bolt & dead bolt
- Includes grip tight follower spring
- Includes anti-rattle strike and dust box
- Available with square forends
- All factory QC tested
- ZCS030LL complies with the design requirements of BS8300
- 10 year mechanical guarantee
Lift to Lock Case Size:
- 90mm x 165mm (60mm backset)
Lift to Lock Faceplate:
- 235mm x 22mm x 3mm
