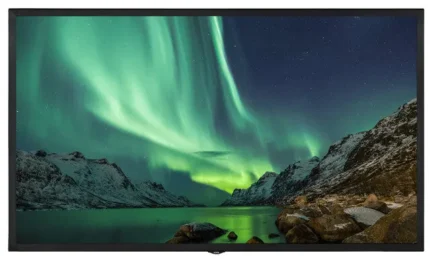

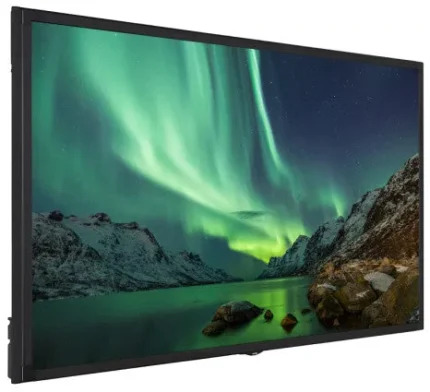

iiyama TE8604MIS-B1AG interactive whiteboard 2.18 m (86″) 3840 x 2160 pixels Touchscreen Black USB
- Touchscreen 2.18 m (86″) IPS Black
- Working area: 1895 x 1066 mm
- 4K Ultra HD 3840 x 2160 pixels
- 400 cd/m² 1200:1 8 ms
- Built-in speaker(s)
- Bluetooth Ethernet LAN
- VESA mounting 800 x 600 mm
Share Your Vision with the ProLite TE8604MIS-B1AG; a perfect solution for educational and corporate use. Its 86’’ PureTouch-IR 20-point touchscreen with iiWare 9.0 (Android OS) featuring Note, web browser, file manager, cloud drives, WPS office and ScreenSharePro. It comes with dual function touch pens, allowing users to annotate easily in 4K on files and on-screen content which can be saved directly to a USB device, 32GB internal memory or a selected cloud drive. The display supports playback of presentations, high-resolution video and almost any other type of content. Now with additional USB-C connection to support the latest in video, audio and touch signal via a single port and even charge your device with 65W power delivery.
The high-quality commercial IPS LCD screen with a 4K UHD resolution (3840×2160), 350cd/m² and a contrast ratio of 1200:1 provide vibrant, detailed and high-quality images from anywhere in the class or meeting room. The anti-glare coating drastically reduces ambient reflection in high-brightness environments without compromising the sharpness and clarity of the image. The screen has a 24/7 non-stop operating time and is equipped with an all-metal bezel, 3mm thick hardened glass to ensure robust durability in high-use environments such as classrooms or meeting rooms.
Share, stream and edit content from any device directly on screen and transform your team meetings or lessons into an easy, fast and seamless interactive session with the included WiFi module (OWM002), the ScreenSharePro and EShare app.
| Display | |
|---|---|
| Screen glass thickness | 3 mm |
| Working area | 1895 x 1066 mm |
| Horizontal scan range | 30 – 80 kHz |
| Pixel pitch | 0.4935 x 0.4935 mm |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Number of simultaneous touchpoints | 20 |
| Touchscreen type | Infrared |
| Touch technology | Multi-touch |
| Touchscreen | Yes |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 3500:1 |
| Panel type | IPS |
| HD type | 4K Ultra HD |
| Display resolution | 3840 x 2160 pixels |
| Display number of colours | 1.07 billion colours |
| Display brightness | 400 cd/m² |
| Display diagonal | 2.18 m (86″) |
| Computer system | |
|---|---|
| Graphics card | Mali-G52 |
| RAM capacity | 4 GB |
| Maximum internal memory | 32 GB |
| Processor cores | 4 |
| Processor architecture | ARM Cortex-A73 |
| Built-in processor | Yes |
| Operating system installed | Android |
| Audio | |
|---|---|
| Number of built-in speakers | 2 |
| Built-in speaker(s) | Yes |
| Network | |
|---|---|
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI output ports quantity | 1 |
| HDMI version | 2.0 |
| HDMI ports quantity | 4 |
| HDCP | Yes |
| Interface | USB |
| Ergonomics | |
|---|---|
| Mean time between failures (MTBF) | 50000 h |
| Panel mounting interface | 800 x 600 mm |
| VESA mounting | Yes |
| Product colour | Black |
| Power | |
|---|---|
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power consumption (off) | 0.5 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 390 W |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 – 60 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 64.4 kg |
| Height | 1159 mm |
| Depth | 86 mm |
| Width | 1957 mm |
| Packaging data | |
|---|---|
| Package weight | 84.3 kg |
| Package height | 1278 mm |
| Package depth | 270 mm |
| Package width | 2102 mm |
| Packaging content | |
|---|---|
| Remote control included | Yes |
| Mounting kit | Yes |
| Cables included | AC, HDMI, USB, USB Type-C |
